36 10 715 Checking rim for face and radial runout

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Check front or back wheel for face and radial runout. Refer to 36 10 209 CHECKING FRONT AND REAR WHEEL FOR FACE AND RADIAL RUNOUT .

Pull tire off rim.

Remove fitted balancing weights.

Remove dirt from rim well and rim flange.

Mount disc wheel in balancing machine.

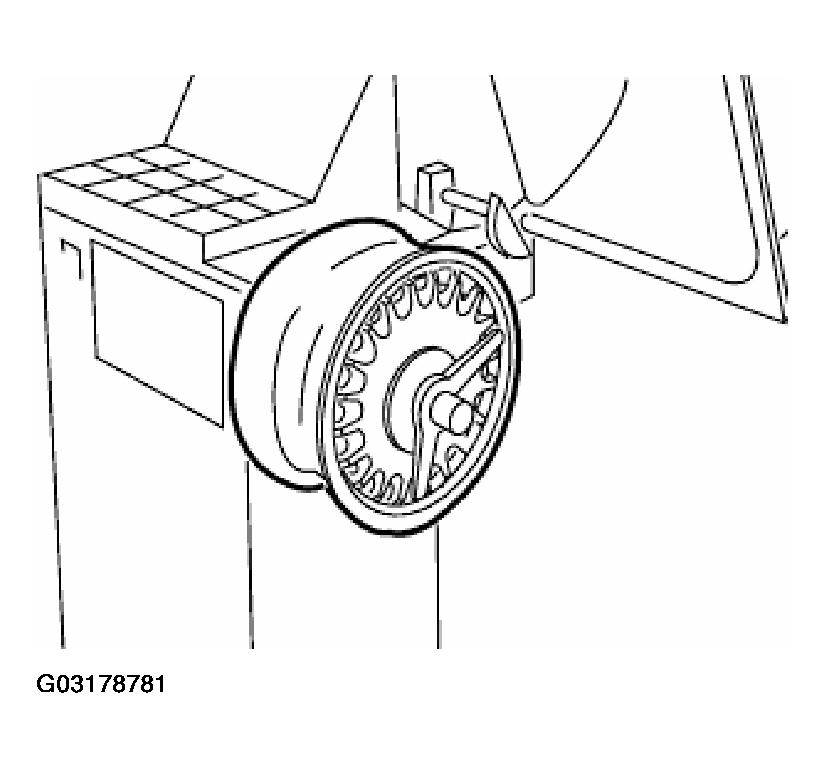

Fig 1: Mounting Disc Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel center supplied with corresponding balancing machine.

Basic flange.
Center.
Type flange.
Clamping nut.

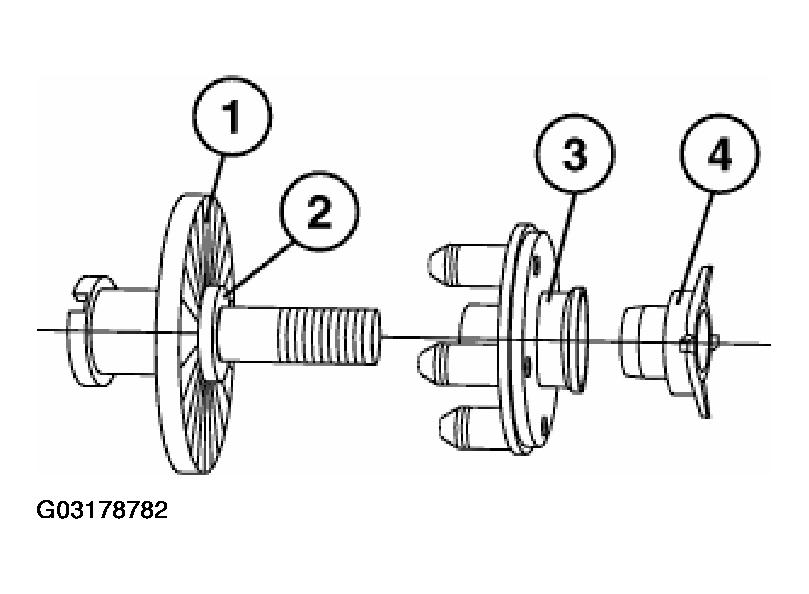

Fig 2: Identifying Centering Elements Of Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

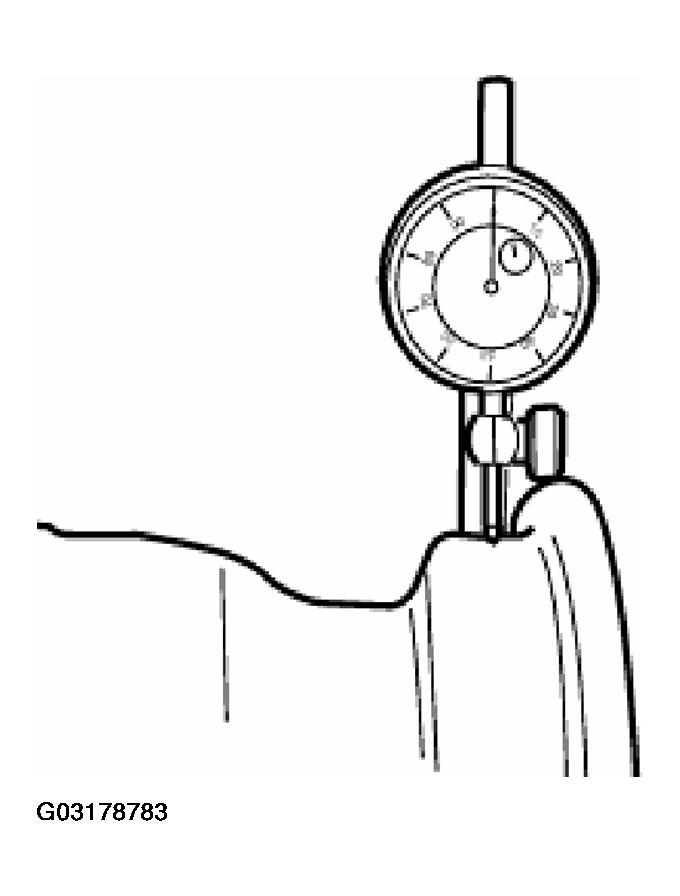

Fig 3: Placing Dial Gauge Sensor On Rim Shoulder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn wheel by hand and measure maximum radial runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

Position sensor on rim flange.

Turn wheel by hand and measure maximum lateral runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

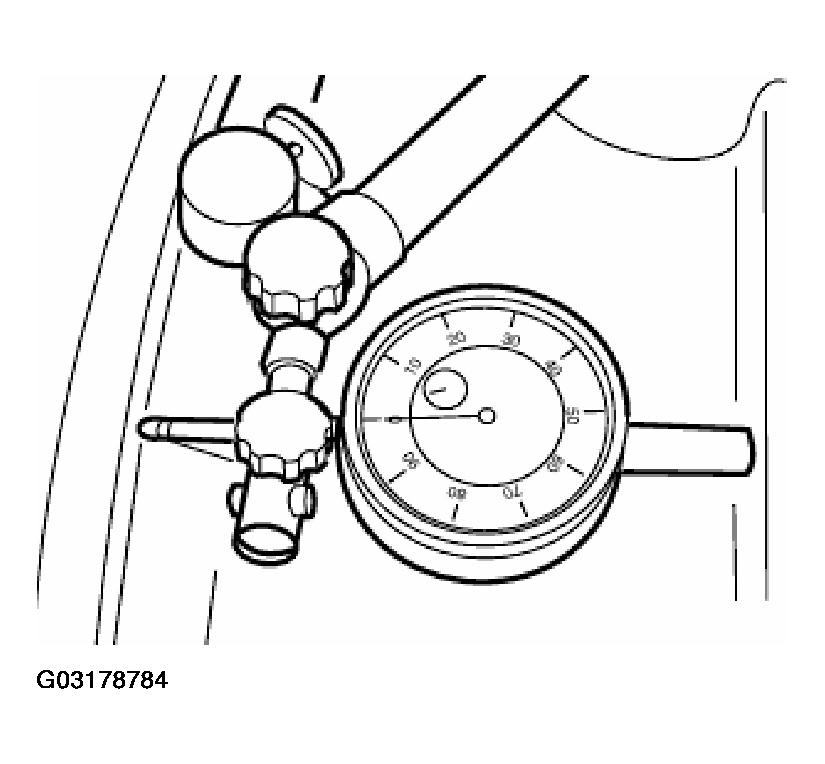

Fig 4: View Of Dial Gauge Vertical To Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Avoid transformation errors during subsequent installation tasks. Refer to 36 10 508 STATIONARY WHEEL BALANCING (WHEEL REMOVED) .
