36 10 058 Electronic balancing of left or right rear wheel (finish balancer)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always balance wheels in a stationary state prior to electronic balancing, refer to 36 10 508 STATIONARY WHEEL BALANCING (WHEEL REMOVED) .

CAUTION: Balancing should always be carried out on a solid surface (concrete floor without basement).

If during finishing one wheel a display value in excess of 15 g appears, possible causes (e.g. imprecise stationary balancing, centering etc.) must be traced and remedied before finishing and the finished wheels must then be checked again.

Apply balancing gauge on trailing arm as close as possible to wheel.

Use a suitable take-up pivot or additional pivot.

Apply a trolley jack underneath final drive with light pressure to decouple oscillation from final drive.

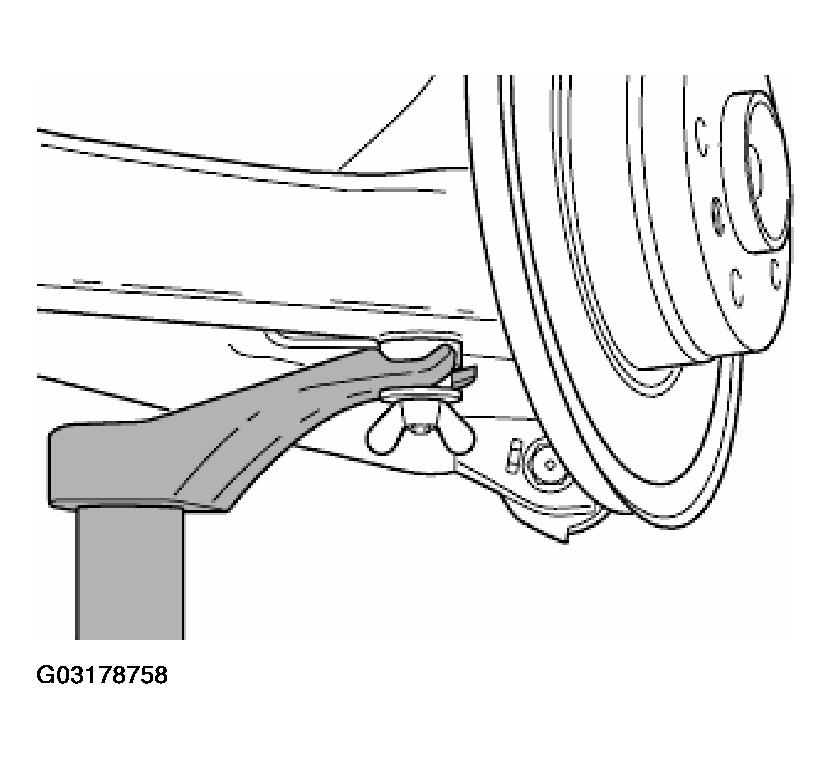

Fig 1: Identifying Take-Up Pivot

Courtesy of BMW OF NORTH AMERICA, INC.

Make a chalk mark on side of tire opposite valve.

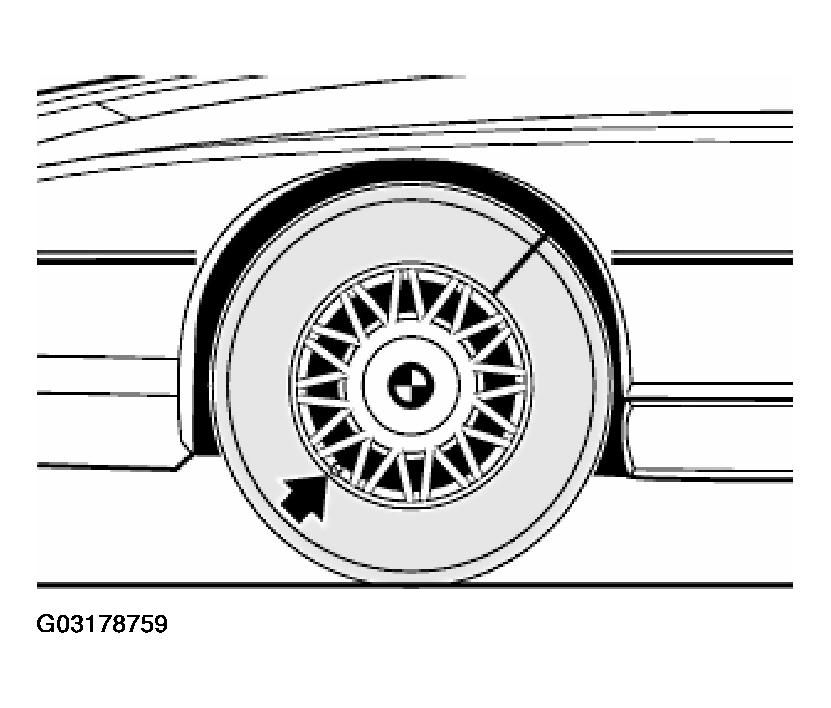

Fig 2: Placing Chalk Mark On Side Of Tire Opposite Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Check whether rear wheels can be turned easily.

Connect wires for test sensor.

CAUTION: Balance wheel according to instructions supplied with balancing machine.

Balancing is carried out with engine power at approx. 100 km/h.

This requires a smooth-running engine without misfiring, closed doors, engine bonnet and luggage-compartment lid as well as a driver sitting quietly in car.

Exhaust-gas extraction hoses must not touch tail panel.
