17 11 000 Removing and installing radiator (Z3/M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of scalding! Open cap on expansion tank only after engine has cooled down.

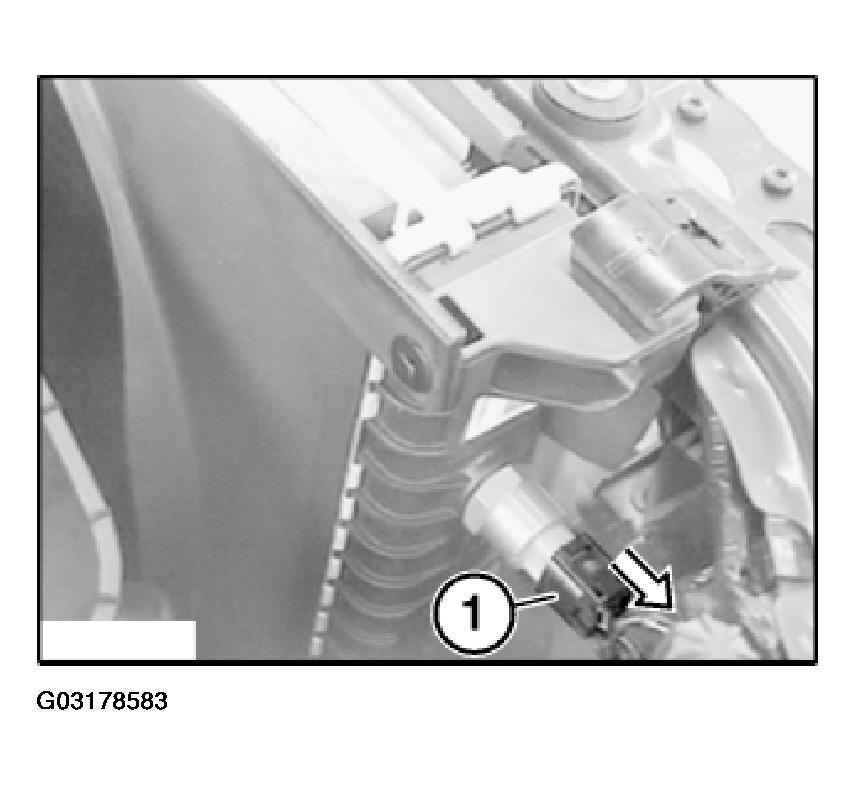

Unlock plug and detach from temperature switch.

Fig 1: Detaching Plug From Temperature Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Drain off coolant. Refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (Z3 M54) .

Follow instructions for working on cooling system. Refer to 17 00 ...INSTRUCTIONS FOR WORKING ON COOLING SYSTEM. .

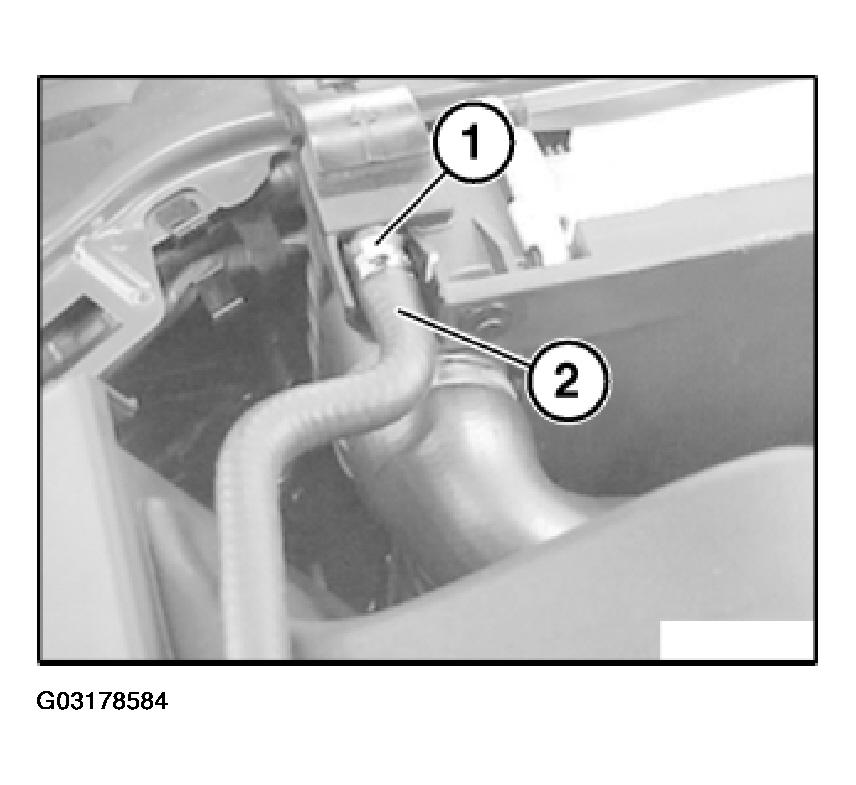

Release retaining clip (1) and detach vent hose (2).

Fig 2: Detaching Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

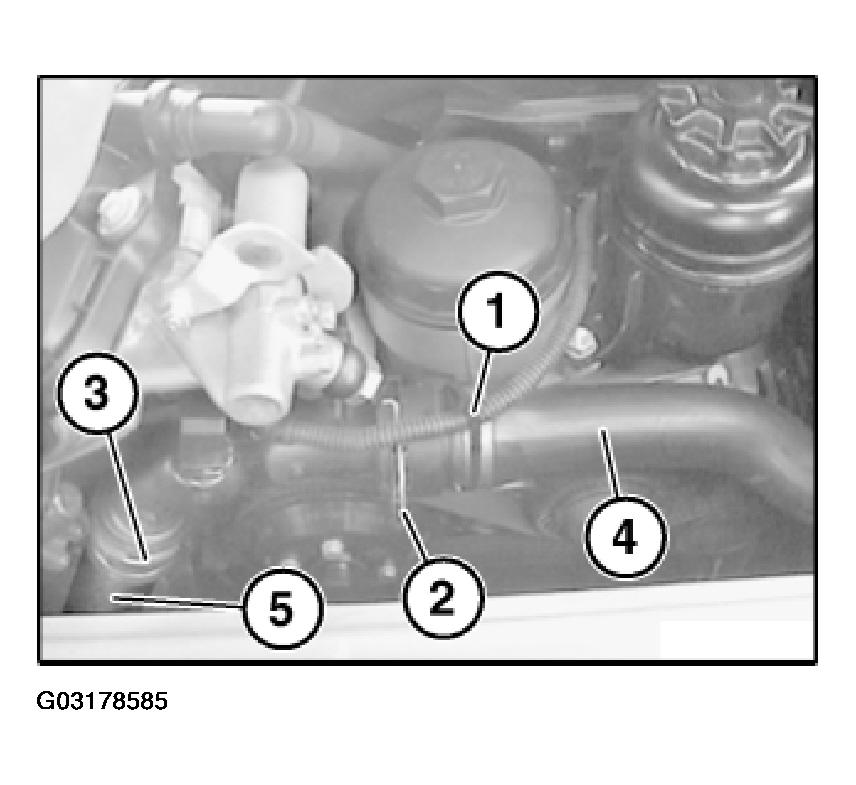

Cut off hose connector (1).

Release clips on coolant hoses (2) and (3).

Detach top coolant hose (4) and bottom coolant hose (5).

Fig 3: Detaching Top Coolant Hose And Bottom Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

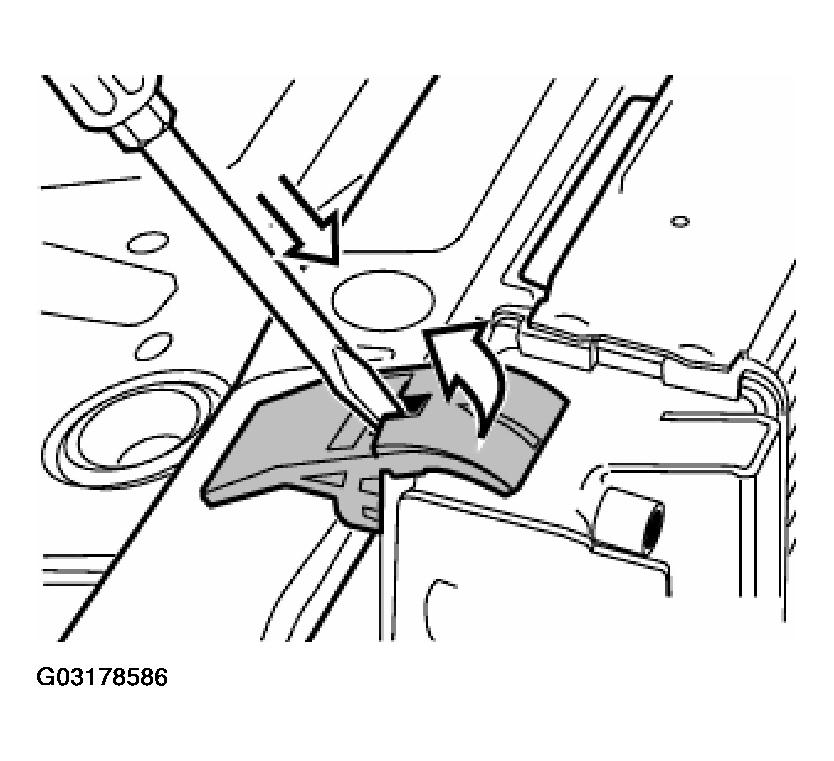

Release both retainers on radiator.

Fig 4: Removing Retainers From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

On vehicles with Automatic Transmission .

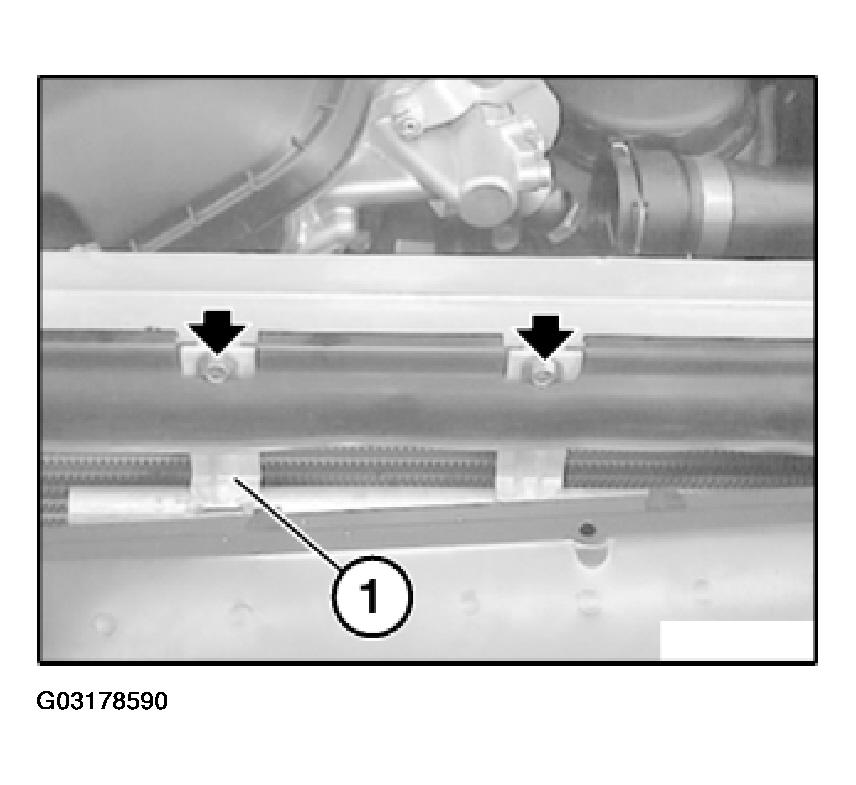

Release retaining screws on radiator panel at bottom.

Remove cover.

NOTE: Illustration shows the left side only.

Fig 5: Removing Retaining Screws On Radiator Panel At Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

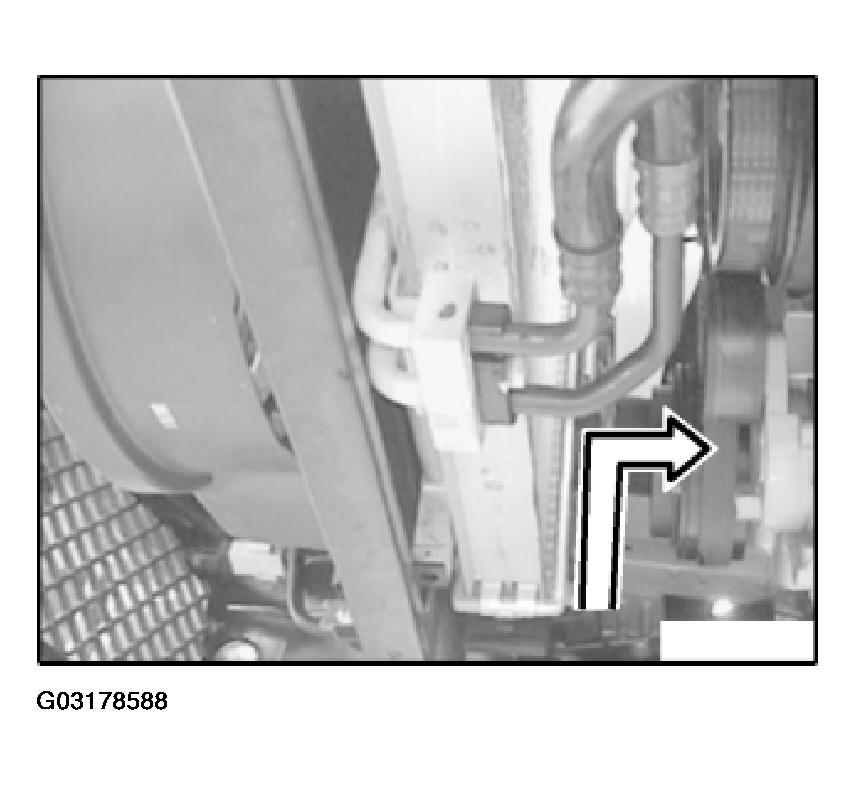

Slide radiator upwards and pull towards rear out of rests.

Fig 6: Sliding Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

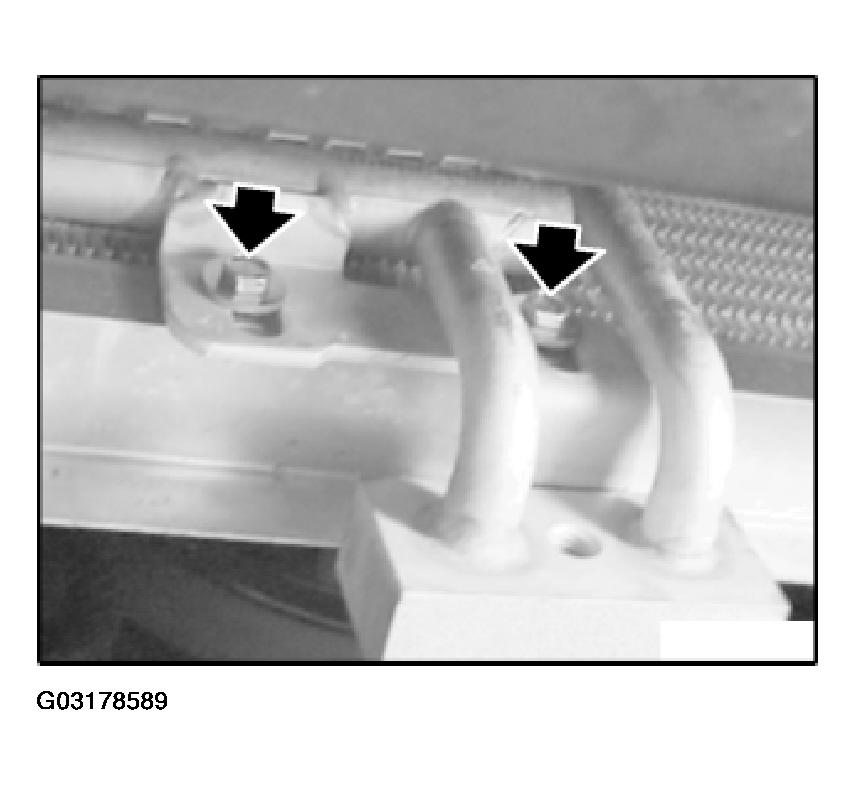

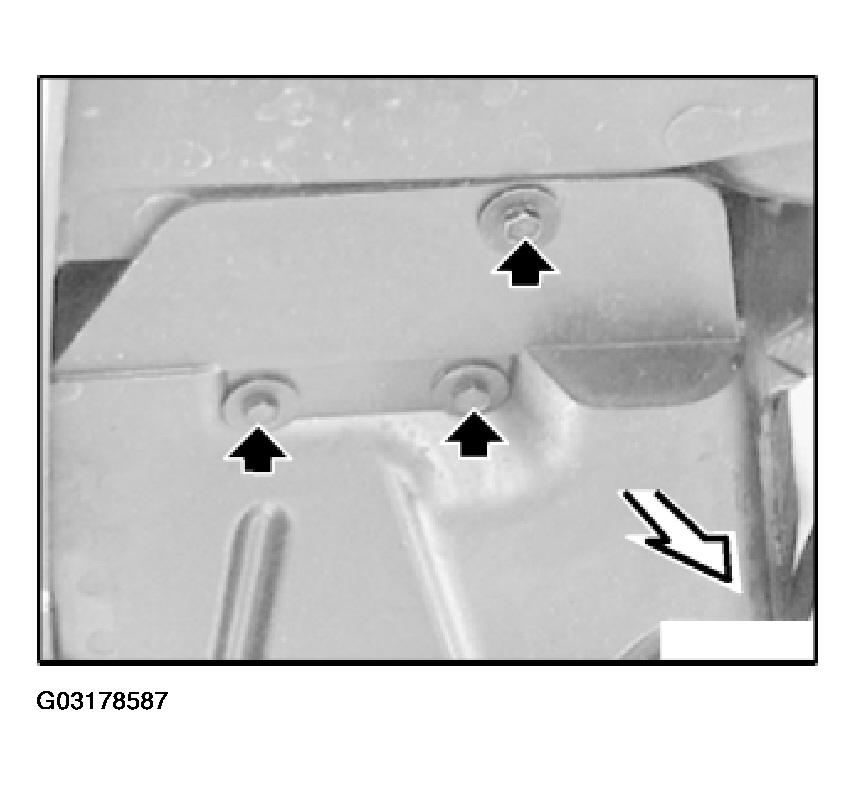

Release screws on oil cooler for automatic transmission at bottom.

Fig 7: Removing Screws On Oil Cooler For Automatic Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on oil cooler for automatic transmission at top.

Remove oil cooler (1).

Fig 8: Removing Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radiator and remove.

Installation:

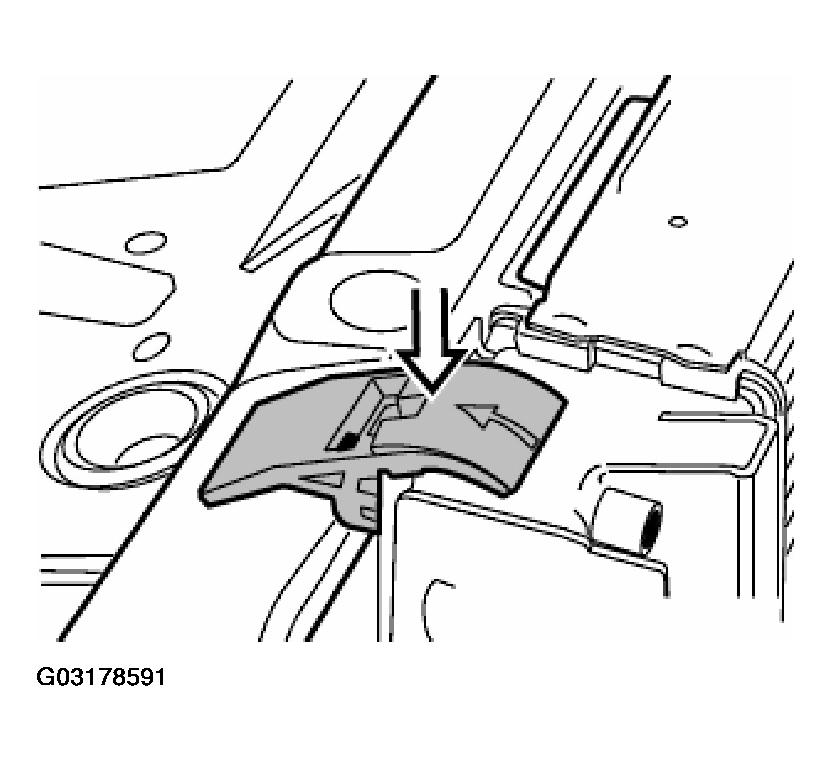

Attach retaining lugs to radiator on left and right and press forcefully downwards.

Fig 9: Attaching Retaining Lugs To Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Catch must be heard to engage several times.

Installation:

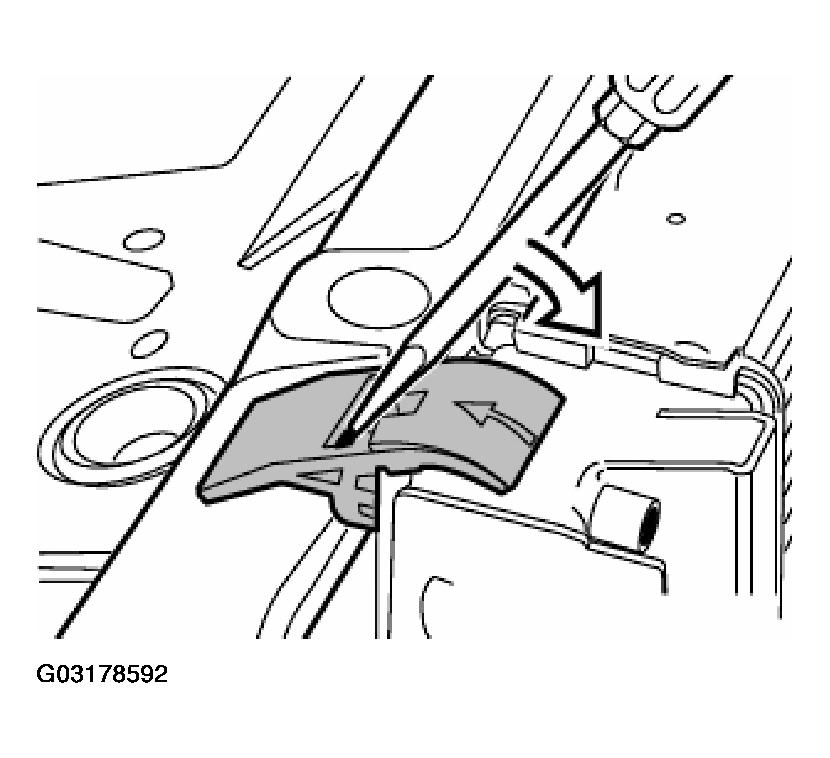

Place a screwdriver underneath lug of retainers and retighten.

Fig 10: Placing Screwdriver Underneath Lug Of Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

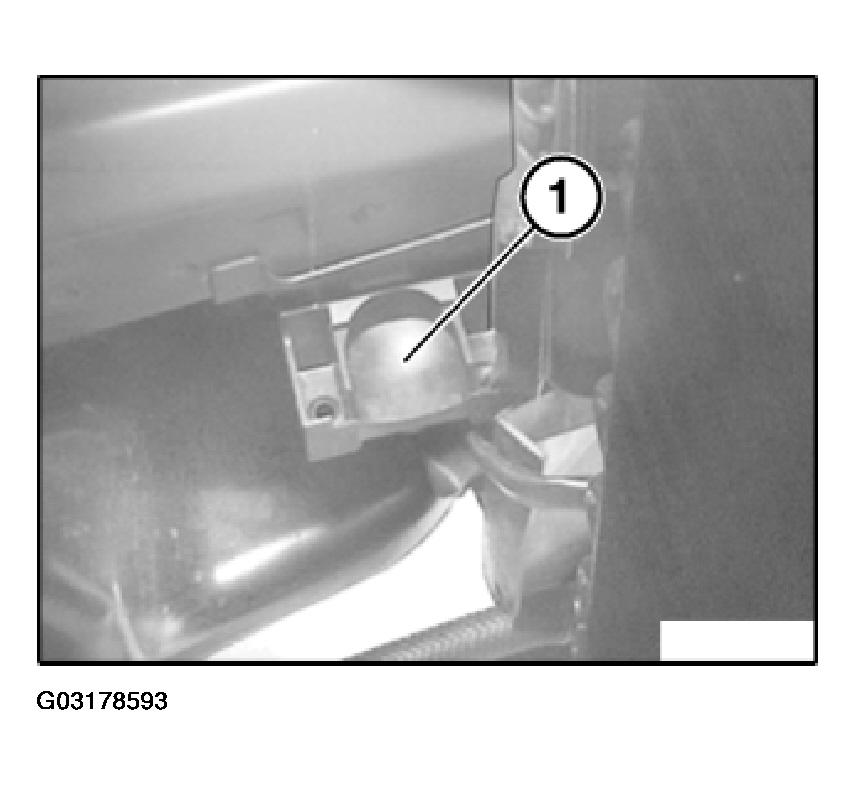

Position radiator on supports (1).

Fig 11: Positioning Radiator On Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

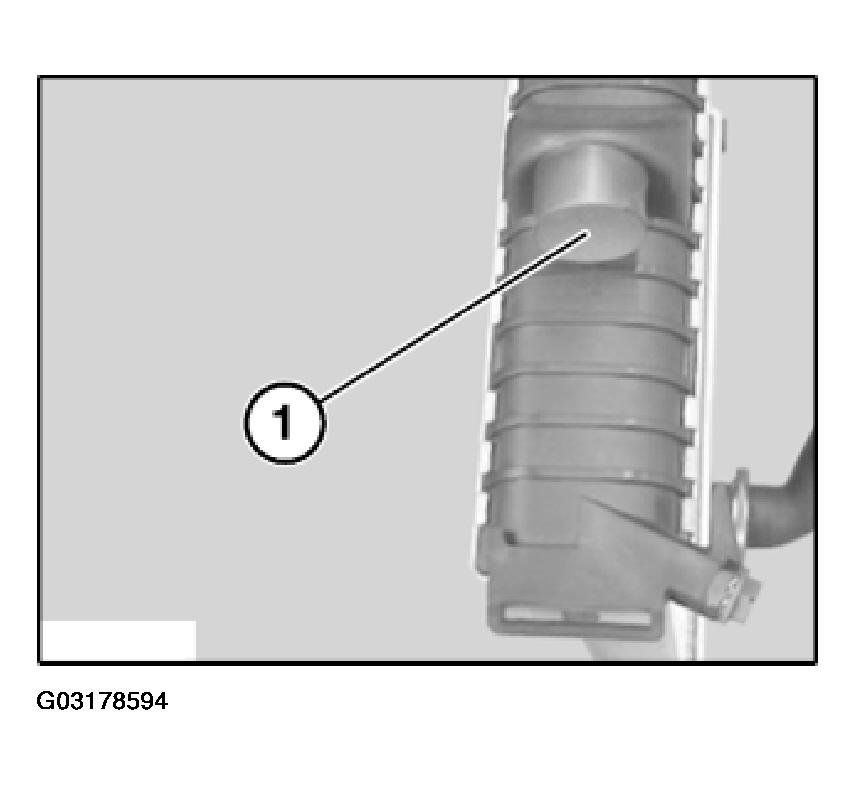

Pay attention to rubber mounts (1) on left and right.

Fig 12: Identifying Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
