17 11 031 Replacing fan cowl (Z3 M54)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan impeller with fan clutch from water pump. Refer to 11 52 020 FAN .

Lever out expansion rivets on left and right from fan cowl.

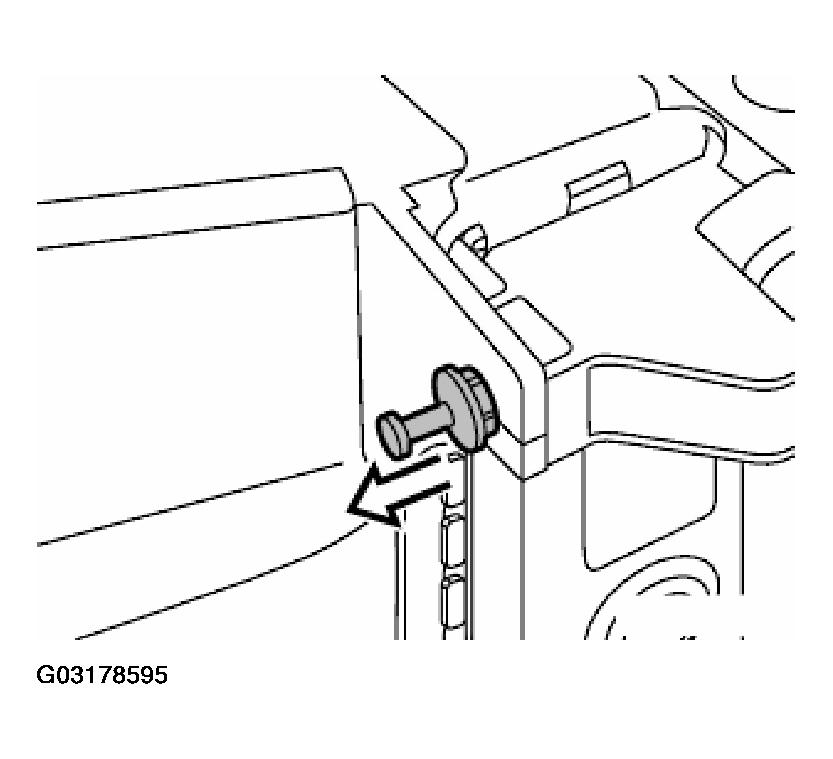

Fig 1: Removing Expansion Rivets From Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out fan cowl and fan impeller together.

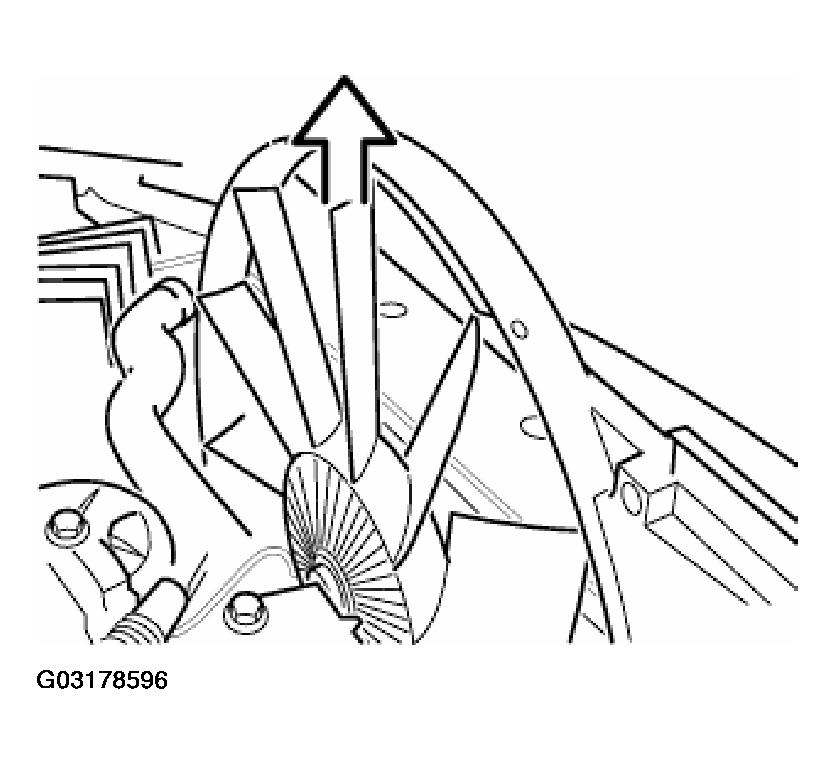

Fig 2: Removing Fan Cowl And Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach bracket (1) of fan cowl in retaining lugs at bottom and sides.

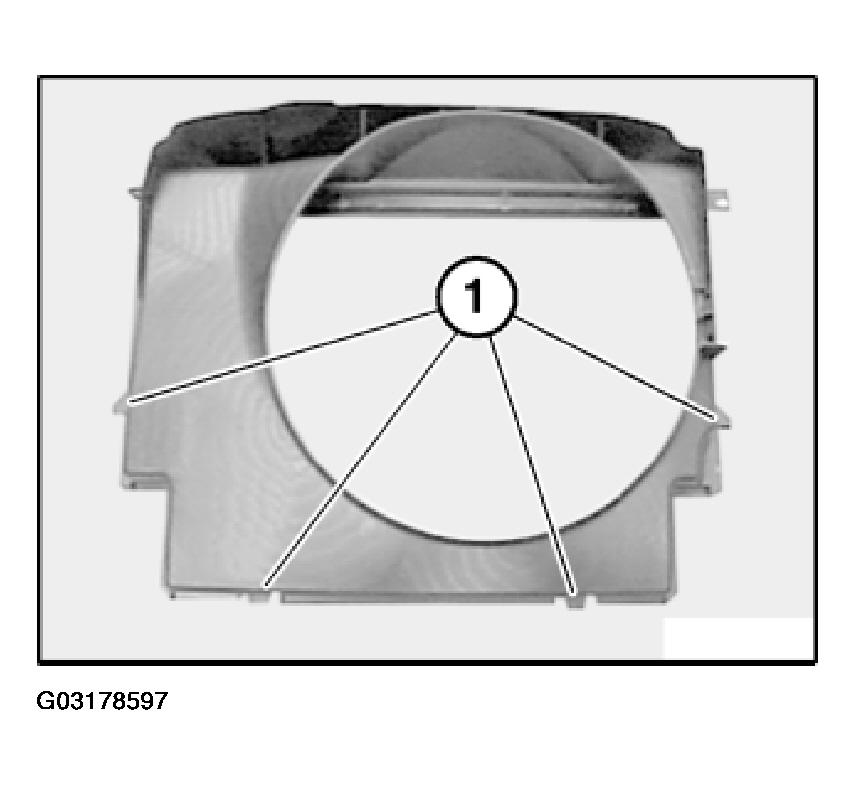

Fig 3: Attaching Bracket Of Fan Cowl In Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
