17 40 000 Removing and installing/replacing complete auxiliary fan

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover from top of radiator.

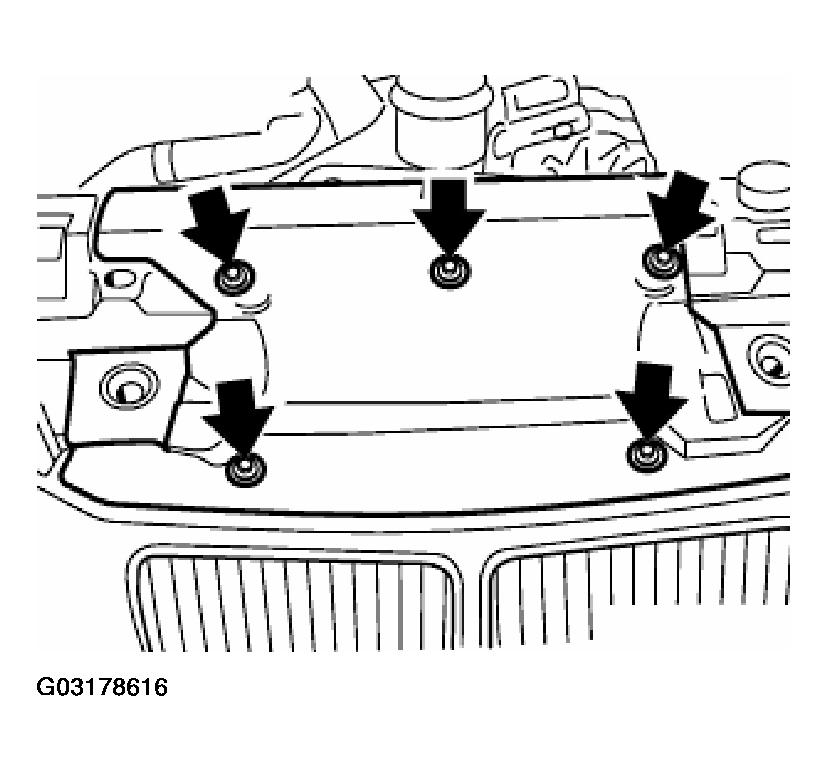

Fig 1: Removing Cover From Top Of Radiator

G03178616

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Unfasten screws (1...3) from fan carrier.

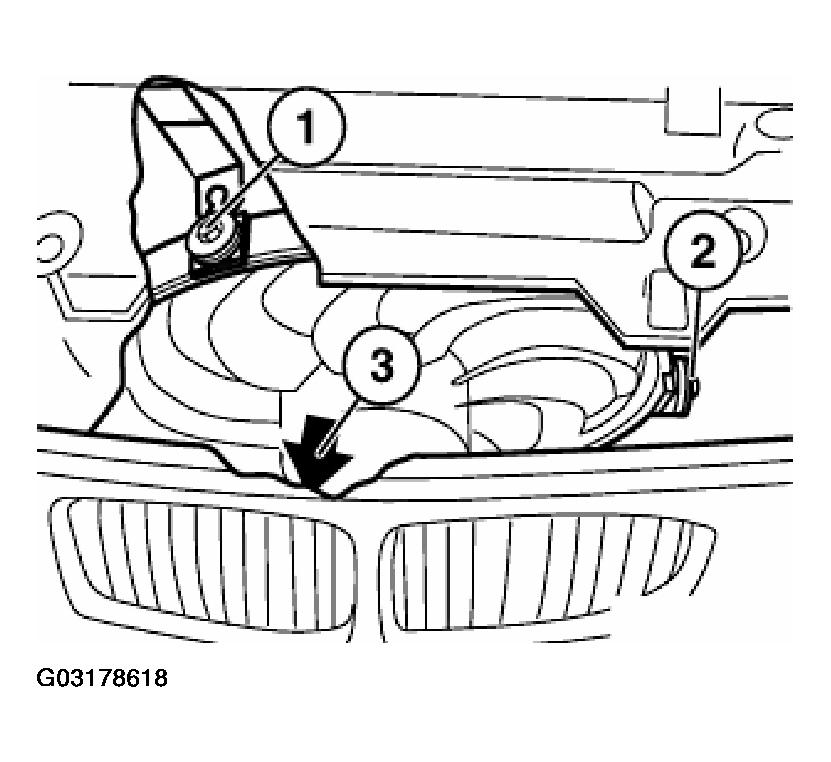

Fig 2: Removing Screws From Fan Carrier

G03178618

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

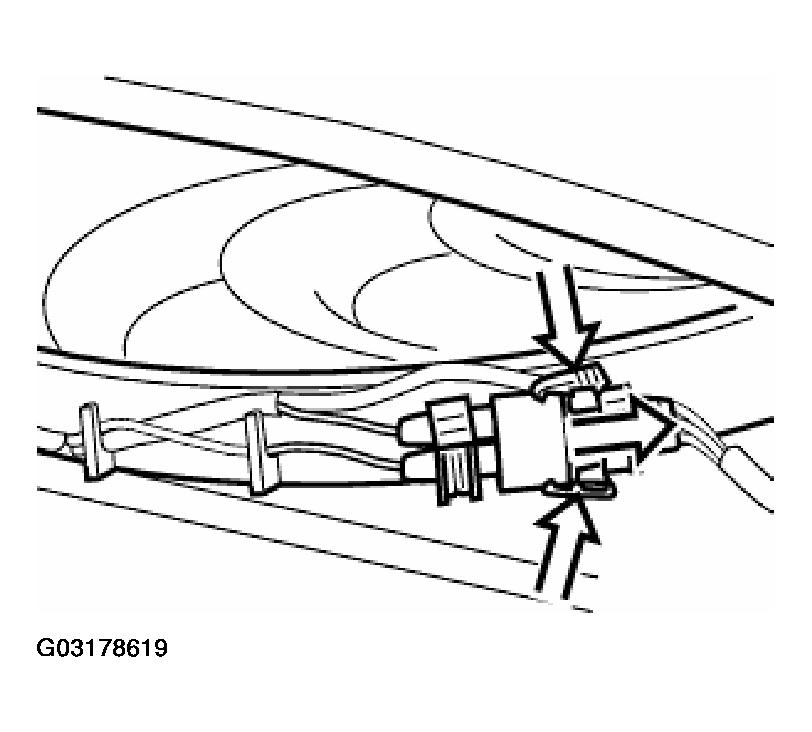

Fig 3: Disconnecting Connector

G03178619

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan bracket and fan from retaining shoe and lift out.

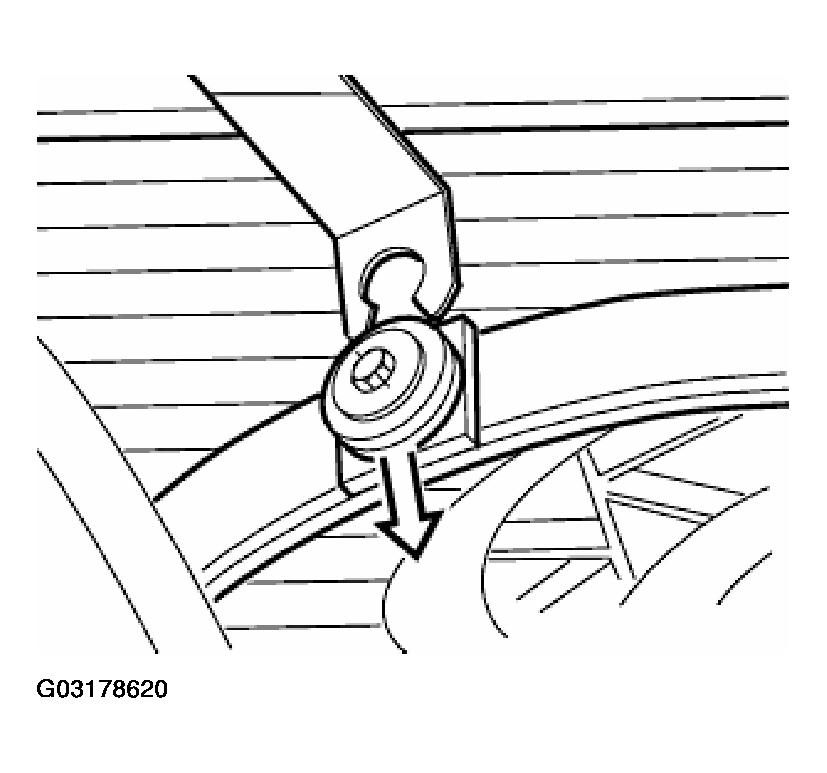

Fig 4: Removing Fan Bracket And Fan From Retaining Shoe

G03178620

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Remove complete front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Disconnect connector.

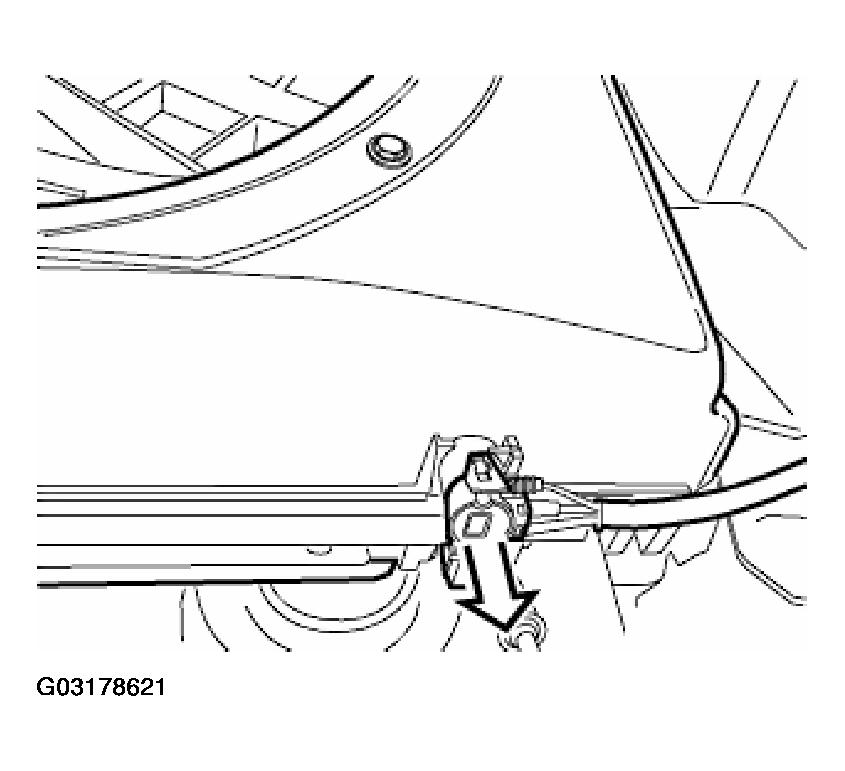

Fig 5: Disconnecting Connector

G03178621

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws from fan carrier.

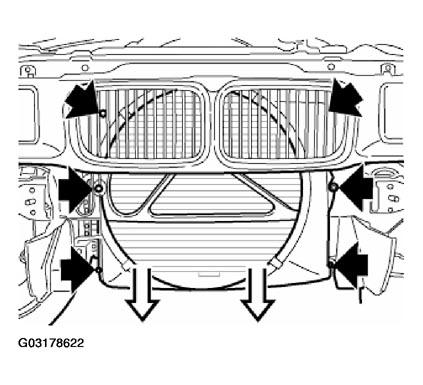

Fig 6: Removing Screws From Fan Carrier

G03178622

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan carrier from underside.
