11 34 560 Replacing all valve stem seals (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

11 1 200
11 1 480
11 1 960

(Cylinder head removed)

Preliminary tasks are described in disassembling and assembling cylinder head. Refer to 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52 / S52 / M52TU / M54 / M56) .

Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52 / S52 / M52TU / M54 / M56) .

Remove valve stem seal with special tool 11 1 480.

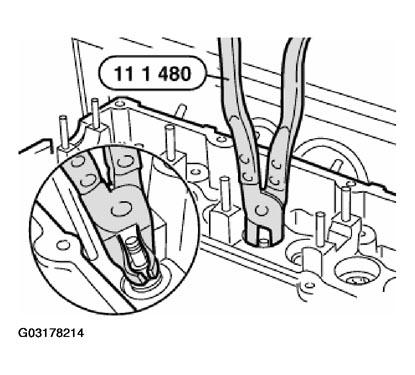

Fig 1: Removing Valve Stem Seal With Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

Coat new valve stem seal (1) with oil and install.

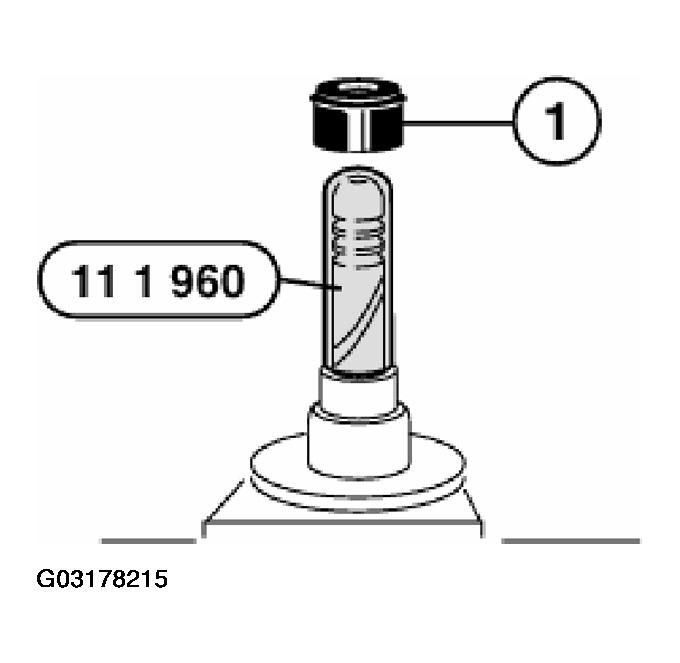

Fig 2: Identifying Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Press valve stem seal firmly home by hand with special tool 11 1 200.

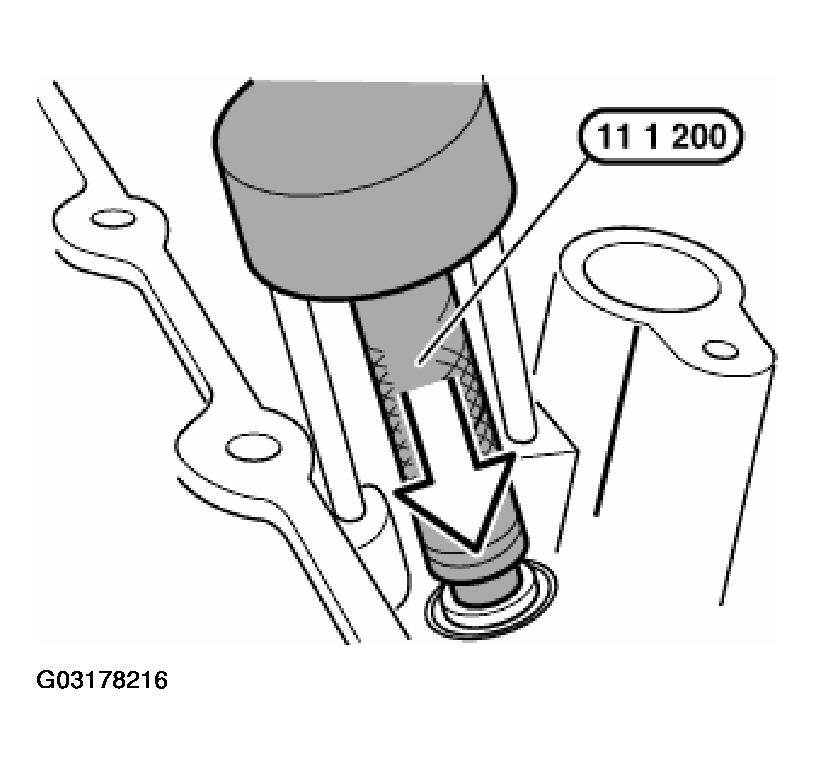

Fig 3: Pressing Valve Stem Seal With Special Tool 11 1 200

Courtesy of BMW OF NORTH AMERICA, INC.
