11 34 715 Replacing all valve springs (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

11 0 342
11 0 345
11 1 045
11 1 065
11 1 441
11 3 030
11 3 250

(Cylinder head removed)

Preliminary tasks are described in disassembling and assembling cylinder head. Refer to 11 12 503 DISASSEMBLING AND ASSEMBLING CYLINDER HEAD (M52 / S52 / M52TU / M54 / M56) .

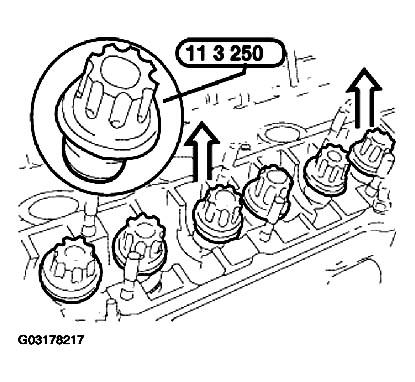

Brace bucket tappets with special tool 11 3 250.

Fig 1: Identifying Special Tool 11 3 250

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out bearing strip with bucket tappet.

Installation:

Only re-use used bucket tappets in the same tappet bore.

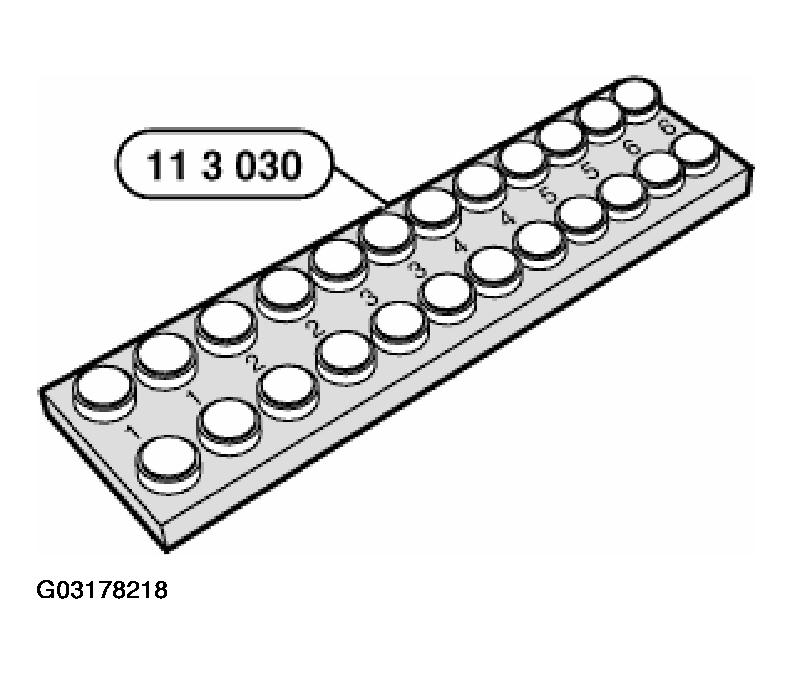

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Arranging Bucket Tappets By Cylinder And Placing On Special Tool 11 3 030

Courtesy of BMW OF NORTH AMERICA, INC.

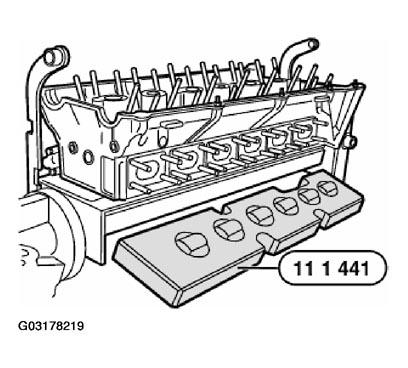

Insert special tool 11 1 441 from below in special tool 11 1 065 and secure with special tool 11 1 045.

Fig 3: Inserting Special Tool 11 1 441

Courtesy of BMW OF NORTH AMERICA, INC.

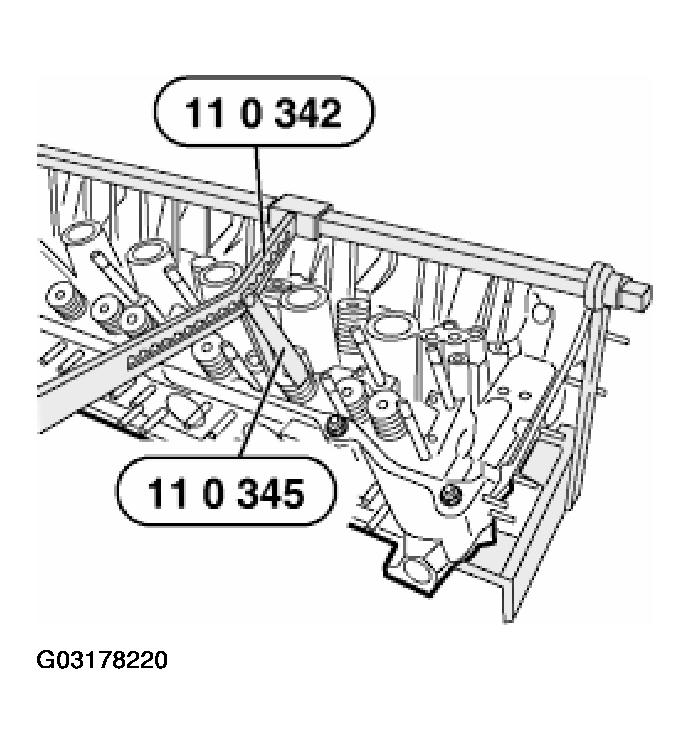

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342.

Fig 4: Aligning Special Tool 11 0 345 In Direction Of Valve Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

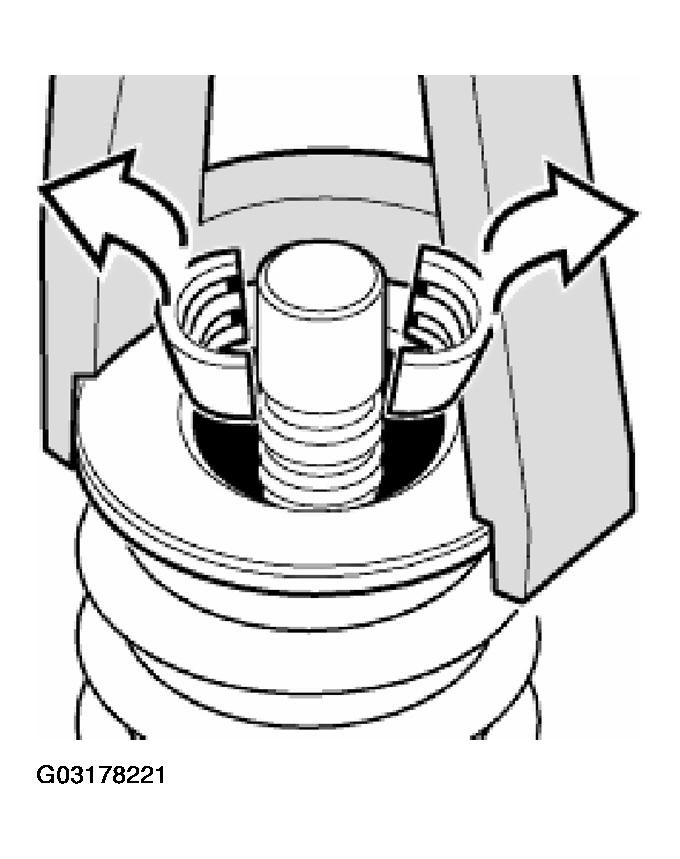

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Keys

Courtesy of BMW OF NORTH AMERICA, INC.

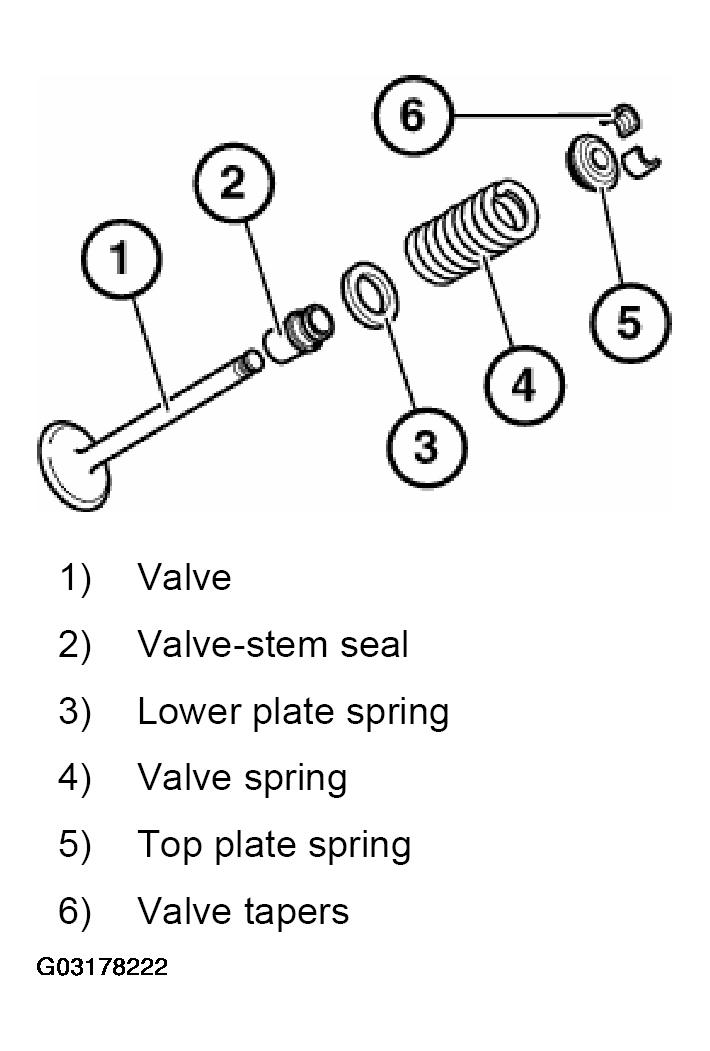

Arrangement:

Valve.
Valve-stem seal.
Lower plate spring.
Valve spring.
Top plate spring.
Valve tapers.

Fig 6: Identifying Valve Components
Courtesy of BMW OF NORTH AMERICA, INC.
