52 16 011 Removing and installing/replacing Bowden cable for rear compartment entrance aid

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove seat, refer to 52 16 000 REMOVING AND INSTALLING FRONT SEAT (SPORTS/ELECTRIC), LEFT OR RIGHT .
Remove rear panel, refer to 52 16 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/ELECTRIC) .
Remove outer cover, refer to 52 16 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .
Remove inner cover, refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL) .

Lay seat on seat surface/backrest or left seat side.

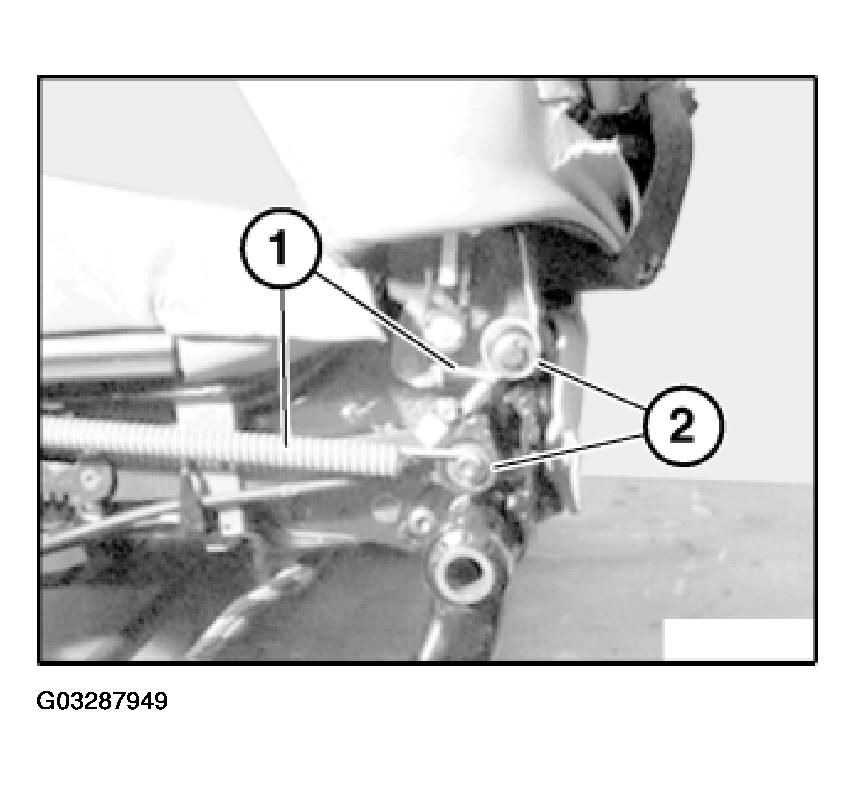

Unhook and remove springs (1).

Remove retainers (2).

Fig 1: Removing Springs And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

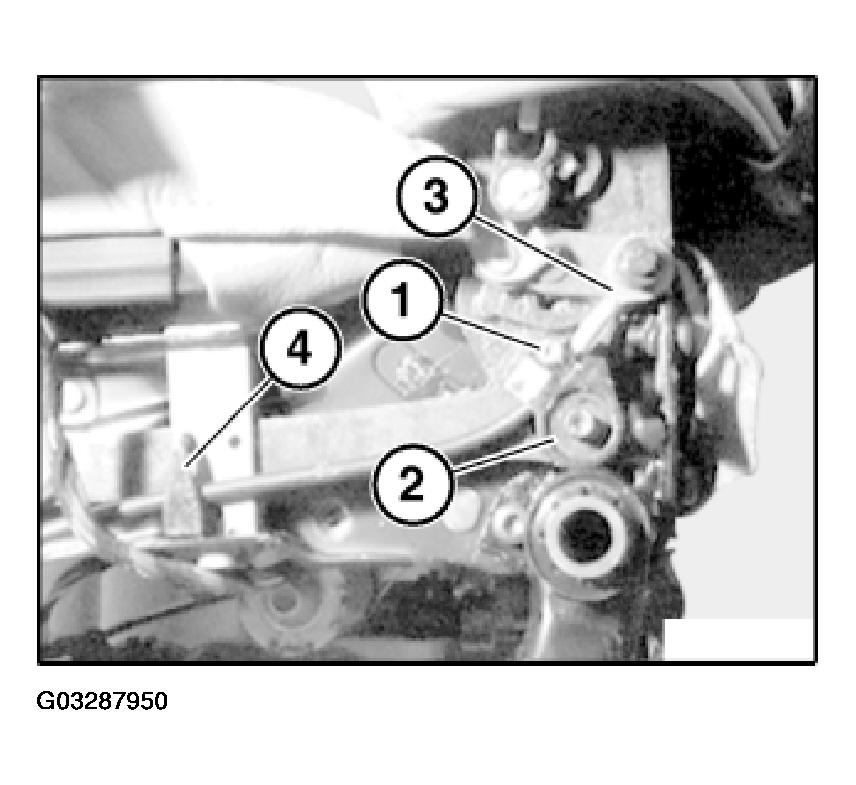

Release screw (1) of cable mount (2).

Detach cable mount (2) and cable eye (3) from shaft.

Feed cable out of holder (4).

Fig 2: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

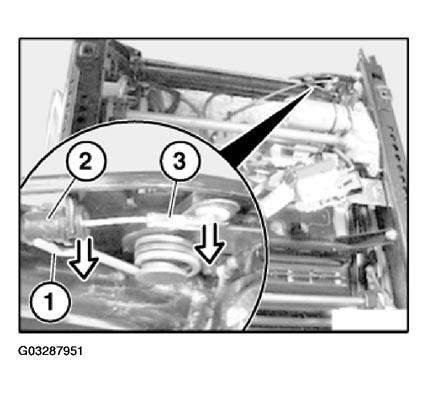

Disconnect spring (1).

Unclip sleeve (2) of Bowden cable from guide.

Feed out cable (3).

Fig 3: Removing Bowden Cable For Rear Compartment Entrance Aid

Courtesy of BMW OF NORTH AMERICA, INC.
