11 14 015 Removing and Installing/Replacing Sealing Cap for Oil Pump Chain Tensioner (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

Necessary Preliminary Tasks:

Remove FAN COWL .
Remove DRIVE BELT for Alternator.
Remove Both Drive Belt TENSIONING DEVICES (Hybrid Car).
Remove VIBRATION DAMPER .

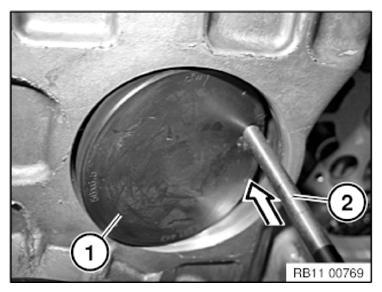

Drive Out Sealing Cap (1) with A Suitable Punch (2) In Direction of Arrow.

NOTE: The Sealing Cap Is Driven Out Diagonally During This Operation.

Fig 1: Driving-Out Sealing Cap Using Punch Tool

G09873618

Courtesy of BMW OF NORTH AMERICA, INC.

Removing Sealing Cap

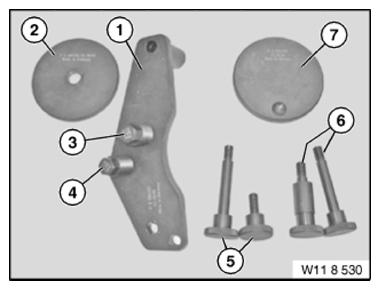

Prepare Special Tool 11 8 530 .

Remove Special Tool 11 8 533 From Special Tool 11 8 532 and 11 8 534 .

Special Tool 11 8 536 Is Not Required.

Fig 2: Removing Sealing Cap

G09873619

Courtesy of BMW OF NORTH AMERICA, INC.

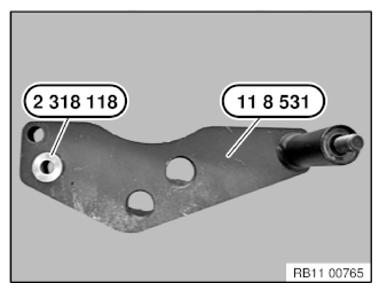

Special Tool 2 318 118 Is Magnetic.

Secure Special Tool 2 318 118 On Special Tool 11 8 531 (Refer To Fig 3).

Fig 3: Securing Special Tool 2 318 118 On Special Tool 11 8 531

G09873620

Courtesy of BMW OF NORTH AMERICA, INC.

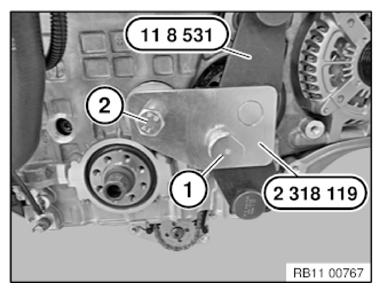

Screw Back Screw (2) On Special Tool 2 318 119 .

Install Special Tool 2 318 119 with Screw (1) On Special Tool 11 8 531 .

Fig 4: Installing Special Tool 2 318 119 with Screw On Special Tool 11 8 531

G09873621

Courtesy of BMW OF NORTH AMERICA, INC.

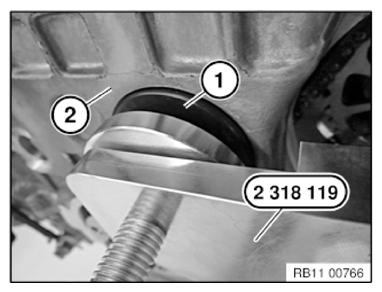

Position Sealing Cap (1) On Crankcase (2).

Fig 5: Positioning Sealing Cap On Crankcase

G09873622

Courtesy of BMW OF NORTH AMERICA, INC.

Installing Sealing Cap

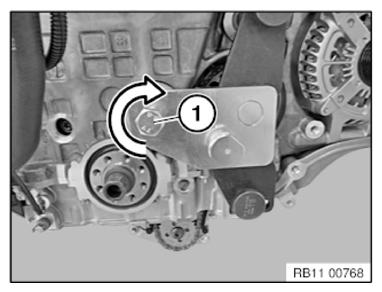

Screw In Screw (1) On Special Tool 2 318 119 Up To Limit Position.

Tightening torque 20 Nm.

Fig 6: Identifying Screw On Special Tool

G09873623

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
