11 14 010 Replacing Sealing Cap for Vacuum Pump (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

Necessary Preliminary Tasks:

Remove FAN COWL .
Remove DRIVE BELT for Alternator.
Remove Both Drive Belt TENSIONERS .

Removing Sealing Cap

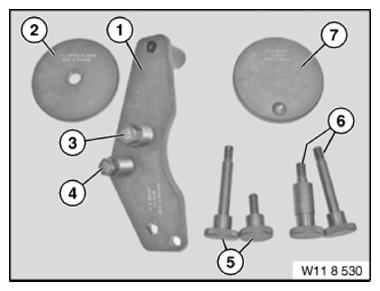

Prepare Special Tool 11 8 530 .

Remove Special Tool 11 8 533 From Special Tool 11 8 532 .

Install Special Tool 11 8 534 .

Special Tool 11 8 536 Is Not Required.

Fig 1: Removing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

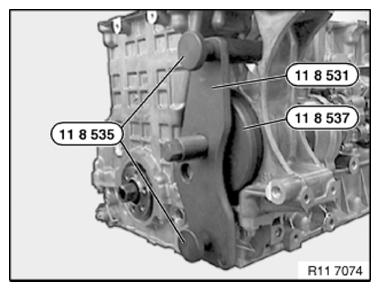

Attach Special Tool 11 8 531 To Long Special Tool 11 8 535 .

Short Special Tool 11 8 535 (Short); A 6 Mm Thick M10 Washer Must Be Placed Underneath Between Crankcase and Special Tool 11 8 531 .

NOTE: for Purposes of Clarity, Graphics Show Alternator and Power Steering Pump Removed.

Fig 2: Attaching Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

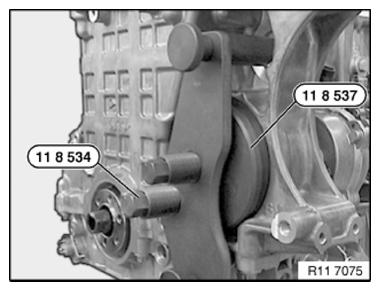

Special Tool 11 8 537 Must Be Positioned Manually On Sealing Cap.

Screw In Special Tool 11 8 534 .

NOTE: The Sealing Cap Is Pressed Out Diagonally During This Operation

Fig 3: Positioning/Installing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing Sealing Cap

Prepare Special Tool 11 8 530 .

Remove Special Tool 11 8 534 From Special Tool.

Install Special Tools 11 8 533 and 11 8 532 .

Fig 4: Removing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

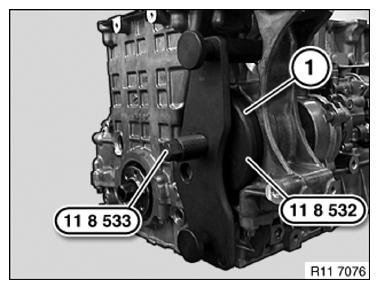

Screw In New Sealing Cap (1) with Special Tools 11 8 532 and 11 8 533 Until Flush with Crankcase Upper Part.

Fig 5: Installing Sealing Cap Using Special Tools 11 8 532 and 11 8 533

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
