11 34 715 Replacing all valve springs (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove CYLINDER HEAD .
Remove EXHAUST CAMSHAFT .
Remove INTERMEDIATE LEVER .
Remove INTAKE CAMSHAFT .
Remove ROCKER ARM .

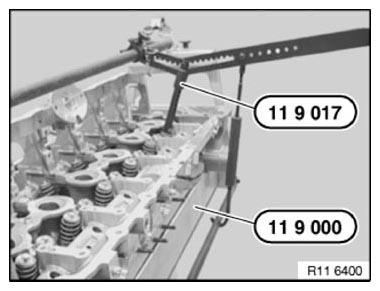

Place cylinder head on special tool 11 9 000 .

Press down inlet valves with special tool 11 9 017 .

Press down outlet valves with special tool 11 0 346 .

Fig 1: Pressing-Down Inlet Valves

Courtesy of BMW OF NORTH AMERICA, INC.

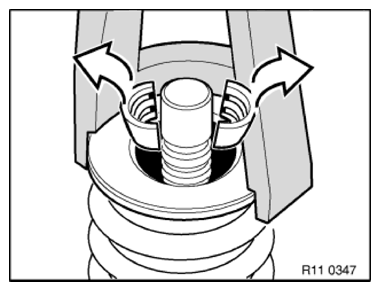

Remove valve keys with a magnet.

Remove valve spring with spring cups.

If the individual components are to be reused, they must be placed in neat order in special tool 11 4 480 .

Fig 2: Removing Valve Spring With Spring Cups

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Incorrect installation possible.
Incorrect installation will result in valve spring breakage.
Risk of mixing up the valve springs for the inlet and exhaust valves.

The valve spring is color-coded (1) at the lower end.

Install the valve spring so that the larger diameter points to the lower spring cup.

Fig 3: Identifying Color Marking On Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

Valve
Valve stem seal with lower spring cup
Valve spring
Upper spring cup
Valve keys

Fig 4: Exploded View Of Intake Valve
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
