11 13 010 Removing and installing/replacing upper oil sump section (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240 .
11 4 470 .

Necessary preliminary work:

Drain off ENGINE OIL .
LOWERING FRONT AXLE .
Remove LOWER OIL SUMP SECTION .
Remove OIL PUMP .
Release supply/return lines on oil filter
Release holders of supply/return lines on oil sump

Detach plug from oil pressure switch

Unclip wiring harness on oil sump

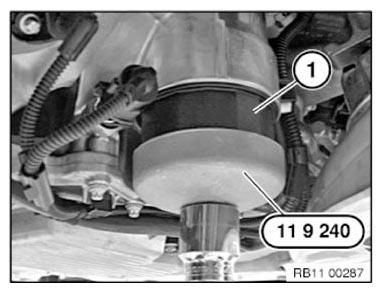

Release oil filter cover (1) with special tool 11 9 240 .

Tightening torque 11 42 1AZ .

Graphic without reinforcement plate.

Fig 1: Releasing Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

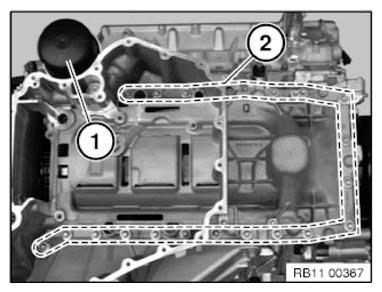

Remove oil filter (1).

Release bolts in area of line (2).

Tightening torque 11 13 2AZ .

Fig 2: Identifying Oil Filter And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

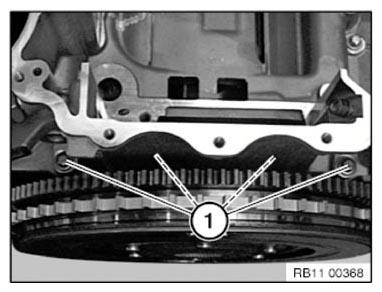

Release screws (1).

Release 4 bolts on transmission side.

Graphic without transmission.

Installation note:

Clean gasket debris from sealing surfaces with special tool 11 4 470 .

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Fig 3: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
