11 13 020 Removing and installing/replacing lower oil sump section (S63)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Release OIL DRAIN PLUG and drain engine oil.
Unlock plug connection on oil level sensor and disconnect.

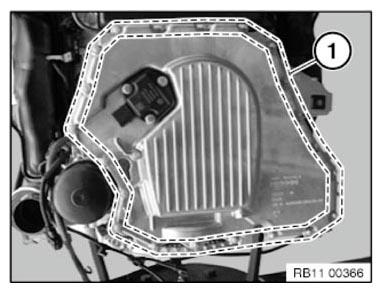

Release screws (1) along line.
Tightening torque 11 13 3AZ .
Remove lower oil sump section.
Installation note:
Clean sealing surfaces.
Replace gasket.
NOTE:
When replacing oil sump bottom section:
- Remount the oil condition sensor.
- Replace the sealing ring of the oil condition sensor.
