11 15 015 Remove/install/replace engine ventilation line (N63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove BOTH INTAKE SILENCER HOUSINGS .
Release the CONNECTION LINE ON THE VENTILATION LINE .

Unclip the connector (1) for the oxygen sensors from the holder.

Unlock and disconnect the connector (1) for the oxygen sensors.

Fig 1: Identifying Connectors For Oxygen Sensors

G09919855

Courtesy of BMW OF NORTH AMERICA, INC.

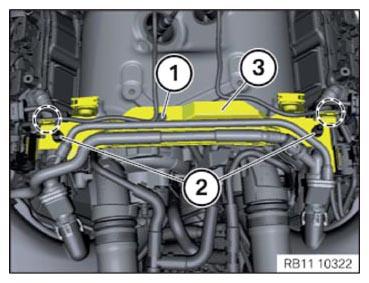

Release screw (1).

Release both screw bosses (2).

Feed out carrier plate (3).

Unclip the cable for the oxygen sensors at the marked area.

Fig 2: Identifying Carrier Plate, Screw, And Screw Bosses

G09919856

Courtesy of BMW OF NORTH AMERICA, INC.

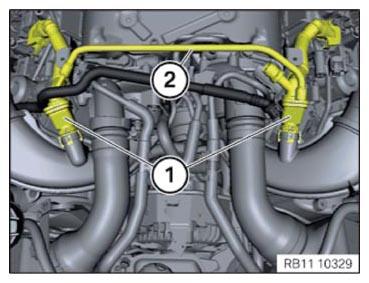

NOTE: Both ventilation lines (1) and the purge air line (2) form a single unit and can only be removed or replaced together.

Fig 3: Identifying Ventilation Lines And Purge Air Line

G09919857

Courtesy of BMW OF NORTH AMERICA, INC.

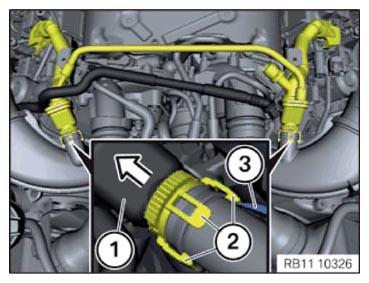

Use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Remove the ventilation line (1) at the same time.

Fig 4: Unlocking Latch Mechanisms And Removing Ventilation Line

G09919858

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation describes the left side. The right side is identical to the left side.

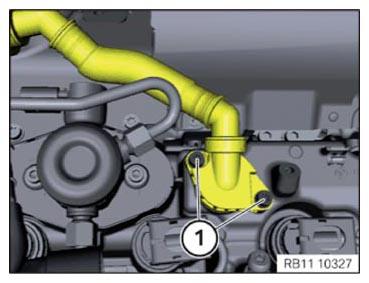

Release screws (1).

Tightening torque 11 12 10AZ .

Fig 5: Identifying Screws

G09919859

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation describes the left side. The right side is identical to the left side.

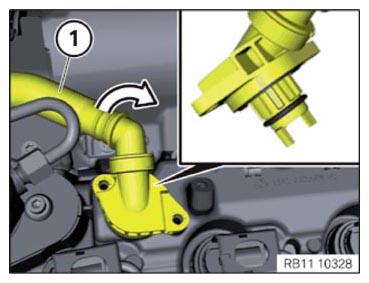

IMPORTANT: This is a bayonet fitting!

Turn the ventilation line (1) in direction of arrow and afterwards pull it off from the cylinder head cover.

Fig 6: Turning Ventilation Line

G09919860

Courtesy of BMW OF NORTH AMERICA, INC.
