11 15 016 Removing and installing/replacing engine ventilation connecting line (N63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RIGHT INTAKE SILENCER HOUSING .

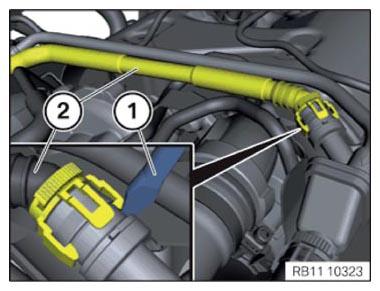

IMPORTANT: Increased risk of line (2) breakage

Use a screwdriver (1) to unlock all the latch mechanisms one after the other.

Pull off the connection line (2) at the same time.

Fig 1: Unlocking Latch Mechanisms And Pulling Off Connection Line

G09919861

Courtesy of BMW OF NORTH AMERICA, INC.

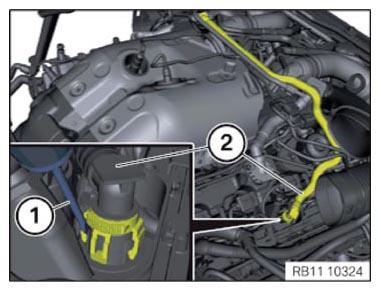

IMPORTANT: Increased risk of line (2) breakage

Use a screwdriver (1) to unlock all the latch mechanisms one after the other.

Pull off the connection line (2) at the same time.

Feed out the connection line (2) and remove.

Fig 2: Unlocking Latch Mechanisms And Pulling Off Connection Line

G09919862

Courtesy of BMW OF NORTH AMERICA, INC.

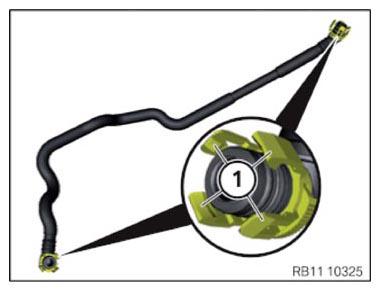

Installation note:

No catches (1) are permitted to be damaged or missing.

If there is a faulty latch mechanism (1), the line must be replaced.

Fig 3: Identifying Latch Mechanism Catches

G09919863

Courtesy of BMW OF NORTH AMERICA, INC.
