11 31 052 Replacing both timing chains (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove ENGINE .
Mount engine on ASSEMBLY STAND .
Remove CYLINDER HEAD .
Remove OIL SUMP .
Remove GEAR CASE .

Secure crankshaft with special tool 11 4 320 for bracing.

IMPORTANT: Left-hand threads.

Release central bolt (1).

Remove camshaft sprocket (2) with timing chain of oil pump.

Fig 1: Identifying Central Bolt And Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Lock chain tensioner (1) at bottom with special tool 11 3 340 .

Remove chain tensioner (1).

Fig 2: Identifying Chain Tensioner And Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove tensioning rail (1) from bearing pin (2).

Remove timing chain for the cylinder head.

(Picture shows N47).

Fig 3: Identifying Tensioning Rail And Bearing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

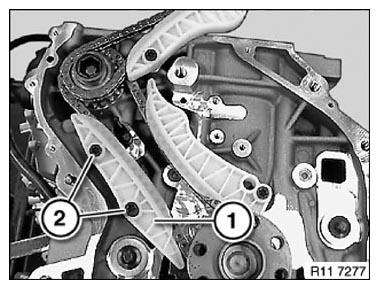

Unfasten screws (2).

Remove slide rail (1).

Installation note:

Tightening torque: 11 11 3AZ .

(Picture shows N47).

Fig 4: Identifying Screws And Slide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

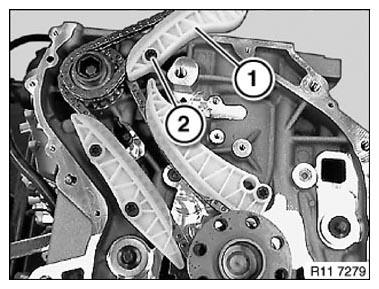

Release screw (1).

Remove tensioning rail (2).

Fig 5: Identifying Tensioning Rail And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

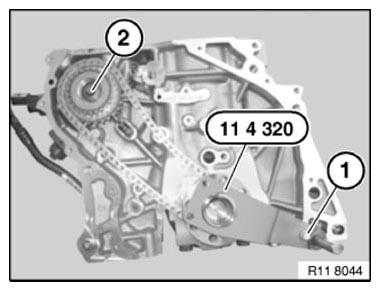

NOTE: To release high pressure pump central bolt (2), use special tool 11 4 320 to secure crankshaft from rotating.

Position special tool 11 4 320 and secure to crankcase with bolt (1).

Fig 6: Releasing High Pressure Pump Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

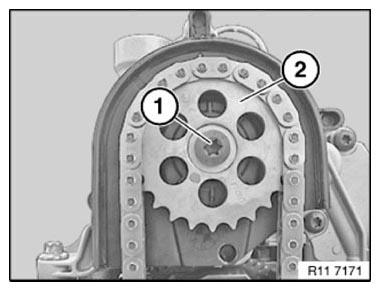

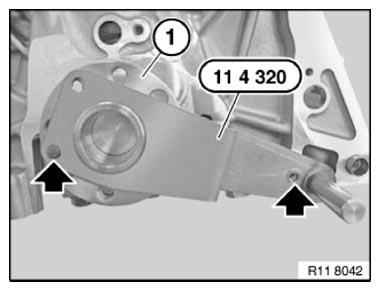

Pay attention to dowel pin on crankshaft (1).

Secure special tool 11 4 320 to the crankcase with a screw M6.

Fig 7: Identifying Dowel Pin And Special Tool (11 4 320)

Courtesy of BMW OF NORTH AMERICA, INC.

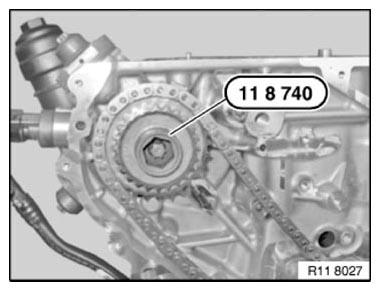

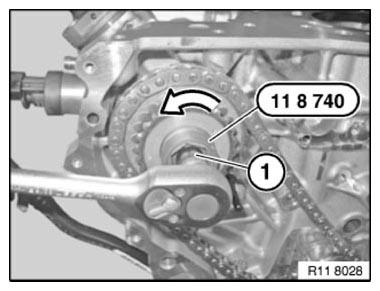

Hand-tighten special tool 11 8 740 in secondary sprocket wheel of high-pressure pump.

Fig 8: Identifying Special Tool (11 8 740)

Courtesy of BMW OF NORTH AMERICA, INC.

Twist out central bolt (1) of high pressure pump in direction of arrow until impeller has detached from taper of high pressure pump.

Fig 9: Removing Central Bolt Of High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 8 740 .

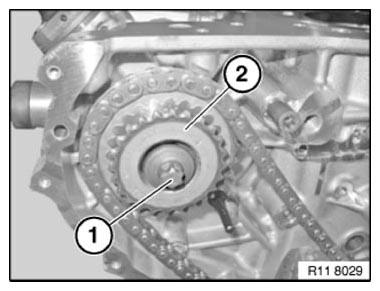

Remove central bolt (1).

Remove special tool 11 4 320 .

Remove secondary sprocket wheel (2) with timing chain.

Fig 10: Identifying Central Bolt And Secondary Sprocket Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

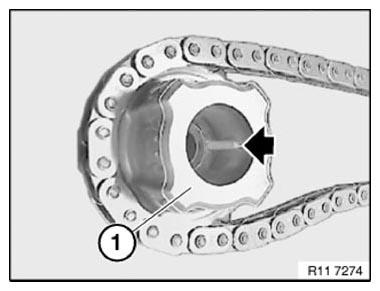

Pay attention to spline groove on high pressure pump (1).

Fig 11: Locating Spline Groove On High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to lug for spline groove on camshaft sprocket (1) of high pressure pump.

Fig 12: Locating Lug For Spline Groove On Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Marking on crankcase (cast lug) and groove on high pressure pump must be in line.

Fig 13: Aligning Marking And Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Groove and marking (0) on pinion are on a single plane.

Fig 14: Identifying Groove And Marking On Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

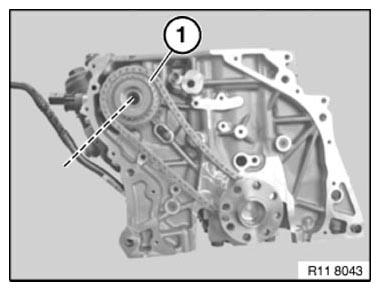

Place timing chain with impeller (1) on crankshaft gear.

Fig 15: Identifying Timing Chain On Crankshaft Gear

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: High pressure pump and crankshaft must be positioned towards each other.

Secure crankshaft (1) to crankcase at firing TDC, cylinder no. 1, with special tool 11 4 320 .

Fig 16: Identifying Dowel Pin And Special Tool (11 4 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Position impeller (1) with timing chain (2) on high pressure pump.

Marking (0) and cast lug must be in line.

Fig 17: Aligning Marking And Cast Lug

Courtesy of BMW OF NORTH AMERICA, INC.

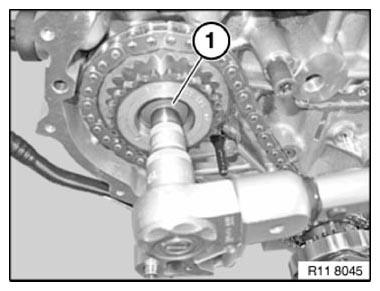

Secure special tool 11 4 320 with a M6x15 screw (1).

Screw in central bolt (2) of high pressure pump.

Fig 18: Releasing High Pressure Pump Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt (1) of high pressure pump.

Tightening torque: 13 52 1AZ .

Remove special tool 11 4 320 .

Fig 19: Identifying Central Bolt Of High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Clean all threads of bearing journals.

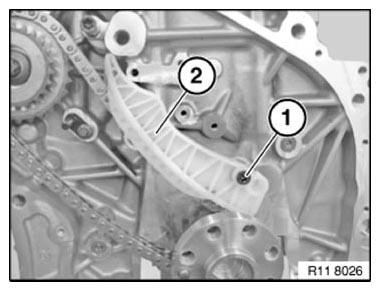

Position tensioning rail (2).

Screw in bearing journals (1).

Tightening torque: 11 11 3AZ .

Fig 20: Identifying Tensioning Rail And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Clean all threads of bearing journals.

Position guide rail (1).

Screw in bearing journals (2).

Tightening torque: 11 11 3AZ .

(Picture shows N47).

Fig 21: Identifying Screws And Slide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Clean sealing surfaces (1) with compressed air.

Fig 22: Identifying Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

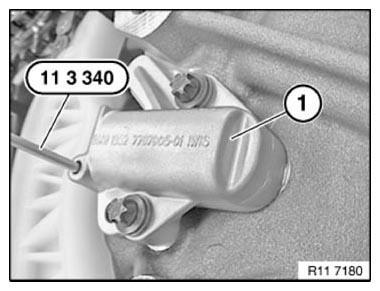

Secure hydraulic chain tensioner (1) at bottom with two screws.

Tightening torque: 11 11 4AZ .

Remove special tool 11 3 340 .

Fig 23: Identifying Chain Tensioner And Special Tool (11 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Position tensioning rail (1) for cylinder head.

Screw in bearing journals (2).

Tightening torque: 11 11 3AZ .

(Picture shows N47).

Fig 24: Identifying Tensioning Rail And Bearing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Position timing chain with secondary sprocket wheel for oil pump.

Installation note:

Pay attention to mounting flats on oil pump shaft (1) (see arrow).

Fit special tool 11 4 320 .

Fig 25: Identifying Mounting Flats On Oil Pump Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Left-hand threads.

Insert screw (1).

Tightening torque: 11 41 2AZ .

Remove special tool 11 4 320 .

Fig 26: Identifying Central Bolt And Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

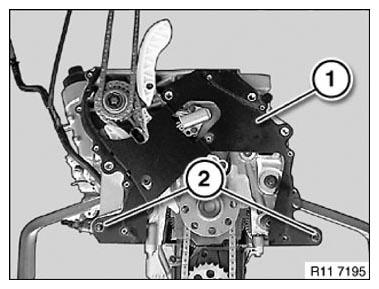

Installation note:

Check fitting sleeves (2) for damage.

Position beaded metal gasket (1).

Fig 27: Identifying Beaded Metal Gasket And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

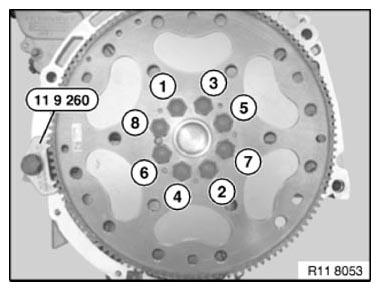

Installation note:

Flywheel must be installed to determined TDC.

Position flywheel.

Secure FLYWHEEL with special tool 11 9 260 .

(Picture shows automatic transmission).

Fig 28: Flywheel Bolts Tightening/Loosening Sequence (N57)

Courtesy of BMW OF NORTH AMERICA, INC.

Turn flywheel (1) back.

Use special tool 11 5 320 to block the crankshaft in the TDC firing position Cylinder 1

Fig 29: Locking Crankshaft In TDC Position Using Special Tool (11 5 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
