11 14 110 Removing and installing, sealing/replacing rear timing case cover (N57 Diesel)

Special tools required:

• 00 9 120 .
• 11 8 815 .
• 11 4 470 .

Necessary preliminary work:

• Remove ENGINE .
• Mount engine on ASSEMBLY STAND .
• Remove FLYWHEEL .
• Remove CYLINDER HEAD .
• Remove OIL SUMP .

Release bolt holding high pressure pump.

Release screws (1).

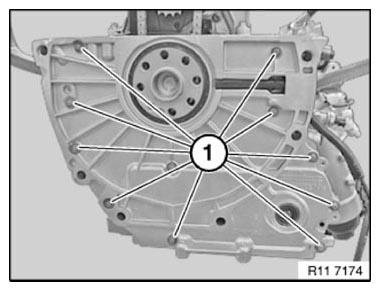

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

On engines N57 and up to 03/2011  .

Remove beaded metal gasket (1).

Check fitting sleeves (2) for damage, replace if necessary.

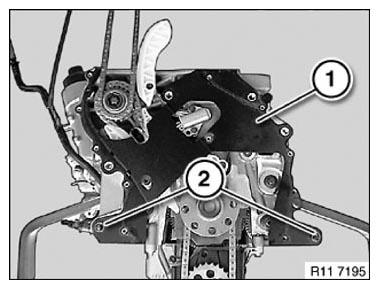

Fig 2: Identifying Beaded Metal Gasket And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

On engines N57 from 03/2011  .

Installation note:

Application time of sealing bead (1) max. 12 min.

Remove gasket remnants with special tool 11 4 470 .

Apply sealing bead (1) at marked points.

Thickness of SEALING BEAD : 1.5 to 2.0 mm  .

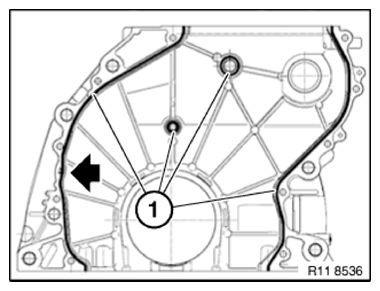

Fig 3: Identifying Sealant Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preassemble special tool 11 8 815 on crankshaft.

Fit accelerator pedal module ring (1) with end cover dry and without lubricant.

Fig 4: Installing Accelerator Pedal Module Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolts (1).

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 00 9 120 with bolts (1).

Tightening torque: 11 14 2AZ .

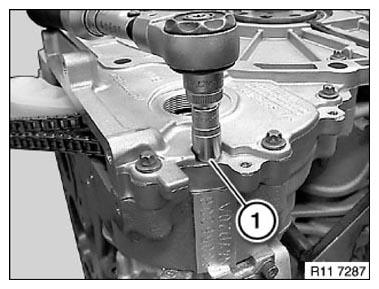

Fig 6: Securing Special Tool (00 9 120) With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of high pressure pump (if fitted).

Fig 7: Inserting Screw Of High Pressure Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
