11 31 051 Replacing timing chain (N20)

Special tools required:

• 11 4 120 .
• 11 9 260 .
• 11 0 300 .
• 11 8 180 .
• 11 8 660 .
• 83 30 2 212 831
• 2 212 825 .

Necessary preliminary tasks:

• Remove CYLINDER HEAD COVER .
• Remove all SPARK PLUGS .
• Remove VIBRATION DAMPER .
• Remove CRANKSHAFT SEAL at front
• Check TIMING .
• Remove oil sump. See OIL SUMP (RWD) or OIL SUMP (AWD) .

Push back the chain tensioner with the tensioning rail (1).

Secure chain tensioner using special tool 11 4 120 .

Fig 1: Securing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Engine removed:

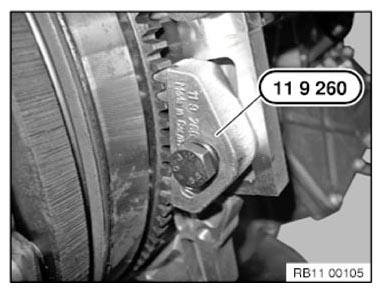

Block crankshaft at flywheel with special tool 11 9 260 .

Fig 2: Identifying Special Tool (11 9 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual gearbox:

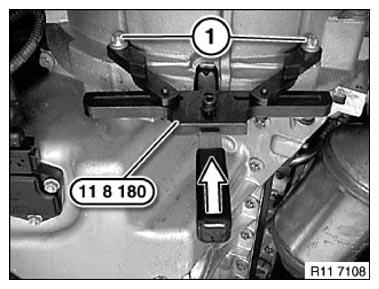

Attach special tool 11 8 180 to manual gearbox with existing transmission bolts (1).

Block crankshaft in direction of arrow with special tool.

Fig 3: Attaching Special Tool 11 8 180 To Manual Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

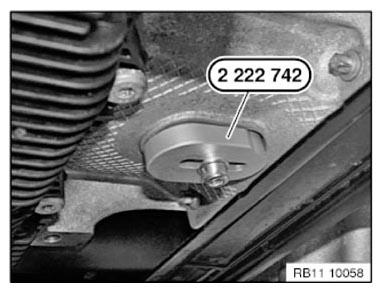

Block crankshaft with special tool 11 8 660 .

Feed in special tool, slide screw forward and tighten.

Fig 4: Identifying Special Tool (2 222 742)

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt (1).

Tightening torque 11 21 1AZ .

Fig 5: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Order number: 83 30 2 212 831

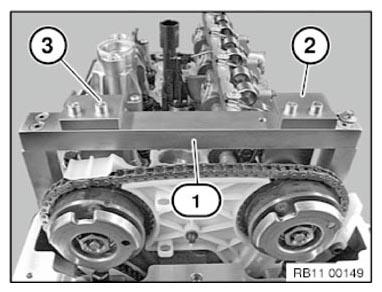

Fig 6: Securing Mounting Bridge On Cylinder Head And Securing Tracing Gauges To Mounting Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CHAIN TENSIONER .

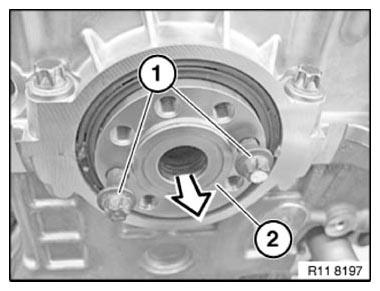

Screw in vibration absorber screws (1).

Pull out hub (2) on crankshaft forward in direction of arrow.

Fig 7: Moving Hub Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Open screw plug (1).

Tightening torque 11 31 8AZ .

Fig 8: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1) from timing chain module on cylinder head.

Tightening torque 11 31 6AZ .

Fig 9: Identifying Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

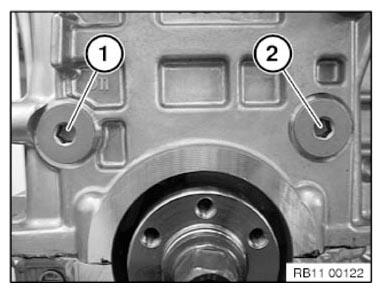

Release screw plugs (1 and 2).

Tightening torque 11 11 7AZ .

Fig 10: Identifying Screw Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

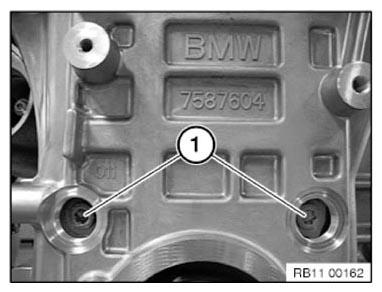

Release bearing journal (1) on left and right of timing chain module for timing chain on crankcase.

Tightening torque 11 31 5AZ .

Fig 11: Identifying Right Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

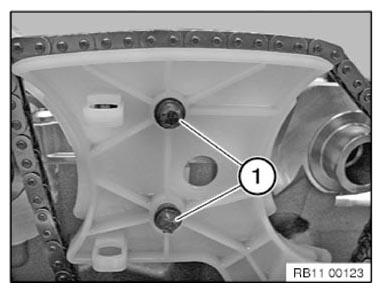

Release bolts (1) from timing chain module on cylinder head.

Tightening torque 11 31 4AZ .

Remove chain module with timing chain and camshaft sprocket upwards.

Fig 12: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove timing chain module (1) upward.

Fig 13: Removing Timing Chain Module

Courtesy of BMW OF NORTH AMERICA, INC.

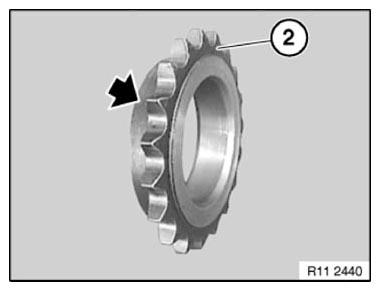

Fig 14: Identifying Collar On Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Pull timing chain upwards until camshaft sprocket engages chain guide (1).

Install timing chain and camshaft sprocket in this position.

Installation note:

Permanently hold timing chain under tension. Timing chain may jam on chain guide (1).

Fig 15: Identifying Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

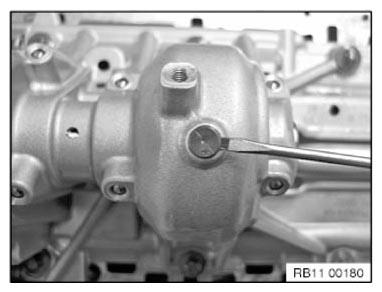

Loosen sealing cap using a screwdriver.

Fig 16: Loosening Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

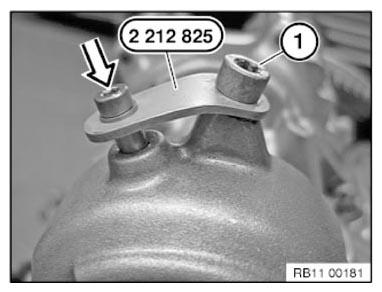

Turn engine at central bolt until special tool 2 212 825 can be positioned in counterbalance shaft.

Secure special tool 2 212 825 to oil pump housing with screw (1).

Fig 17: Securing Special Tool (2 212 825) To Oil Pump Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Fit hub and central bolt (1).

Fig 18: Identifying Hub And Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

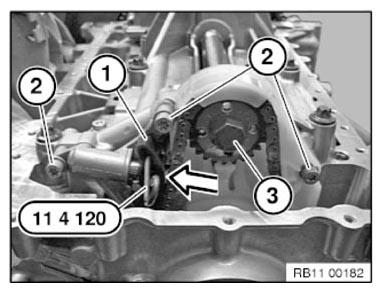

Remove special tool 11 4 120 .

Fig 19: Securing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) with hub for crankshaft.

Tighten down central bolt (1).

Tightening torque 11 21 1AZ .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Fig 20: Inserting Central Bolt With Hub For Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Crank engine twice.

Check TIMING .

Replace front CRANKSHAFT SEAL .

Assemble engine.
