11 36 048 Removing and installing/replacing inlet and exhaust adjustment units on right side (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: When the engine is shut down, the inlet and exhaust camshaft adjuster is normally locked in its initial position.
The situation may arise in some individual cases where this initial position is not reached and the camshaft can continue to be rotated in the adjustment range of the camshaft adjuster.
Where central bolts are not greased at the bolt contact points up to engine number 20024295,  the adjustment gear must be replaced for safety reasons.
The central bolts is greased from engine number 20024296.

(cylinder bank 1 to 4)

Necessary preliminary work:

To release central bolts, use special tool 11 9 890 or grip at hexagon head of camshaft.

Fig 1: Positioning Special Tools
G10057456Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: If special tool 11 9 890 can not be fitted, it is necessary when releasing the central bolt to grip the hexagon head of the respective camshafts.

Release central bolts (1 and 2) of intake and exhaust camshaft adjusters.

Installation note:

Replace central bolts after releasing.

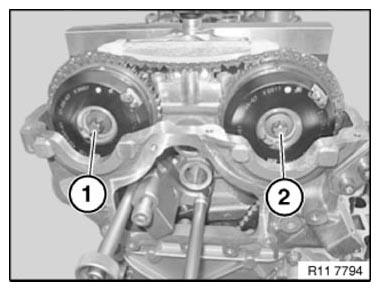

Fig 2: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057457Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Check whether head of central bolt (1) is greased (see arrow).
If no grease can be seen on the bolt head of central bolt (1), the inlet and exhaust adjustment unit must be replaced for safety reasons.

Installation note:

Coat contact face of central bolt (1) with copper paste.

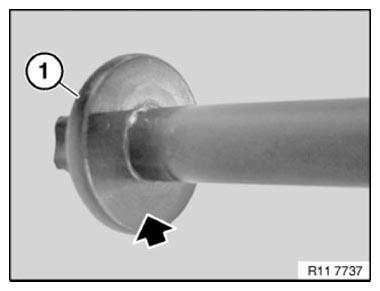

Fig 3: Identifying Central Bolt Contact Surface
G10057458Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon socket screw.

Release special tool 11 9 900 at knurled screws and remove.

Fig 4: Mounting Special Tool 11 9 900 And Pre-Loading Hex Socket Screw
G10057459Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove upper tensioning rail (2).

Fig 5: Identifying Sliding Rail And Screws
G10057460Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (1) of exhaust adjustment unit.

Installation note:

Replace central bolts after releasing.

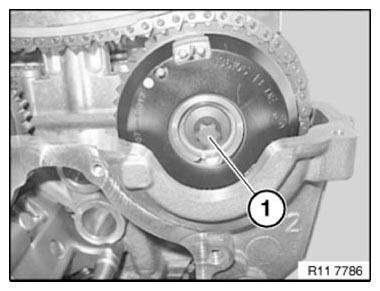

Fig 6: Identifying Central Bolt Of Exhaust Adjustment Unit
G10057461Courtesy of BMW OF NORTH AMERICA, INC.

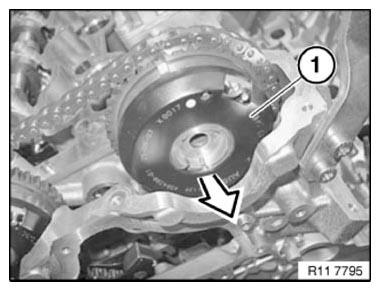

Detach exhaust adjustment unit (1) in direction of arrow from exhaust camshaft.

Fig 7: Detaching Exhaust Adjustment Unit From Exhaust Camshaft
G10057462Courtesy of BMW OF NORTH AMERICA, INC.

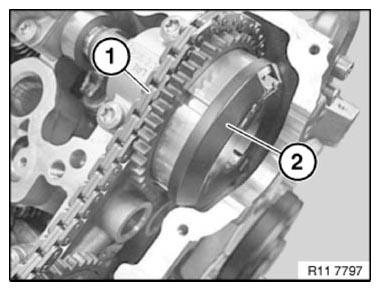

Feed out exhaust adjustment unit (2) from timing chain (1).

Lift out exhaust adjustment unit (2).

Fig 8: Identifying Exhaust Adjustment Unit And Timing Chain
G10057463Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (1) of inlet adjustment unit.

Installation note:

Replace central bolts after releasing.

Fig 9: Identifying Central Bolt Of Inlet Adjustment Unit
G10057464Courtesy of BMW OF NORTH AMERICA, INC.

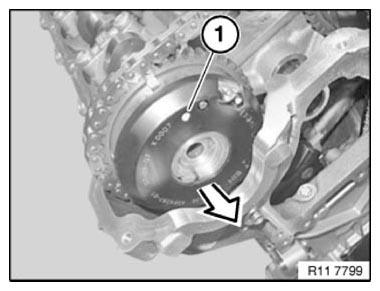

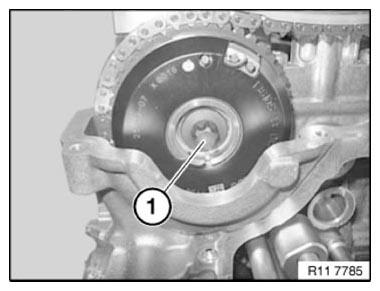

Detach inlet adjustment unit (1) in direction of arrow from inlet camshaft.

Fig 10: Detaching Inlet Adjustment Unit From Inlet Camshaft
G10057465Courtesy of BMW OF NORTH AMERICA, INC.

Feed out inlet adjustment unit (2) from timing chain (1).

Lift out inlet adjustment unit (2).

Fig 11: Identifying Exhaust Adjustment Unit And Timing Chain
G10057466Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:

Intake and exhaust camshaft adjusters are different.

Mixing up the inlet and exhaust adjustment units will cause damage to the engine.

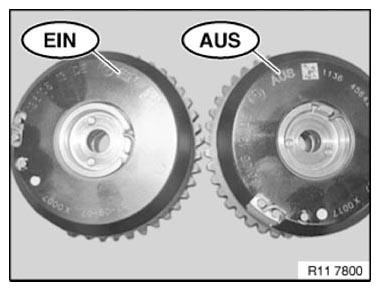

  1. Intake camshaft adjuster (1) is marked IN ("EIN")
  2. Exhaust camshaft adjuster (2) is marked OUT ("AUS")
    Fig 12: Locating Identification Marks On Intake And Exhaust Camshaft Adjusters
    G10057467Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact face of central bolt (1) with copper paste.

Fig 13: Identifying Central Bolt Contact Surface
G10057468Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of adjustment units in relation to timing chain can be freely selected.

Feed adjuster into timing chain and position on camshafts.

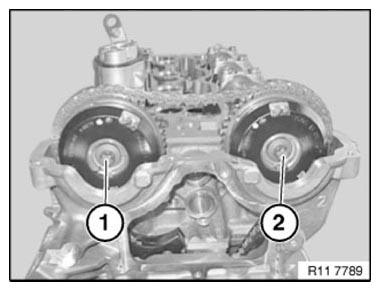

Insert central bolts (1 and 2) on adjustment units without gaps.

Release central bolts (1 and 2) by 90°  .

Fig 14: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057469Courtesy of BMW OF NORTH AMERICA, INC.

Fit sliding rail (2) and secure with screws (1).

Tightening torque: 11 31 4AZ .

Fig 15: Identifying Sliding Rail And Screws
G10057470Courtesy of BMW OF NORTH AMERICA, INC.

Get set of special tools 11 9 890 ready for securing camshafts.

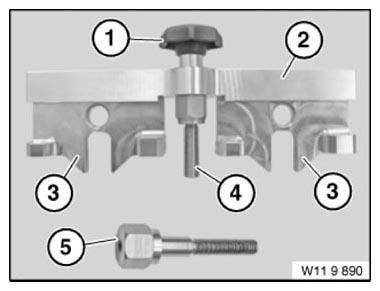

Fig 16: Identifying Special Tools
G10057471Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 893 on exhaust camshaft.

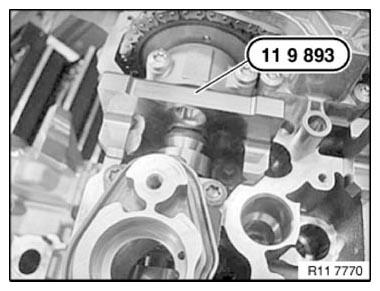

Fig 17: Checking Timing Adjustment - Exhaust Camshaft
G10057472Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 893 on intake camshaft.

Installation note:

Align exhaust and intake camshafts so that special tools 11 9 893 lie on the cylinder head without any gap.

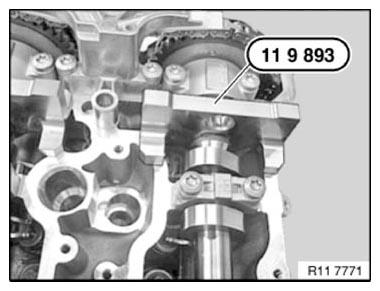

Fig 18: Checking Timing Adjustment - Intake Camshaft
G10057473Courtesy of BMW OF NORTH AMERICA, INC.

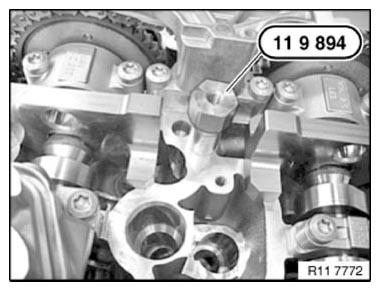

Screw special tool 11 9 894 into cylinder head.

Fig 19: Positioning Special Tools
G10057474Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 11 9 892 down with special tool 11 9 891 .

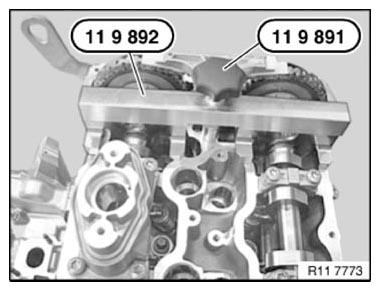

Fig 20: Positioning Special Tools
G10057475Courtesy of BMW OF NORTH AMERICA, INC.

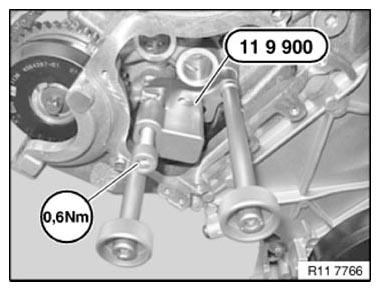

Screw in special tool 11 9 900 .

Pretension timing chain with special tool 11 9 900 .

Preload hexagon socket screw with special tool 00 9 250 to 0.6 Nm  .

Fig 21: Mounting Special Tool 11 9 900 And Pre-Loading Hex Socket Screw
G10057476Courtesy of BMW OF NORTH AMERICA, INC.

Check special tools 11 9 190 for correct seating.

Fig 22: Securing Vibration Damper At 150° Before Cylinder No. 1 Firing TDC Position 1
G10057477Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down central screw (1 and 2) of the adjustment units with special tool 00 9 120 .

Tightening torque 11 36 1AZ .

Fig 23: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjusters
G10057478Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570 .

Crank engine at central bolt twice in direction of rotation until engine is in the 150° firing TDC position cylinder 1  again.

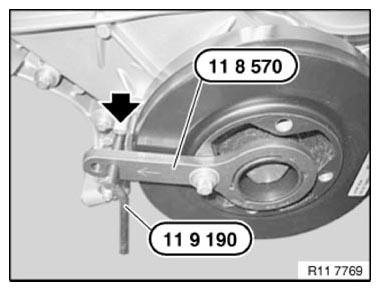

Mount special tool 11 8 570 on vibration damper with a bolt.

Secure special tool 11 9 190 at 150° before cylinder no. 1 firing TDC position  .

Fig 24: Securing Vibration Damper At 150° Before Cylinder No. 1 Firing TDC Position 1
G10057479Courtesy of BMW OF NORTH AMERICA, INC.

Check timing again. See CHECKING CAMSHAFT TIMING ON LEFT SIDE  and CHECKING CAMSHAFT TIMING ON RIGHT SIDE .

Remove all special tools.
