11 33 052 Removing and installing/replacing all rocker arms on left side (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480
(cylinder bank 5 to 8)

Necessary preliminary work:

Remove LEFT INLET CAMSHAFT .
Remove left EXHAUST CAMSHAFT .

IMPORTANT: Used rocker arms (1) may only be reused in the same position.
Tolerance classes are not required.

Remove rocker arm (1) and set down in neat order in special tool 11 4 480 .

Install rocker arm (1).

Align all rocker arms (1) straight.

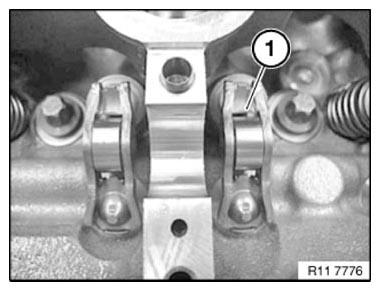

Fig 1: Identifying Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
