11 34 552 Removing and installing/replacing all valves (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

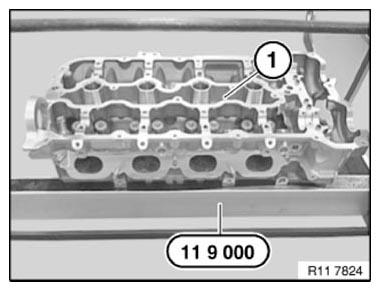

Mount cylinder head (1) on special tool 11 9 001 .

Graphic N63.

Fig 1: Mounting Cylinder Head On Special Tool (11 9 000)
G10057142Courtesy of BMW OF NORTH AMERICA, INC.

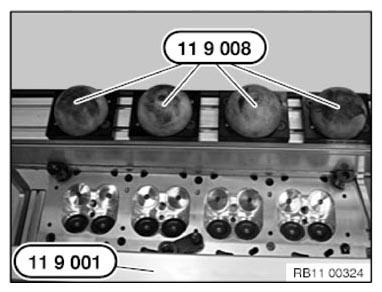

Prepare special tool 11 9 008 .

Fig 2: Preparing Special Tools
G10057143Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 006 with silicone cushion on cylinder head.

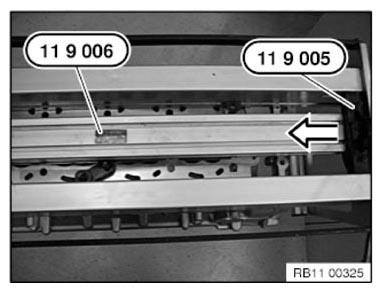

Slide lock 11 9 005 in direction of arrow and pretension with eccentric shaft.

Fig 3: Sliding Lock
G10057144Courtesy of BMW OF NORTH AMERICA, INC.

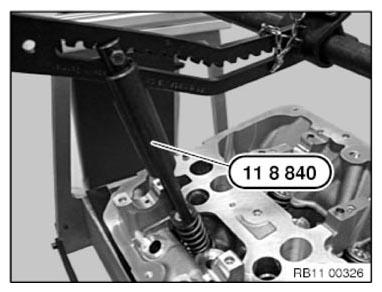

Press down valve spring with special tool 11 8 840 .

Fig 4: Pressing Down Valve Spring Using Special Tool (11 8 840)
G10057145Courtesy of BMW OF NORTH AMERICA, INC.

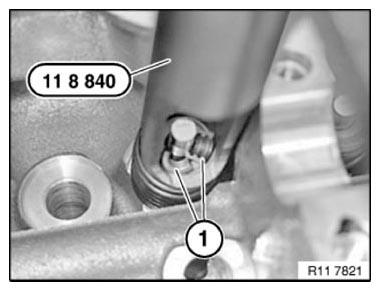

Remove valve cotters (1) with a magnet.

Place valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 5: Removing Valve Cotters
G10057146Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Incorrect assembly possible.
Incorrect assembly will result in valve spring breakage.

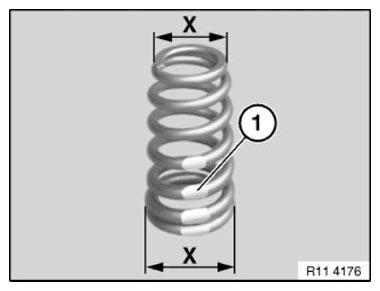

Color coding (1) is normally on lower end of valve spring.
Only the diameter is decisive for the correct installation of the valve springs.
Install valve spring so that larger diameter points to spring cup at bottom.
Fig 6: Identifying Correct Installation Position Of Valve Spring
G10057147Courtesy of BMW OF NORTH AMERICA, INC.

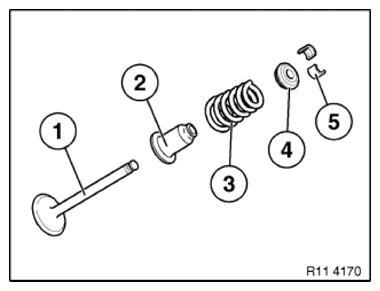

Arrangement:

  1. Valve
  2. Valve stem seal with spring cup, bottom
  3. Valve spring
  4. Top spring cup
  5. Valve keys
    Fig 7: Exploded View Of Valve
    G10057148Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 9 006 from cylinder head.

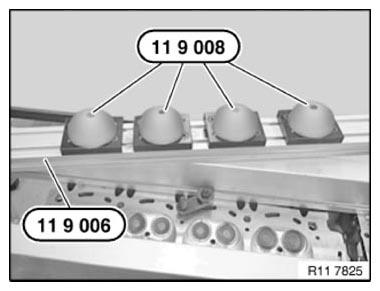

Remove all valves and place on special tool 11 4 480 in an orderly manner.

Fig 8: Preparing Special Tools
G10057149Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
