11 65 185 Removing and installing/replacing heat shield, bottom (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both exhaust turbochargers. See REMOVING LEFT TURBOCHARGER (CYLINDERS 5-8) and REMOVING RIGHT TURBOCHARGER (CYLINDERS 1-4) .
Remove both exhaust manifolds. See REMOVING EXHAUST MANIFOLD AT LEFT and REMOVING RIGHT EXHAUST MANIFOLD .
Remove ALTERNATOR .

Release screws (1).

Tightening torque 11 65 5AZ .

Remove heat shield (2) towards top.

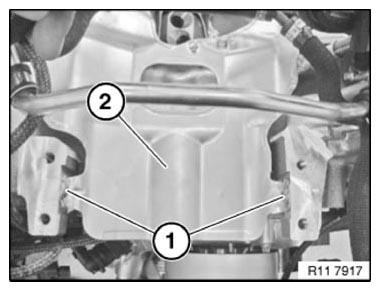

Fig 1: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 6AZ .

Remove heat shield (2).

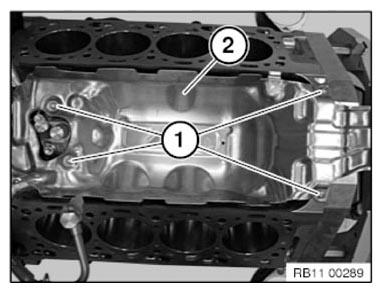

Fig 2: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
