12 31 020 Removing and installing or replacing alternator (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Disconnect BATTERY EARTH LEAD .
Remove DRIVE BELT FOR ALTERNATOR .
Remove FUEL DELIVERY LINE .

IMPORTANT: Risk of damage!
Cover radiator.

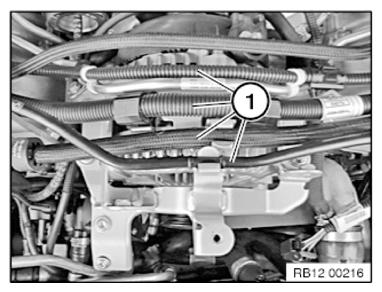

Unclip all cables (1) and coolant lines from brackets.

Fig 1: Identifying Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Place auxiliary water pump to one side.

Unfasten screws (2).

Tightening torque 12 31 1AZ .

Put cable clip aside.

Feed out alternator and remove.

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
