11 65 180 Removing and installing/replacing top heat shield (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not carry out test drives without heat shield (risk of fire!) .

Necessary preliminary tasks:

Remove ENGINE COVER .
Remove both control sensors. See REPLACING LEFT CONTROL SENSOR and REPLACING RIGHT CONTROL SENSOR .
Remove DME CONTROL UNITS HOLDER .

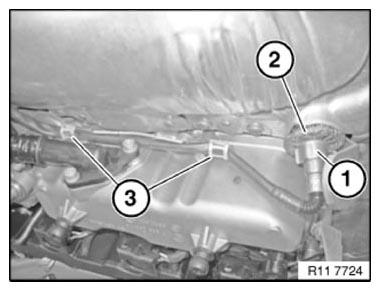

Release retaining clip (1).

Detach wire ring (2) and set down behind oxygen sensor.

Fig 1: Identifying Retaining Clip And Wire Ring

G10058151

Courtesy of BMW OF NORTH AMERICA, INC.

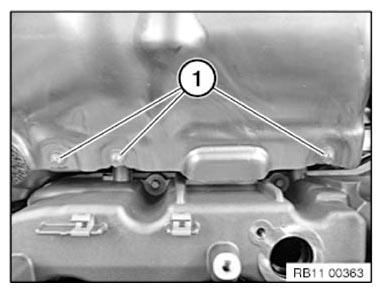

Release bolts (1) through 180°.

Tightening torque 11 65 3AZ .

Fig 2: Identifying Heat Shield Bolts

G10058152

Courtesy of BMW OF NORTH AMERICA, INC.

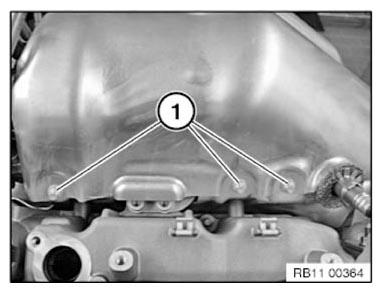

Release bolts (1) through 180°.

Tightening torque 11 65 3AZ .

Fig 3: Identifying Heat Shield Bolts

G10058153

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out heat shield.

Installation note:

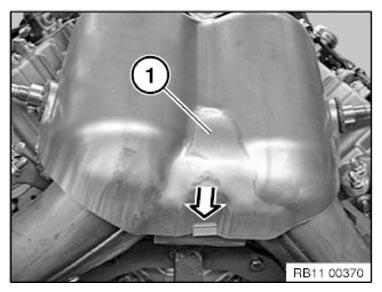

Clip in heat shield (1) into retaining clip, see arrow.

Fig 4: Identifying Heat Shield Retaining Clip

G10058154

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
