11 78 530 Replacing left control sensor (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 020

WARNING: Risk of burning!
Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Check function of DME.
Switch off ignition
Remove ENGINE COVER

Unclip control sensor cable at retaining clips.

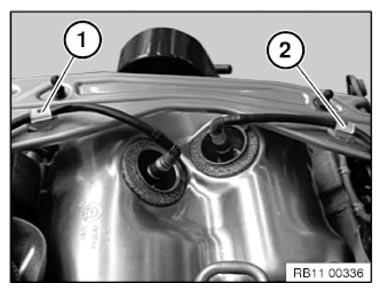

Fig 1: Identifying Control Sensor Cable Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip control sensor cable (2) at retaining clips (3).

Unlock plug connection and detach.

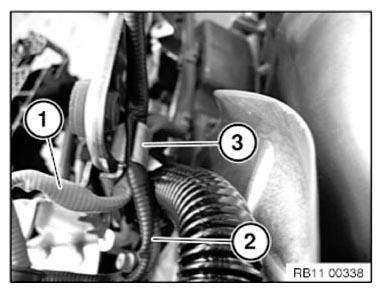

Fig 2: Identifying Control Sensor Cable And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release control sensor with special tool 11 7 020 .

Fig 3: Releasing Control Sensor Using Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The threads of new oxygen control/monitoring sensors are already coated with NEVER-SEEZ COMPOUND .

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of Never-Seez Compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Secure control sensor with special tool 11 7 020 and a torque wrench.

Tightening torque 11 78 1AZ .

Fig 4: Releasing Control Sensor Using Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check function of DME control unit.

Pay attention to cable routing of control sensor.
