11 14 250 Removing and installing/sealing rear coolant end cover (N63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470

WARNING: Risk of scalding!
Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

Remove FLYWHEEL
Drain COOLANT

Release all screws in area (1).

Tightening torque 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

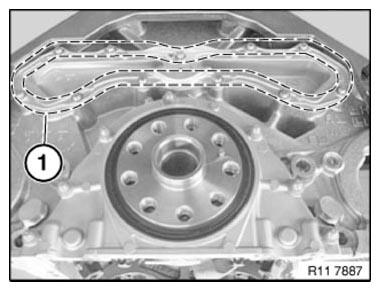

Fig 1: Locating Screws

G10056054

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seal (1).

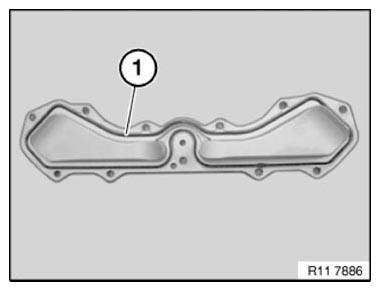

Fig 2: Identifying Profile Seal

G10056055

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
