11 22 000 Removing and installing/replacing flywheel (N63)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove automatic transmission. See REMOVING AUTOMATIC TRANSMISSION or REMOVING AUTOMATIC TRANSMISSION (WITH AWD) .
- Remove MANUAL TRANSMISSION
- Remove CLUTCH

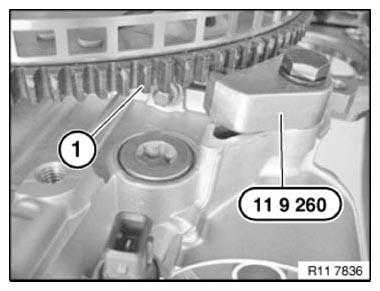

Secure flywheel (1) with special tool 11 9 260 .
Automatic transmission:

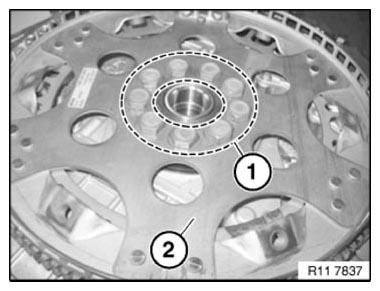

Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts.
Tightening torque 11 22 1AZ .
Manual gearbox:
Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts.
Tightening torque 11 22 2AZ .
