11 14 151 Replacing radial crankshaft seal on transmission side (N55)

Special tools required:

• 11 8 220
• 11 9 181
• 11 9 182
• 11 9 183
• 11 9 184
• 11 9 185
• 23 0 490

Necessary preliminary work:

• Remove TRANSMISSION .
• Remove FLYWHEEL .

Remove magnet wheel (1) from crankshaft.

Fig 1: Identifying Magnet Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

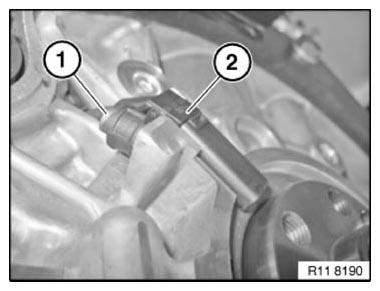

Release screw (1) on pulse sensor.

Slide PULSE SENSOR (2) upwards.

Fig 2: Identifying Screw On Pulse Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

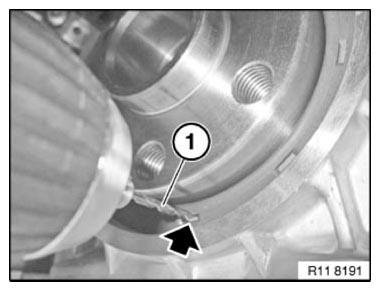

Drill a hole with a drill (1) in the radial shaft seal (see arrow).

Fig 3: Drilling Hole In Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

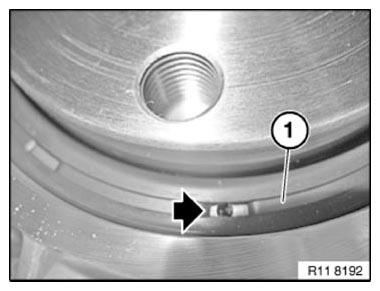

Fig 4: Identifying Radial Shaft Seal With Drilled Hole

Courtesy of BMW OF NORTH AMERICA, INC.

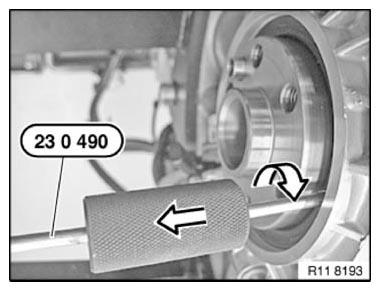

Screw in special tool 23 0 490 in direction of arrow.

Drive out radial shaft seal with impact weight in direction of arrow.

Fig 5: Removing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

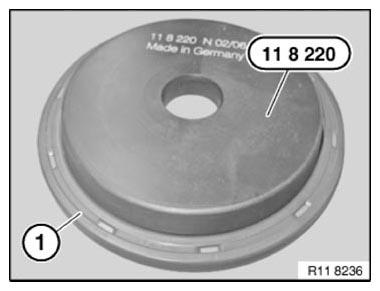

Prepare radial shaft seal (1) on special tool 11 8 220 .

Fig 6: Identifying Radial Shaft Seal On Special Tool (11 8 220)

Courtesy of BMW OF NORTH AMERICA, INC.

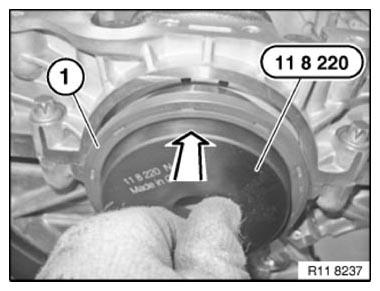

Position the radial shaft seal (1) with special tool 11 8 220 on the crankshaft.

Fig 7: Positioning Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

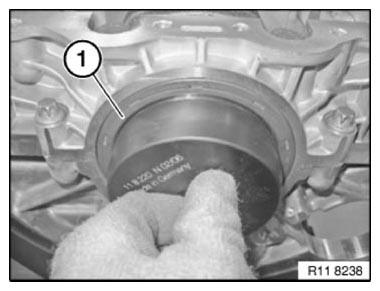

Brush radial shaft seal (1) over the special tool 11 8 220 .

Move radial shaft seal (1) parallel up against the crankcase.

Fig 8: Moving Radial Shaft Seal Parallel Up Against Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

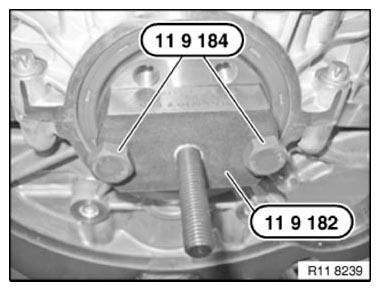

Fasten special tool 11 9 182 with special tool 11 9 184 on the crankshaft.

Fig 9: Fastening Special Tools On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

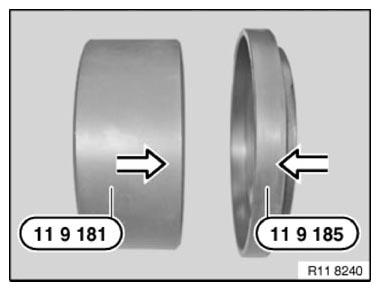

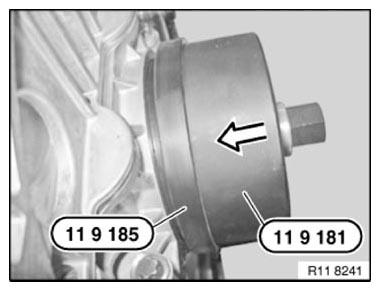

Prepare special tool 11 9 181 for installation.

Connect special tool 11 9 185 onto special tool 11 9 181 .

Fig 10: Preparing/Connecting Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Push on radial shaft seal with special tool 11 9 181 and 11 9 185 in combination with special tool 11 9 183 .

Fig 11: Installing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

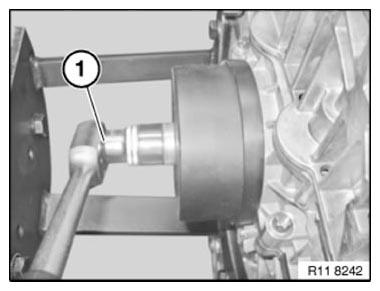

Screw on radial shaft seal with special tool 11 9 183 to limit position.

Fig 12: Screwing-On Radial Shaft Seal To Limit Position

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
