11 22 500 Removing and installing/replacing flywheel (N55)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Aluminium screws/bolts must be replaced each time they are released
.
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary tasks:
- Remove GEARBOX
Automatic transmission:

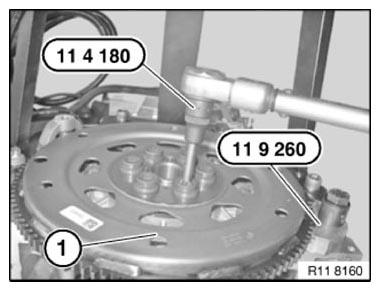

Secure flywheel (1) with special tool 11 9 260 .
Unfasten flywheel bolts.
Tightening torque 11 22 1AZ .
Installation note:
Flywheel (1) is secured with an dowel pin.
Manual gearbox:

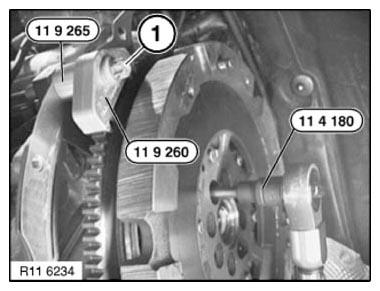

Fasten dual-mass flywheel with special tool 11 9 260 and 11 9 265 .
Release flywheel bolts with special tool 11 4 180 /
Tightening torque 11 22 2AZ .
Installation note:
Fit new flywheel bolts.
Clean all threads for flywheel bolts in crankshaft.
Installation note:

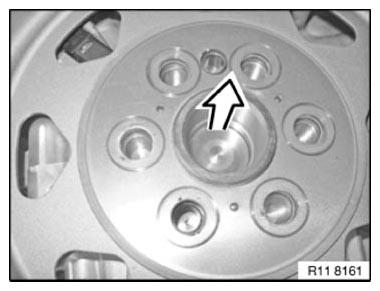

Pay attention to dowel pin.
Installation note:

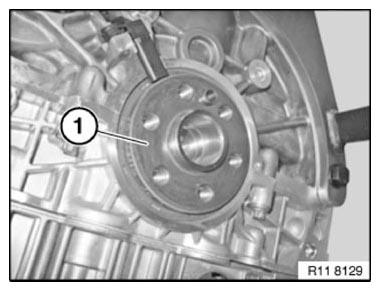

Ensure installed position of magnet wheel is correct.
Assemble engine.
