11 00 598 Removing and installing engine on front axle (S63) with GS7D36SG transmission (M6, Dual-clutch transmission)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove FRONT AXLE COMPLETELY WITH ENGINE AND TRANSMISSION .

Screw fixtures (20) onto table lift at a suitable location.

Move screw adapters (30) with plates (80) up against the transmission oil sump (1).

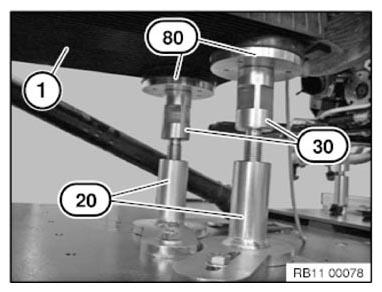

Fig 1: Identifying Fixtures, Screw Adapters, Plates, And Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove retaining clip (2).

Fig 2: Identifying Retaining Clip And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

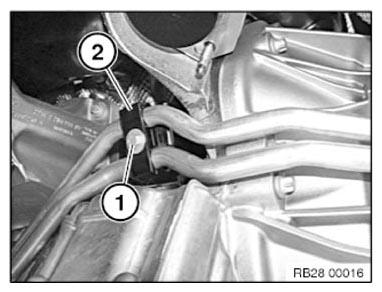

Release screw (1).

Loosen the hydraulic lines (2).

Installation note:

Replace sealing rings.

Recycling:

Catch and dispose of escaping oil with auxiliary materials.

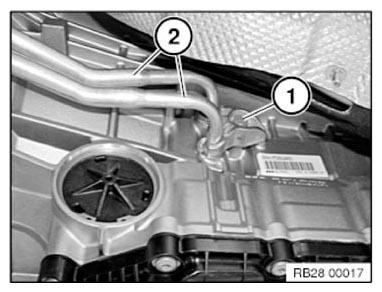

Fig 3: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

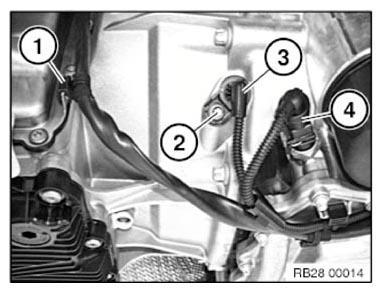

Detach cable clip (1) from gearbox.

Release screw (2).

Remove pulse sensor for crankshaft sensor (3).

Disconnect connector (4).

Tightening torque 13 62 4AZ .

Fig 4: Identifying Crankshaft Pulse Sensor, Cable Clip, Screw, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

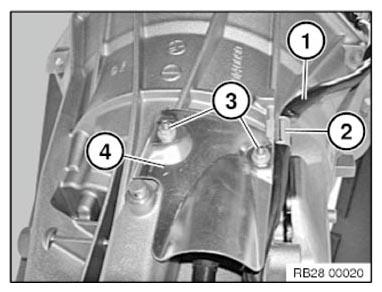

Unclip transmission wiring harness (1) from holder (2).

Release screws (3) and remove protective plate (4).

Release transmission connector.

Fig 5: Identifying Protective Plate, Screws, Transmission Wiring Harness, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock central transmission plug (1) by turning and disconnect.
Do not touch pins.
Release cable from brackets.

Operations are described in:

NOTES ON MECHATRONICS

IMPORTANT: Read and comply with important note.

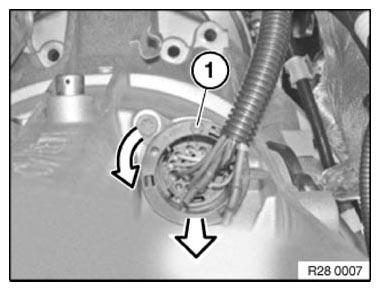

Fig 6: Disconnecting Central Transmission Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to the routing and length of the wiring harness.

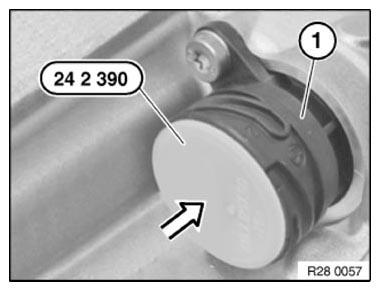

Insert special tool 24 2 390 in sealing cup (1).

Fig 7: Inserting Special Tool (24 2 390) In Sealing Cup

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on transmission.

Tightening torque:

M8x50: 19 Nm
M10: 38 Nm
M12: 66 Nm

Installation note:

Screws have different lengths.

Note installation position.

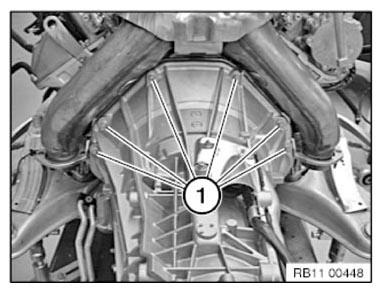

Fig 8: Identifying Screws On Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque:

M8x50: 19 Nm
M10: 38 Nm
M12: 66 Nm

Make sure the rubber seal (2) is fitted correctly when removing and installing the transmission.

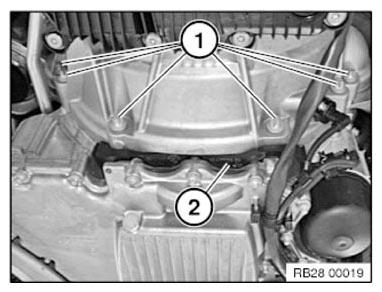

Fig 9: Identifying Rubber Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly raise engine with workshop crane and special tool 11 0 000 .

This simplifies removal and installation of transmission.

Fig 10: Lifting Engine With Workshop Crane And Special Tool (11 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Capture emerging transmission oil with a suitable drip tray (1).

Disconnect transmission (2) from engine.

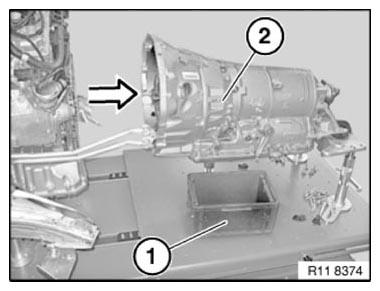

Fig 11: Disconnecting Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise engine approx. 10 mm with cross member.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

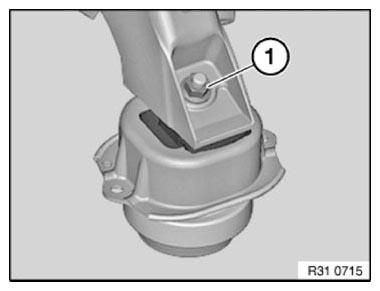

Fig 12: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine from front axle with workshop crane and special tool 11 0 000 .

Mount engine on ASSEMBLY STAND .

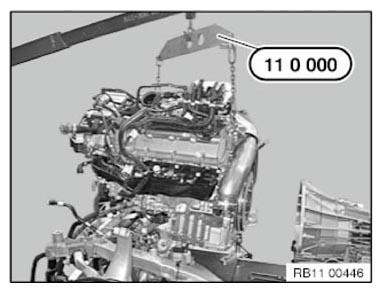

Fig 13: Lifting Engine With Workshop Crane And Special Tool (11 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.
