11 00 598 Removing and installing engine on front axle (S63) with GS6-53BZ transmission (M6, Manual transmission)

Special tools required:

• 11 0 000

Necessary preliminary tasks:

• Remove FRONT AXLE COMPLETELY WITH ENGINE AND TRANSMISSION .

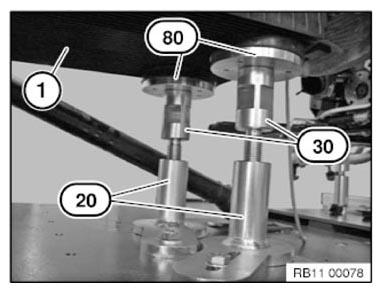

Screw fixtures (20) onto table lift at a suitable location.

Move screw adapter (30) with plate (80) up against the transmission oil sump (1).

Fig 1: Identifying Fixtures, Screw Adapters, Plates, And Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

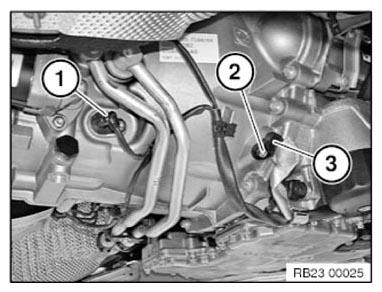

Disconnect plug connection (1).

Release screw (2).

Tightening torque 13 62 4AZ .

Remove sensor (3).

Fig 2: Identifying Plug Connection, Screw And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

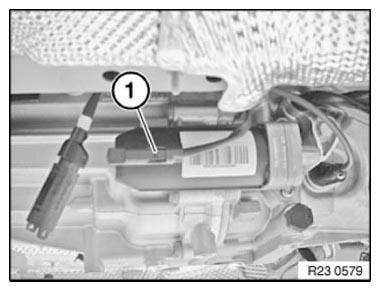

Disconnect plug connection (1) from oil pump.

Fig 3: Identifying Oil Pump Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

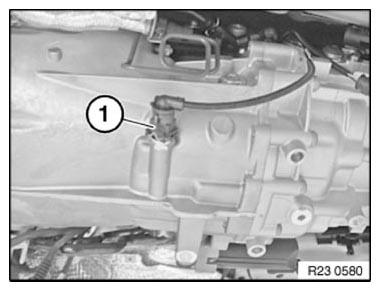

Disconnect plug connection (1) from reversing light switch.

Release cable from brackets.

Fig 4: Identifying Reversing Light Switch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

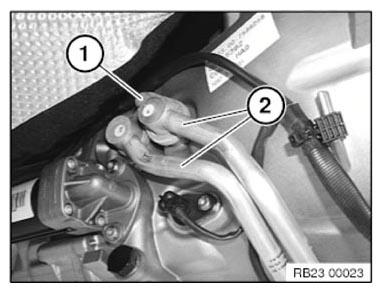

Release screw (1).

Loosen the hydraulic lines (2).

Tightening torque 17 22 1AZ .

Installation note:

Check installed position of hydraulic lines (2).

Replace sealing rings.

Fig 5: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

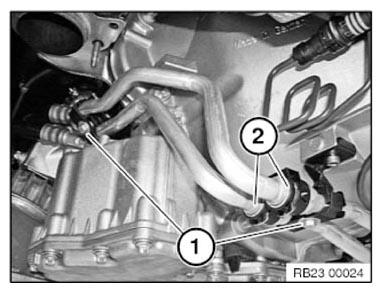

Loosen screws (1) with brackets of hydraulic lines.

Tightening torque 17 22 3AZ .

Release and disconnect hydraulic lines (2) from brackets.

Fig 6: Identifying Hydraulic Lines And Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 7: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

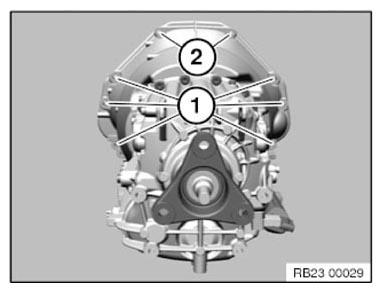

Release bolts (1) and (2).

Tightening torque 23 00 1AZ .

Fig 8: Identifying Transmission Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

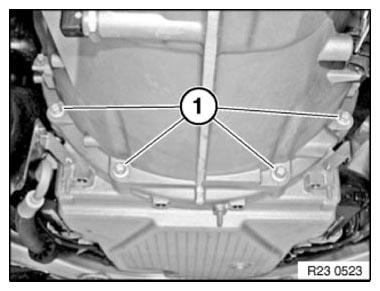

Release screws (1).

Tightening torque 23 00 1AZ .

Fig 9: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

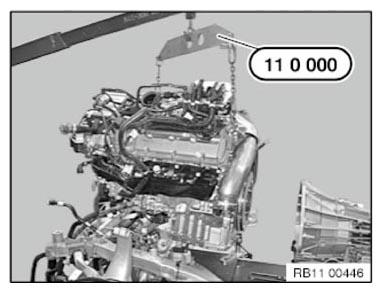

Slightly raise engine with workshop crane and special tool 11 0 000 .

This simplifies removal and installation of transmission.

Fig 10: Lifting Engine With Workshop Crane And Special Tool (11 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

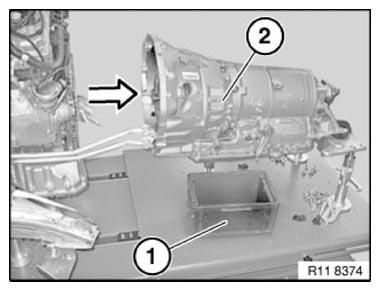

Capture emerging transmission oil with a suitable drip tray (1).

Disconnect transmission (2) from engine.

Fig 11: Disconnecting Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

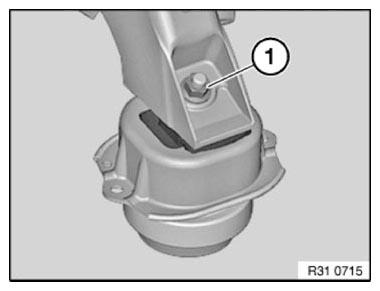

Unscrew nuts (1).

Raise engine approx. 10 mm with cross member.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 12: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine from front axle with workshop crane and special tool 11 0 000 .

Mount engine on ASSEMBLY STAND .

Fig 13: Lifting Engine With Workshop Crane And Special Tool (11 0 000)
