11 12 729 Checking cylinder head for water leaks (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Pressure-test cylinder head to max. 3 bar.
Heat cylinder head to 60 °.
Check for bubble formation in a water bath.

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Disassemble cylinder head. See REMOVING INTAKE CAMSHAFT , REMOVING EXHAUST CAMSHAFT , and REMOVING ALL VALVES .

Fit special tool 11 7 190 .

Installation note:

Secure special tool to max. 15 Nm.

Fig 1: Identifying Special Tool (11 7 190)

G10055796

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 4 342 with screws (1). Screw in knurled screw in direction of arrow.

Sealing flange must rest flat.

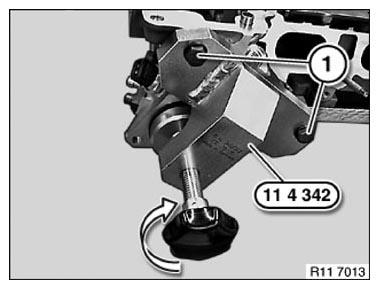

Fig 2: Fitting Special Tool (11 4 342) With Screws

G10055797

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 344 with bolts (1).

NOTE: Compressed air at valve max. 3 bar .

Heat cylinder head to 60 °.

Check for bubble formation in a water bath.

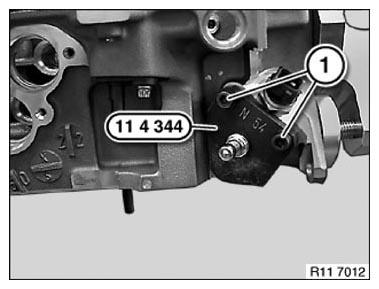

Fig 3: Securing Special Tool (11 4 344) With Bolts

G10055798

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
