11 12 101 Replacing cylinder head gasket (N55)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove CYLINDER HEAD .
Check cylinder head for DEVIATION FROM FLATNESS .
Check cylinder head for WATERTIGHTNESS .

Remove cylinder head gasket.

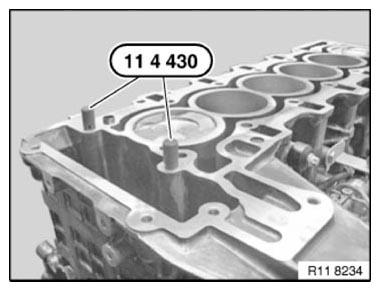

Insert special tool 11 4 430 into feed pipe of oil pump.

Fig 1: Inserting Special Tool (11 4 430) Into Feed Pipe Of Oil Pump

G10055957

Courtesy of BMW OF NORTH AMERICA, INC.

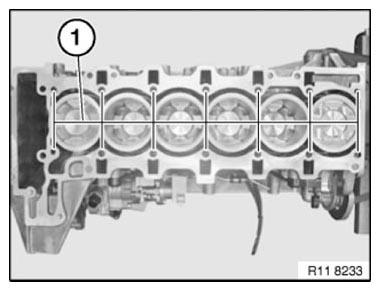

Remove remnants of oil and dirt from blind holes (1).

IMPORTANT: Work on sealing surface on engine block and on cylinder head with special tool 11 4 470 only.
Do not use any metal-cutting tools.

Fig 2: Locating Blind Holes

G10055958

Courtesy of BMW OF NORTH AMERICA, INC.

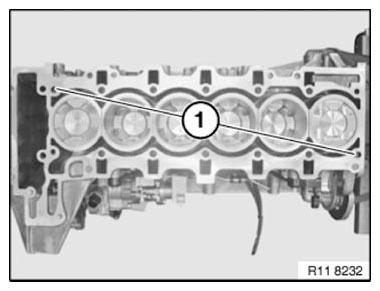

Check adapter sleeves (1) for damage and firm seating.

Fig 3: Identifying Adapter Sleeves

G10055959

Courtesy of BMW OF NORTH AMERICA, INC.

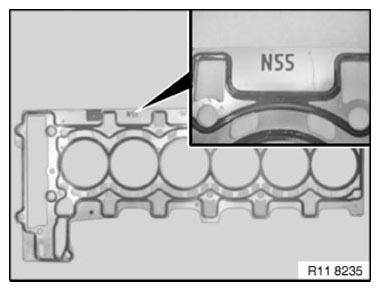

Cylinder head gasket N55 is a beaded metal gasket.

Fig 4: Identifying Cylinder Head Gasket (N55)

G10055960

Courtesy of BMW OF NORTH AMERICA, INC.

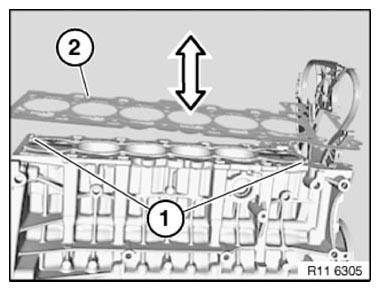

Place cylinder head gasket (2) in direction of arrow on engine block.

Fix new cylinder head gasket with fitting sleeves (1).

Fig 5: Installing Cylinder Head Gasket

G10055961

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
