13 53 310 Removing and installing/replacing an injector (N55)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Observe WARNINGS ON REMOVAL OF THE INJECTORS without fail!
IMPORTANT:
There are two different injector versions and hold-down device versions for the N55 engine.
A mixed installation of the components (hold-down device, spark plug shafts, injectors, cylinder heads and screws) between the two hold-down device versions is not possible/permitted!
Removal and installation of the various injectors are described separately according to the hold-down device version.
The hold-down device version must be identified beforehand in order to select the correct repair instructions.
Remove ACOUSTIC COVER
A mixed installation of the components (hold-down device, spark plug shafts, injectors, cylinder heads and screws) between the two hold-down device versions is not possible/permitted!
Removal and installation of the various injectors are described separately according to the hold-down device version.
The hold-down device version must be identified beforehand in order to select the correct repair instructions.
Remove ACOUSTIC COVER

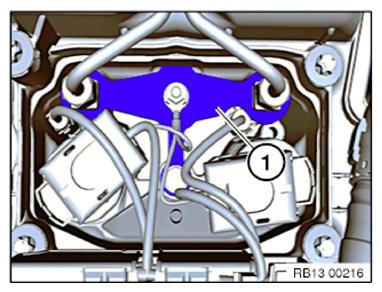

The bottom hold-down device version can be found on the electromagnetic compatibility panel (1) installed above the injectors.

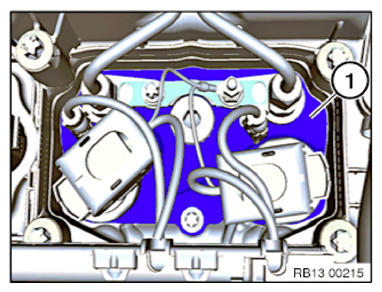

The top hold-down device version can be found on the hold-down device installed on top (1).
