Procedure steps

SPECIAL TOOLS AND TIGHTENING TORQUES:

For additional information on special tools and tightening torques pertaining to this procedure, refer to the following:

• OVERVIEW OF SPECIAL TOOLS
• OVERVIEW OF TIGHTENING TORQUES

PRE-PROCESSES:

1. Remove luggage compartment floor trim panel

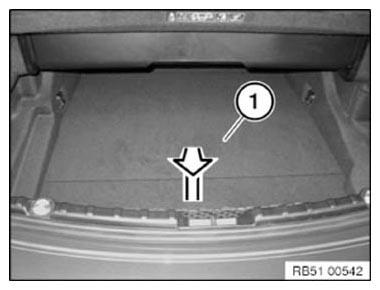

   • Remove luggage compartment floor trim panel (1) in the direction of the arrow.
     Fig 1: Removing Luggage Compartment Floor Trim Panel

     Courtesy of BMW OF NORTH AMERICA, INC.
2. Remove luggage compartment storage compartment
   NOTE: Graphic similar.

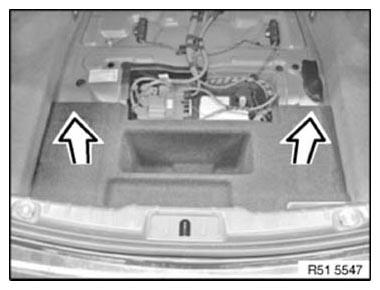

   • Remove luggage compartment storage compartment in direction of arrow.
     Fig 2: Removing Storage Compartment

     Courtesy of BMW OF NORTH AMERICA, INC.

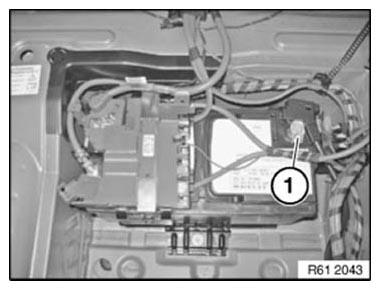

3. Disconnect battery ground cable

   Prerequisite

   Ignition switched off.

   • Slacken nut (1).
     NOTE: Risk of damage! Do not under any circumstances use force to pull off negative terminal.
   • Pull off battery ground cable with IBS towards the top, put to one side and secure.
     Fig 3: Identifying Nut Of Battery Ground Cable

     Courtesy of BMW OF NORTH AMERICA, INC.
4. Remove the acoustic cover
   • Raise acoustic cover (1).
   • Remove acoustic cover (1) in the direction of travel.

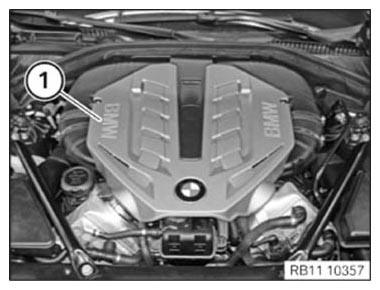

     Fig 4: Identifying Acoustic Cover

     Courtesy of BMW OF NORTH AMERICA, INC.
5. Remove front strut brace on left and right
   NOTE: Description is for left component only. Procedure on the right side is identical.
   NOTE: Risk of damage to the body! Driving without the strut brace is not permitted!

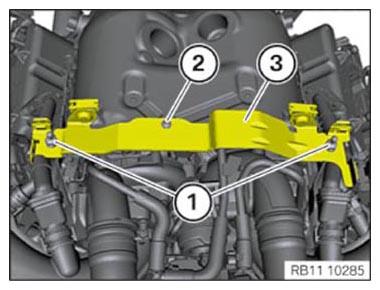

   • Loosen screws (1).
   • Remove strut brace (2).

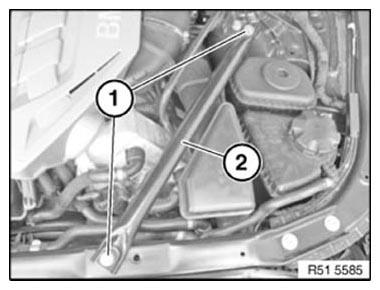

     Fig 5: Identifying Strut Brace And Screws

     Courtesy of BMW OF NORTH AMERICA, INC.

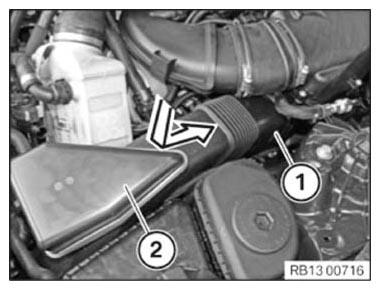

6. Remove intake port on left and right
   NOTE: Description is for left component only. Procedure on the right side is identical.
   • Push in latch mechanism (1).
   • Feed out intake port (2) upwards.

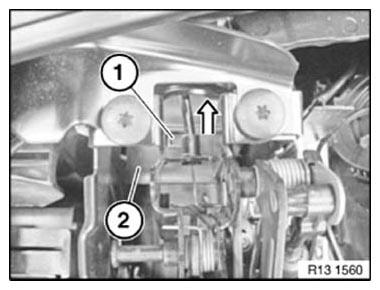

     Fig 6: Removing Intake Port

     Courtesy of BMW OF NORTH AMERICA, INC.

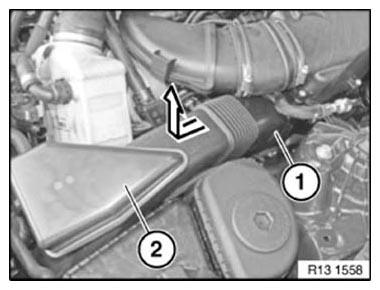

   • Push in latch mechanism (1).
   • Detach intake port (2) towards rear and remove.
     Fig 7: Detaching Intake Port Toward Rear

     Courtesy of BMW OF NORTH AMERICA, INC.

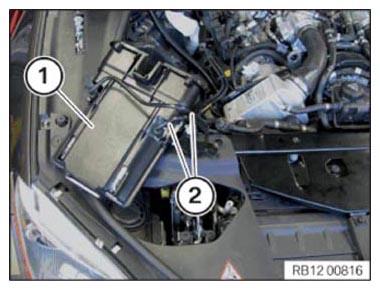

7. Remove intake silencer housing on left and right
   NOTE: Description is for left component only. Procedure on the right side is identical.

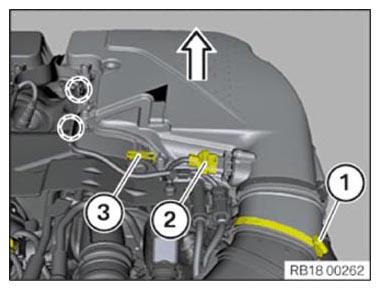

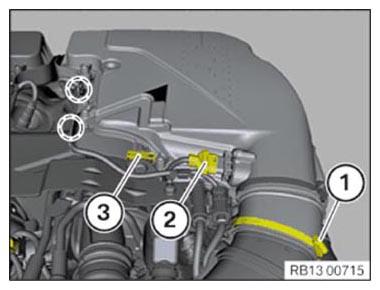

   • Unfasten clamp (1).
   • Disconnect connector (2) at the hot film air mass meter.
   • Loosen clamp (3).
   • Unclip oxygen sensor cable from intake silencer housing.
   • Detach the intake air filter housing from the intake port and pull off upwards.
     Fig 8: Removing Air Intake Filter Housing

     Courtesy of BMW OF NORTH AMERICA, INC.
8. Remove the electronics box cover
   • Loosen screws (1).
   • Remove electronics box cover (2).

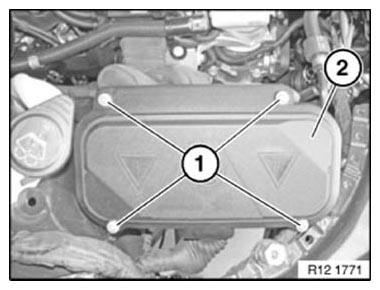

     Fig 9: Identifying Electronics Box Cover And Screws

     Courtesy of BMW OF NORTH AMERICA, INC.
9. Remove electronics box partially

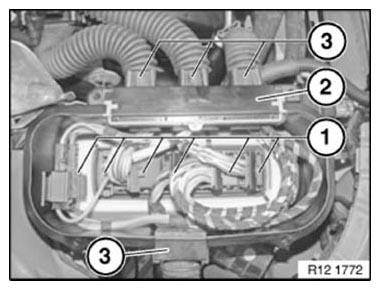

   • Unlock and remove all connectors (1) from control unit.
   • Unclip grommet hold-down device (2) and remove.
   • Detach rubber grommets (3) from electronics box. Place wiring harnesses to one side.
     Fig 10: Identifying Connectors, Hold-Down Device, And Rubber Grommets

     Courtesy of BMW OF NORTH AMERICA, INC.

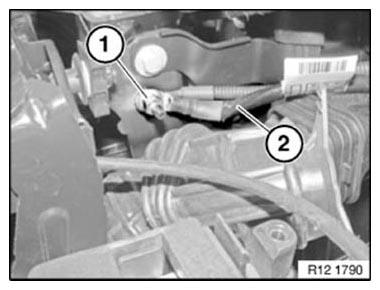

   • Unfasten nut (1).
   • Detach grounding cable (2).
     Fig 11: Identifying Battery Earth Lead And Nut

     Courtesy of BMW OF NORTH AMERICA, INC.

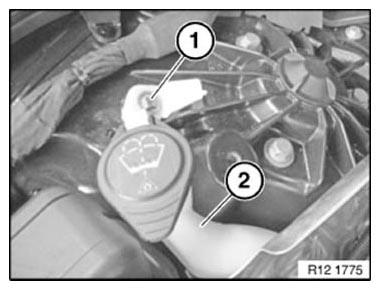

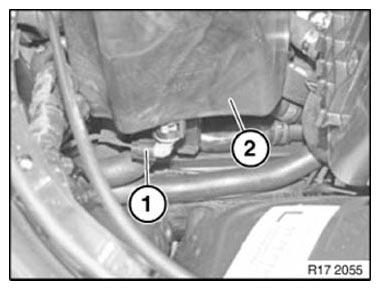

   • Loosen screw (1).
   • Lay filler neck (2) for windscreen washer fluid to one side.
     Fig 12: Identifying Filler Neck And Screw

     Courtesy of BMW OF NORTH AMERICA, INC.
   • Loosen screws (1).
   • Unclip coolant lines from clamp (2) on the electronics box (3).
     Fig 13: Identifying Electronics Box, Clamp, And Screws

     Courtesy of BMW OF NORTH AMERICA, INC.
     NOTE: Risk of damage! Do not under any circumstances kink or bend coolant lines.
   • Feed out complete electronics box (1) along with control unit and coolant lines (2) carefully upwards and put to one side.
     Fig 14: Identifying Electronics Box And Coolant Lines

     Courtesy of BMW OF NORTH AMERICA, INC.

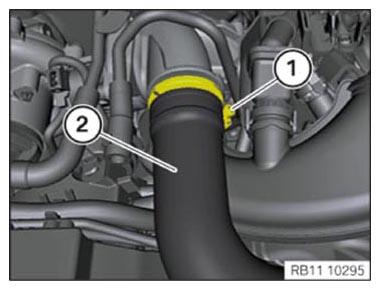

10. Release left charge air hose on exhaust turbocharger

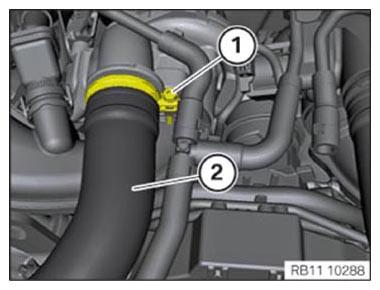

    • Unfasten clamp (1).
    • Bend charge air pipe (2) slightly to the side.
      Fig 15: Identifying Charge Air Pipe And Clamp

      Courtesy of BMW OF NORTH AMERICA, INC.
11. Release right charge air hose on exhaust turbocharger
    • Unfasten clamp (1).
    • Bend charge air pipe (2) slightly to the side.
      Fig 16: Identifying Charge Air Pipe And Clamp

      Courtesy of BMW OF NORTH AMERICA, INC.

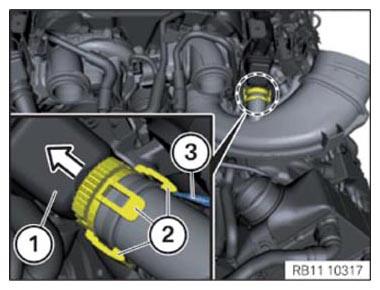

12. Remove left clean air pipe.

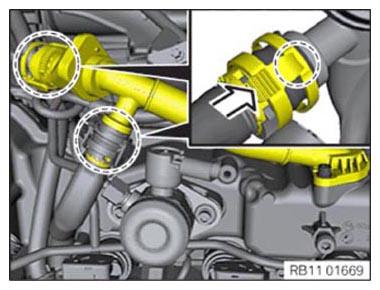

    • Version 1:
      1. Unlock the retainer.
      2. At the same time, pull off connecting line from clean air pipe.
         Fig 17: Unlocking Retainer And Pulling Off Connecting Line

         Courtesy of BMW OF NORTH AMERICA, INC.

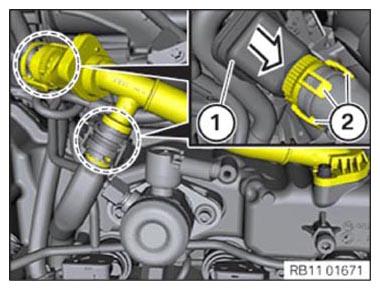

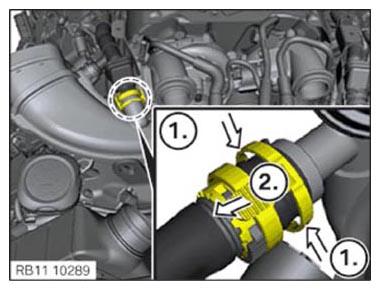

    • Version 2:

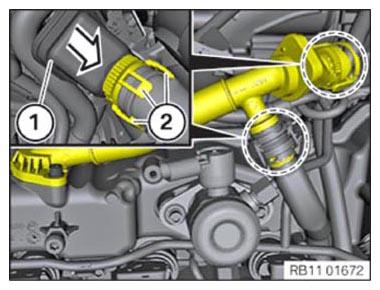

      1. Lightly pull line (1) in the direction of the arrow.

         Simultaneously, unlock the latch mechanisms (2) one after the other using a screwdriver (3).

         Pull off connecting line from clean air pipe.

         Fig 18: Unlocking Latch Mechanisms And Pulling Off Connecting Line

         Courtesy of BMW OF NORTH AMERICA, INC.

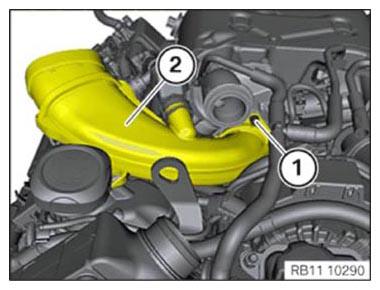

    • Loosen screw (1).
    • Pull clean air pipe (2) from exhaust turbocharger.

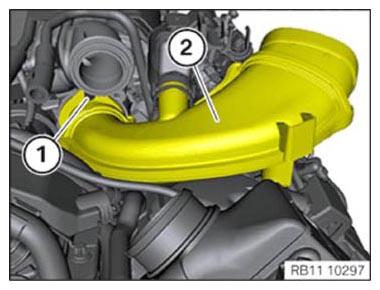

      Fig 19: Identifying Clean Air Pipe And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.
13. Remove right clean air pipe
    • Version 1:
      1. Unlock the retainer.
      2. At the same time, pull off connecting line from clean air pipe.
         Fig 20: Unlocking Retainer And Pulling Off Connecting Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:
      1. Lightly pull line (1) in the direction of the arrow.

         Simultaneously, unlock the latch mechanisms (2) one after the other using a screwdriver (3).

         Pull off connecting line from clean air pipe.

         Fig 21: Unlocking Latch Mechanisms And Pulling Off Connecting Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Loosen screw (1).
    • Pull clean air pipe (2) from exhaust turbocharger.
      Fig 22: Identifying Clean Air Pipe And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.

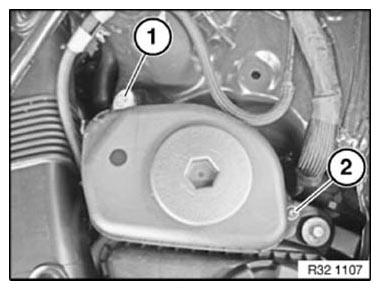

14. Partly remove oil reservoir for hydraulic steering
    • Remove screw (1) on wheel arch.
    • Release screw (2) on expansion tank.
    • Remove washers.
    • Carefully lift oil reservoir and place to one side.
      Fig 23: Identifying Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
15. Disconnect coolant hoses on expansion tank.
    • Disconnect coolant hoses on expansion tank using generally available disconnecting tools.

      E.g. HAZET disconnect pliers (see table).

      HAZET no.:	Description
      4590-1	Length of disconnect pliers (mm): 150
      4590-2	Length of disconnect pliers (mm): 180
      4590-3	Length of disconnect pliers (mm): 253
      4590/2	Disconnect pliers set
      4590/3	Disconnect pliers set

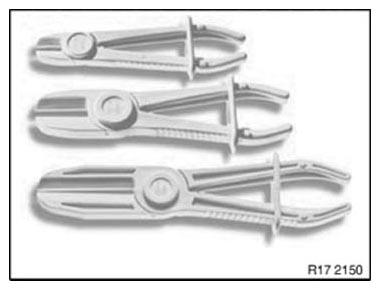

      Fig 24: Identifying HAZET Pliers Set

      Courtesy of BMW OF NORTH AMERICA, INC.

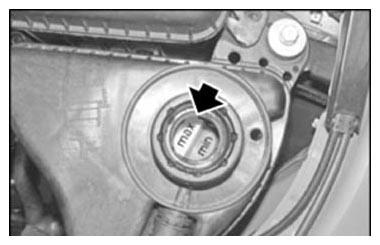

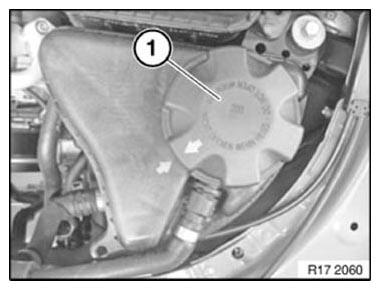

16. Remove coolant expansion tank
    • Release screw (1).
    • Release and disconnect coolant hoses (2).
    • Raise expansion tank (3)

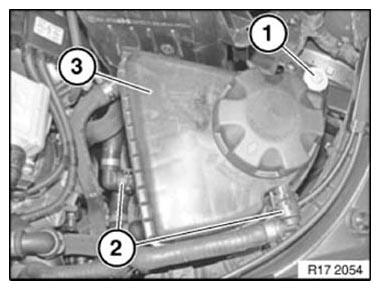

      Fig 25: Identifying Expansion Tank, Coolant Hoses And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Unlock connector (1) on coolant level sensor and disconnect.
    • Remove expansion tank (2).
      Fig 26: Identifying Expansion Tank And Connector

      Courtesy of BMW OF NORTH AMERICA, INC.
17. Partially remove heater valve for heating and air-conditioning unit

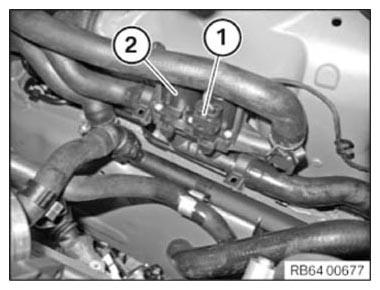

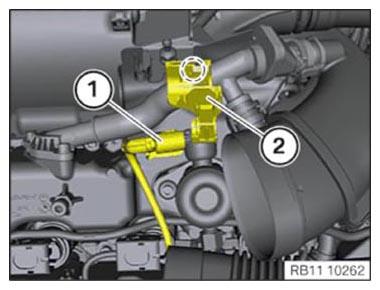

    • Disconnect plug connection (1).
    • Pull water valve (2) upwards out of holders.
      Fig 27: Identifying Plug Connection And Water Valve

      Courtesy of BMW OF NORTH AMERICA, INC.

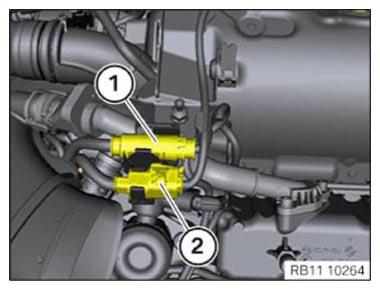

18. Remove oxygen sensor connector holder/left high pressure pump connector
    • Unclip connector (1) and (2) from holder.
    • Unlock and disconnect connectors (1) and (2).

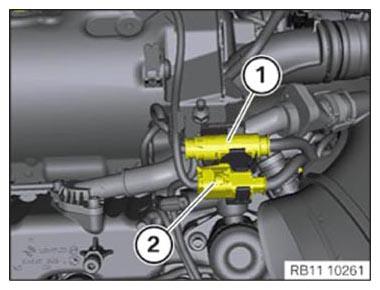

      Fig 28: Identifying Connectors

      Courtesy of BMW OF NORTH AMERICA, INC.

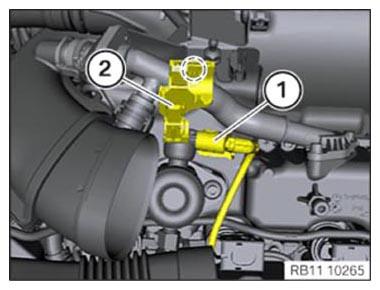

    • Unlock and disconnect connector (1).
    • Unlock holder (2) and feed out upwards.
      Fig 29: Identifying Connector And Holder

      Courtesy of BMW OF NORTH AMERICA, INC.
19. Remove holder of oxygen sensor connector/high pressure pump connector, right
    • Unclip connector (1) and (2) from holder.
    • Unlock and disconnect connectors (1) and (2).
      Fig 30: Identifying Connectors

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Unlock and disconnect connector (1).
    • Unlock holder (2) and feed out upwards.
      Fig 31: Identifying Connector And Holder

      Courtesy of BMW OF NORTH AMERICA, INC.

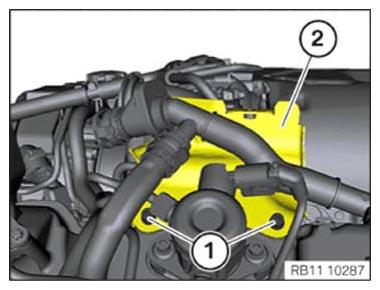

20. Remove carrier plate
    • Loosen screws (1) and (2).
    • Remove carrier plate (3) upwards.

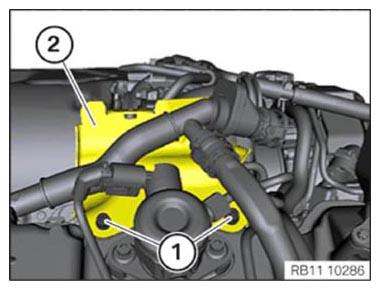

      Fig 32: Identifying Carrier Plate And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
21. Remove left carrier plate holder
    • Loosen screws (1).
    • Feed out left carrier plate holder (2) upwards.
      Fig 33: Identifying Carrier Plate Holder And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
22. Remove right carrier plate holder
    • Loosen screws (1).
    • Feed out right carrier plate holder (2) upwards.
      Fig 34: Identifying Carrier Plate Holder And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.

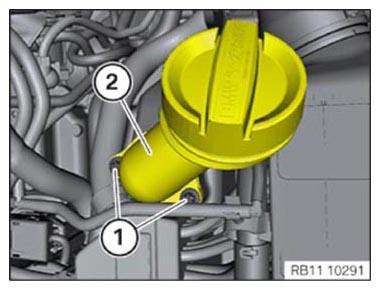

23. Remove oil filler neck
    • Loosen screws (1).
    • Remove oil filler neck (2).
      Fig 35: Identifying Oil Filler Neck And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.

    KEY PROCESSES:

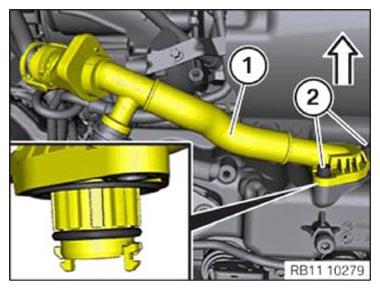

24. Remove right connecting line
    • Version 1:
      1. Unlock the retainer.
      2. Simultaneously pull off the engine ventilation line from the actuating wire.

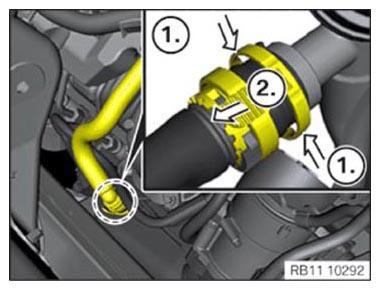

         Fig 36: Unlocking Retainer And Pulling Off Engine Ventilation Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:

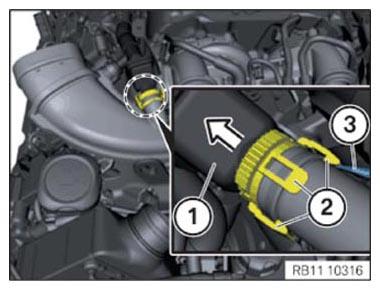

      1. Lightly pull line (1) in the direction of the arrow.

         Simultaneously, unlock the latch mechanisms (2) one after the other using a screwdriver (3).

         Pull off the engine ventilation line from the connecting line.

         Fig 37: Unlocking Latch Mechanisms And Pulling Off Engine Ventilation Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Loosen screws (2).
    • Detach the connecting line (1) from the cylinder head cover by pulling it upward.
      Fig 38: Detaching Connecting Line

      Courtesy of BMW OF NORTH AMERICA, INC.

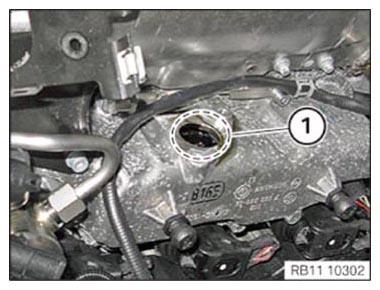

25. Visual inspection for loose parts in the cylinder head cover
    • Conduct visual inspection in marked area (1) to check for loose parts.
    • Remove any loose parts that may be on the oil separator.
      Fig 39: Identifying Area For Visual Inspection

      Courtesy of BMW OF NORTH AMERICA, INC.

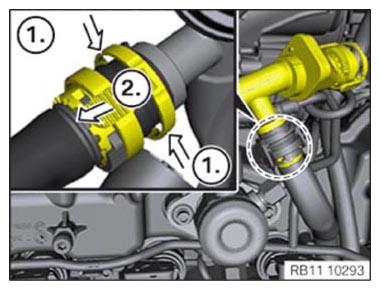

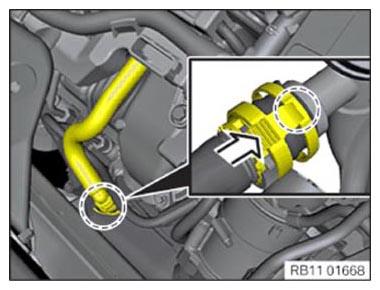

26. Remove engine ventilation line for cylinders 1-4 partially
    • Unlock the retainer.
    • Simultaneously pull off the ventilation line from the intake system.
      Fig 40: Unlocking Retainer And Pulling Off Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.

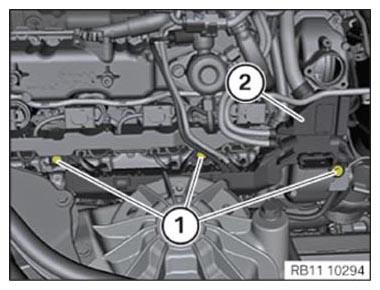

    • Loosen screws (1).
    • Lift the engine wiring harness (2) slightly and remove the engine ventilation line.
      Fig 41: Identifying Engine Wiring Harness And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.

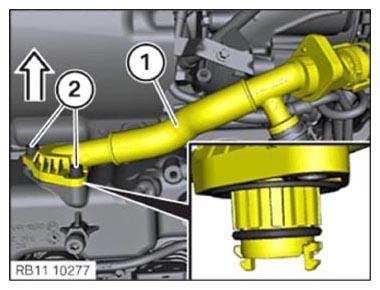

27. Remove left connecting line
    • Version 1:
      1. Unlock the retainer.
      2. Simultaneously pull off the engine ventilation line from the intake system.
         Fig 42: Unlocking Retainer And Pulling Off Engine Ventilation Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:

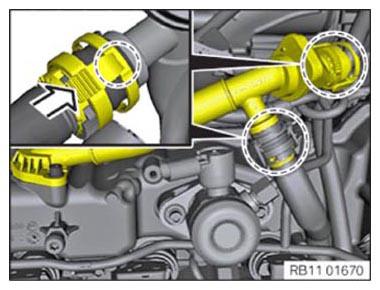

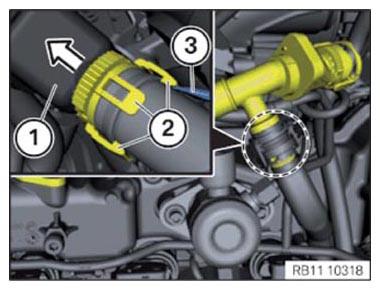

      1. Lightly pull line (1) in the direction of the arrow.

         Simultaneously, unlock the latch mechanisms (2) one after the other using a screwdriver (3).

         Pull off the engine ventilation line from the connecting line.

         Fig 43: Unlocking Latch Mechanisms And Pulling Off Engine Ventilation Line

         Courtesy of BMW OF NORTH AMERICA, INC.
    • Loosen screws (2).
    • Detach the connecting line (1) from the cylinder head cover by pulling it upward.
      Fig 44: Detaching Connecting Line

      Courtesy of BMW OF NORTH AMERICA, INC.
28. Visual inspection for loose parts in the cylinder head cover
    • Conduct visual inspection in marked area (1) to check for loose parts.
    • Remove any loose parts that may be on the oil separator.
      Fig 45: Identifying Area For Visual Inspection

      Courtesy of BMW OF NORTH AMERICA, INC.
29. Remove engine ventilation line for cylinders 5-8 partially
    • Unlock the retainer.
    • Simultaneously pull off the engine ventilation line from the intake system.
    • Feed out and remove engine ventilation line.
      Fig 46: Unlocking Retainer And Pulling Off Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
30. Install engine ventilation line for cylinders 5-8 partially

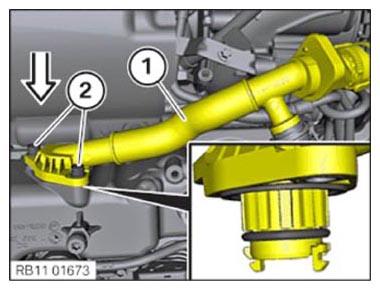

    • Position engine ventilation line.
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert the engine ventilation line onto the intake system in the direction of the arrow.
      Fig 47: Inserting Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
31. Install left connecting line
    • Push connecting line (1) from above into cylinder head cover.
    • Tighten down screws (2).
      TIGHTENING TORQUES SPECIFICATIONS



      Connecting line on cylinder head cover
      M6 x 18	10 Nm

      Fig 48: Installing Left Connecting Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 1:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert connecting line onto engine ventilation line.
      Fig 49: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert connecting line onto engine ventilation line.
      Fig 50: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
32. Install engine ventilation line for cylinders 1-4 partially
    • Slightly lift engine wiring harness.

      Feed in engine ventilation line and position it properly.

      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert the engine ventilation line onto the intake system in the direction of the arrow.
      Fig 51: Inserting Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Position engine wiring harness (2).
    • Tighten the screws (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Engine wiring harness to engine
    M8	10 Nm

    Fig 52: Identifying Engine Wiring Harness And Screws

    Courtesy of BMW OF NORTH AMERICA, INC.
33. Install right connecting line
    • Push connecting line (1) from above into cylinder head cover.
    • Tighten down screws (2).
      TIGHTENING TORQUES SPECIFICATIONS



      Connecting line on cylinder head cover
      M6 x 18	10 Nm

      Fig 53: Pushing Connecting Line Into Cylinder Head Cover

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 1:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert connecting line onto engine ventilation line.
      Fig 54: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Insert connecting line onto engine ventilation line.
      Fig 55: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.

    POST PROCESSES:

34. Install oil filler neck
    • Position oil filler neck (2).
    • Tighten the screws (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Oil filler neck on cylinder head cover
    M6 x 20	8 Nm

    Fig 56: Identifying Oil Filler Neck And Screws

    Courtesy of BMW OF NORTH AMERICA, INC.
35. Install right carrier plate holder
    • Position right carrier plate holder (2).
    • Tighten the screws (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Carrier plate holder on cylinder head cover
    M6 x 20	8 Nm

    Fig 57: Identifying Carrier Plate Holder And Screws

    Courtesy of BMW OF NORTH AMERICA, INC.
36. Install left carrier plate holder
    • Position left carrier plate holder (2).
    • Tighten the screws (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Carrier plate holder on cylinder head cover
    M6 x 20	8 Nm

    Fig 58: Identifying Carrier Plate Holder And Screws

    Courtesy of BMW OF NORTH AMERICA, INC.
37. Install carrier plate
    • Position carrier plate (3).
    • Tighten down screws (1) and (2).
      Fig 59: Identifying Carrier Plate And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
38. Install oxygen sensor connector holder/right high pressure pump connector
    • Connect holder (2) to carrier plate from above.
    • Connect connector (1).
      Fig 60: Identifying Connector And Holder

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Connect connectors (1) and (2).
    • Clip connectors (1) and (2) in the holder.
      Fig 61: Identifying Connectors

      Courtesy of BMW OF NORTH AMERICA, INC.
39. Install oxygen sensor connector holder/left high pressure pump connector
    • Connect holder (2) to carrier plate from above.
    • Connect connector (1).
      Fig 62: Identifying Connector And Holder

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Connect connectors (1) and (2).
    • Clip connectors (1) and (2) in the holder.
      Fig 63: Identifying Connectors

      Courtesy of BMW OF NORTH AMERICA, INC.
40. Install water valve for heater
    • Check that the rubber mount (1) and guide lug (2) are properly seated in holders (3).
      Fig 64: Identifying Rubber Mount, Guide Lug And Holders

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Install water valve (2) in the holders.
    • Connect connector (1).
      Fig 65: Identifying Plug Connection And Water Valve

      Courtesy of BMW OF NORTH AMERICA, INC.
41. Install coolant expansion tank
    • Position expansion tank (2) in the dedicated area.
    • Connect connector (1) to coolant level switch and loc
      Fig 66: Identifying Expansion Tank And Connector

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Fully insert expansion tank (3).
    • Connect and lock coolant hoses (2).
    • If required, remove disconnect pliers from coolant hoses (2).
    • Tighten down screw (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Expansion tank to body
    M6	10 Nm

    Fig 67: Identifying Expansion Tank, Coolant Hoses And Screw

    Courtesy of BMW OF NORTH AMERICA, INC.
42. Fasten oil reservoir for hydraulic steering
    • Position oil reservoir.
    • Install washers.
    • Release screw 2 on expansion tank.
      TIGHTENING TORQUES SPECIFICATIONS



      Oil reservoir to coolant expansion tank/holder
      M6	8 Nm

    • Tighten screw 1 on wheel arch.
      Fig 68: Identifying Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
      TIGHTENING TORQUES SPECIFICATIONS



      Oil reservoir to wheel arch
      M6 x 37	10 Nm

43. Install right clean air pipe
    • Check the gasket on the clean air pipe.
    • Replace faulty gasket.
    • Position clean air pipe (2) on exhaust turbocharger.
    • Tighten down screw (1).
      TIGHTENING TORQUES SPECIFICATIONS



      Clean air pie to turbocharger
      M6	10 Nm

      Fig 69: Identifying Clean Air Pipe And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 1:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Attach connecting line to clean air pipe.
      Fig 70: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Attach connecting line (1) with the latch mechanisms (2) to clean air pipe.
      Fig 71: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
44. Install left clean air pipe
    • Check the gasket on the clean air pipe.
    • Replace faulty gasket.
    • Position clean air pipe (2) on exhaust turbocharger.
    • Tighten down screw (1).
      TIGHTENING TORQUES SPECIFICATIONS



      Clean air pie to turbocharger
      M6	10 Nm

      Fig 72: Identifying Clean Air Pipe And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 1:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Attach connecting line to clean air pipe.
      Fig 73: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Version 2:
      NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
    • Attach connecting line (1) with the latch mechanisms (2) to clean air pipe.
      Fig 74: Inserting Connecting Line Onto Engine Ventilation Line

      Courtesy of BMW OF NORTH AMERICA, INC.
45. Fasten right charge air hose on exhaust turbocharger
    • Check gasket between charge air hose and exhaust turbocharger.
    • Replace faulty gasket.
    • Position charge air hose (2) on exhaust turbocharger.
    • Tighten clamp (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Charge air hose to exhaust turbocharger
    Screw clamp	3, 5 Nm

    Fig 75: Identifying Charge Air Pipe And Clamp

    Courtesy of BMW OF NORTH AMERICA, INC.
46. Fasten left charge air hose on exhaust turbocharger
    • Check gasket between charge air hose and exhaust turbocharger.
    • Replace faulty gasket.
    • Position charge air hose (2) on exhaust turbocharger.
    • Tighten clamp (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Charge air hose to exhaust turbocharger
    Screw clamp	3, 5 Nm

    Fig 76: Identifying Charge Air Pipe And Clamp

    Courtesy of BMW OF NORTH AMERICA, INC.
47. Install electronics box
    NOTE: Risk of damage! Do not under any circumstances kink or bend coolant lines.
    • Carefully feed in electronics box (1) with coolant lines (2).
    • Feed in the guide (3) of the electronics box (1) into the engine support.
      Fig 77: Identifying Electronics Box, Coolant Lines And Guide

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Clip coolant lines to clamp (2) on the electronics box.
    • Tighten the screws (1).
      TIGHTENING TORQUES SPECIFICATIONS



      Electronics box, lower section to body
      	8 Nm

      Fig 78: Identifying Electronics Box, Clamp, And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Position filler neck (2) for the windscreen washer fluid.
    • Tighten down screw (1).
      Fig 79: Identifying Filler Neck And Screw

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Tighten nut (1) of the grounding cable (2).
      TIGHTENING TORQUES SPECIFICATIONS



      Grounding cable to ground connection
      M8	21 Nm

      Fig 80: Identifying Battery Earth Lead And Nut

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Attach rubber grommets (3) in electronics box.
    • Connect all connectors (1) on control unit and lock.
    • Clip grommet hold-down device (2).
      Fig 81: Identifying Connectors, Hold-Down Device, And Rubber Grommets

      Courtesy of BMW OF NORTH AMERICA, INC.
48. Install the electronics box cover
    • Position electronics box cover (2).
    • Tighten the screws (1).
      Fig 82: Identifying Electronics Box Cover And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
49. Install left and right intake silencer housing
    NOTE: Description is for left component only. Procedure on the right side is identical.
    • Connect intake silencer housing on intake port.
    • Clip oxygen sensor cable in on intake silencer housing.
    • Install clamp (3).
    • Connect connector (2) at the hot film air mass meter.
    • Tighten clamp (1).
    TIGHTENING TORQUES SPECIFICATIONS



    Clamp to air duct
    	3 Nm

    Fig 83: Identifying Connector And Clamps

    Courtesy of BMW OF NORTH AMERICA, INC.
50. Install the left and right intake port
    NOTE: Description is for left component only. Procedure on the right side is identical.
    • Insert intake port (2) towards the front.

      » Latch mechanism (1) is locked.

      Fig 84: Inserting Intake Port

      Courtesy of BMW OF NORTH AMERICA, INC.
    • Feed in intake port (2) towards the bottom.

      » Latch mechanism (1) is locked.

      Fig 85: Installing Intake Port

      Courtesy of BMW OF NORTH AMERICA, INC.
51. Install the front left and right strut brace
    NOTE: Description is for left component only. Procedure on the right side is identical.
    NOTE: Ensure correct installation position of the strut brace. Screw with washer is fitted at connection, front top.
    • Position strut brace (2).
    • Tighten screws (1) with torque and then tighten them using special tool 0 490 504 (00 9 120)  .
      Fig 86: Identifying Strut Brace And Screws

      Courtesy of BMW OF NORTH AMERICA, INC.
    TIGHTENING TORQUES SPECIFICATIONS



    M10 x 47	Jointing torque	30 Nm
    Replace screws	Angle of rotation	90 °

52. Install acoustic cover
    NOTE: Ensure correct fit!
    • Insert acoustic cover (1) into existing rubber guides.
      Fig 87: Identifying Acoustic Cover

      Courtesy of BMW OF NORTH AMERICA, INC.
53. Fill coolant in the expansion tank
    CAUTION: Materials harmful to health.
    Contact with fluids harmful to health!

    • Note and follow safety information on containers.
    • Conduct all work in appropriate personal protective equipment only.
    NOTE: For dirt contamination of the cooling system (e.g. by engine oil), the cooling system must be rinsed with water until all dirt contamination is removed!
    NOTE: Never reuse used coolant!
    NOTE: Use only recommended coolant. Observe mixture ratio. Observe capacities. Observe bleeding instructions!

    Fig 88: Identifying Max And Min Level

    Courtesy of BMW OF NORTH AMERICA, INC.


    For more information see: COOLANT, CHECKING COOLING SYSTEM
    • Vent cooling system.
    • Screw sealing cap (1) to coolant expansion tank. In this process, close the sealing cap (1) until the arrows are aligned.
    • Check function of cooling system.
    • Visually inspect cooling system for tightness.
      Fig 89: Identifying Sealing Cap

      Courtesy of BMW OF NORTH AMERICA, INC.
54. Connect the battery ground cable
    • Position battery earth lead with IBS on negative terminal.
    • Tighten nut (1).
    TIGHTENING TORQUES SPECIFICATION



    Battery earth lead
    M6	5 Nm

    Fig 90: Identifying Nut Of Battery Ground Cable

    Courtesy of BMW OF NORTH AMERICA, INC.
55. Install luggage compartment of storage compartment
    NOTE: Graphic similar.
    • Install luggage compartment of storage compartment against the direction of arrow.
      Fig 91: Removing Storage Compartment

      Courtesy of BMW OF NORTH AMERICA, INC.
56. Install luggage compartment floor trim panel
    • Place luggage compartment floor trim panel (1) in the direction opposite to arrow.
      Fig 92: Removing Luggage Compartment Floor Trim Panel

      Courtesy of BMW OF NORTH AMERICA, INC.
