11 37 008 Removing and installing/replacing right eccentric shaft (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480
Cylinder bank 1

(cylinder bank 1 to 4)

Necessary preliminary tasks:

Remove engine. See 11 00 598 REMOVING AND INSTALLING ENGINE ON FRONT AXLE (S63T 0) WITH GS7D36SG TRANSMISSION .
REMOVE servomotor for eccentric shaft.
Remove right INTERMEDIATE LEVER
Remove right INTAKE CAMSHAFT

IMPORTANT: All intake side bearing supports are marked and may only be reinstalled at the same position.

Unfasten screws (2 and 3).

Remove intake side bearing support (1) and place on special tool 11 4 480 in an orderly fashion.

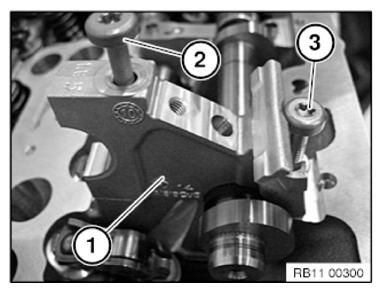

Fig 1: Identifying Intake Side Bearing Support And Screws

G10043501

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off eccentric shaft (1).

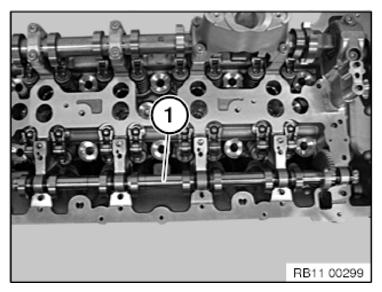

Fig 2: Identifying Eccentric Shaft

G10043502

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up the eccentric shafts.
Identification: 14 = cylinders 1 to 4.
Identification: 58 = cylinders 5 to 8.

Check fitting bushes (1) for damage and replace if applicable.

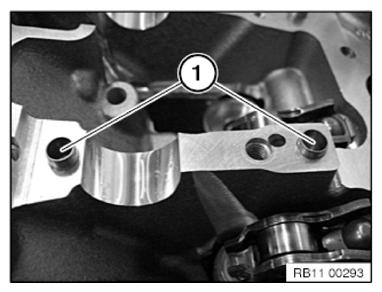

Fig 3: Identifying Fitting Bushes

G10043503

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intermediate shaft 14 for cylinders 1-4.

Place bearing support (1) in position.

Insert screws (2 and 3).

Tightening torque: 11 37 1AZ

Fig 4: Identifying Bearing Support And Screws

G10043504

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
