11 36 047 Removing and installing/replacing intake and exhaust camshaft adjuster on left side (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

(cylinder bank 5 to 8)

Necessary preliminary tasks:

IMPORTANT: If special tool can not be fitted, hexagon head of relevant camshafts must be counter-supported when releasing central bolt.

Release central bolts (1 and 2) of intake adjuster and exhaust camshaft adjuster.

Installation note:

Replace central bolts after releasing.

Fig 1: Identifying Central Bolts Of Intake And Exhaust Camshaft Adjuster
G10043337Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Fig 2: Coating Contact Face Of New Central Bolt With Copper Paste
G10043338Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release special tool 2 249 162 at knurled screws and remove.

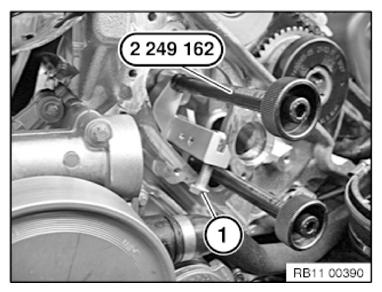

Fig 3: Mounting Special Tool (2 249 162) And Pretensioning Screw
G10043339Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove upper tensioning rail (2).

NOTE: Better illustration without special tools shown. Illustrations shows N63 engine.

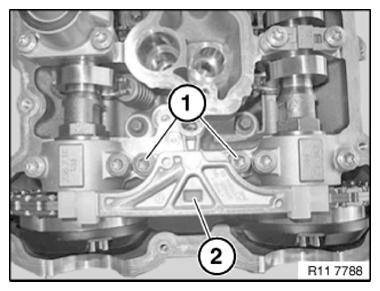

Fig 4: Identifying Upper Tensioning Rail And Screws
G10043340Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (2) of inlet adjustment unit.

Installation note:

Replace central bolts after releasing.

Fig 5: Identifying Inlet Adjustment Unit Central Bolt
G10043341Courtesy of BMW OF NORTH AMERICA, INC.

Detach inlet adjustment unit (1) in direction of arrow from inlet camshaft.

NOTE:

Illustration shows: N63 engine

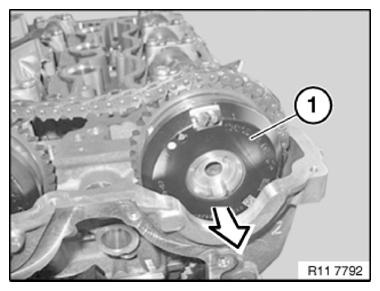

Fig 6: Detaching Inlet Adjustment Unit
G10043342Courtesy of BMW OF NORTH AMERICA, INC.

Feed out inlet adjustment unit (2) from timing chain (1).

Lift out inlet adjustment unit (2).

NOTE:

Illustration shows: N63 engine

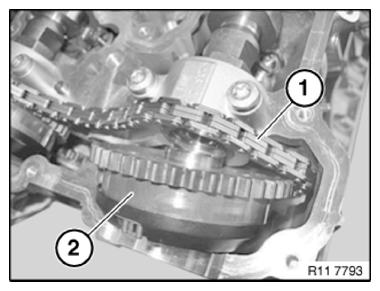

Fig 7: Identifying Inlet Adjustment Unit And Timing Chain
G10043343Courtesy of BMW OF NORTH AMERICA, INC.

Detach exhaust adjustment unit (1) in direction of arrow from exhaust camshaft.

NOTE:

Illustration shows: N63 engine

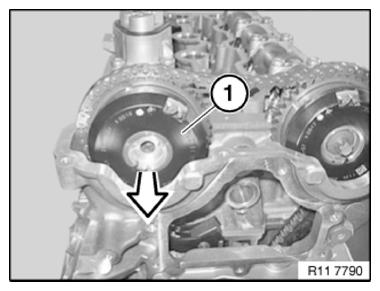

Fig 8: Detaching Exhaust Adjustment Unit From Exhaust Camshaft
G10043344Courtesy of BMW OF NORTH AMERICA, INC.

Feed out exhaust adjustment unit (2) from timing chain (1).

Lift out exhaust adjustment unit (2).

NOTE:

Illustration shows: N63 engine

Fig 9: Identifying Exhaust Adjustment Unit And Timing Chain
G10043345Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Danger of mix-up:
Intake and exhaust camshaft adjusters are different.
Mixing up the inlet and exhaust adjustment units will cause damage to the engine.
  1. Intake adjuster is marked with {EIN}  .
  2. Exhaust camshaft adjuster is marked with {AUS}  .

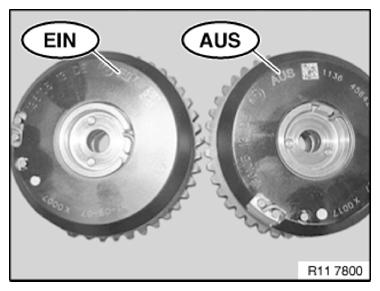

    Fig 10: Identifying Intake And Exhaust Adjuster With Mark
    G10043346Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Fig 11: Coating Contact Face Of New Central Bolt With Copper Paste
G10043347Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Position of adjustment units in relation to timing chain can be freely selected.

Feed adjuster into timing chain and position on camshafts.

Insert central bolts (1 and 2) on adjustment units without gaps.

Release central bolts (1 and 2) by 45°  .

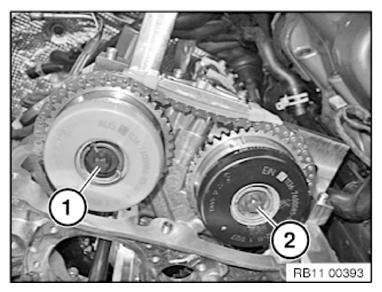

Fig 12: Identifying Adjustment Units Central Bolts
G10043348Courtesy of BMW OF NORTH AMERICA, INC.

Fit sliding rail (2) and secure with screws (1).

Tightening torque: 11 31 4AZ .

NOTE:

Illustration shows: N63 engine

Fig 13: Identifying Sliding Rail With Screws
G10043349Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 144 on intake camshaft.

Secure special tool 2 249 144 with bolts (1).

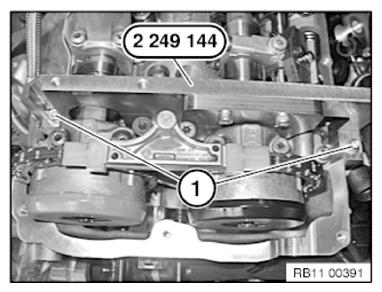

Fig 14: Checking Timing Adjustment - Intake Camshaft
G10043350Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 159 on exhaust camshaft.

Screw special tool 2 249 159 to special tool 2 249 140 .

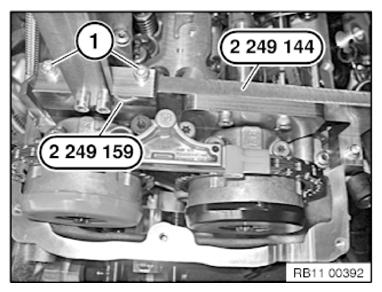

Fig 15: Checking Timing Adjustment - Exhaust Camshaft
G10043351Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 2 249 162 .

Pretension timing chain with special tool 2 249 162 .

Pretension timing chain with special tool 00 9 250 or 00 9 460 to 0.6 Nm  .

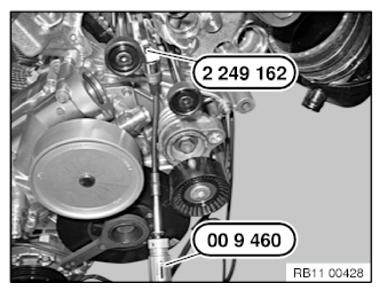

Fig 16: Pretensioning Special Tool (2 249 162)
G10043352Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolts (1 and 2) by 45°  .

Fig 17: Identifying Central Bolts
G10043353Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

IMPORTANT: Crank engine back at central bolt through 45°.
Fig 18: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10043354Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect special tools 11 9 190 from gear case cover.

Rotate crankshaft in direction of engine rotation at central bolt until special tool 11 8 570 comes into contact in front of special tool 11 9 190 .

Fig 19: Positioning Special Tools
G10043355Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

Fig 20: Identifying Connecting Rod Bolts And Crankshaft
G10043356Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 11 4 350 .

Jointing torque 5 Nm  .

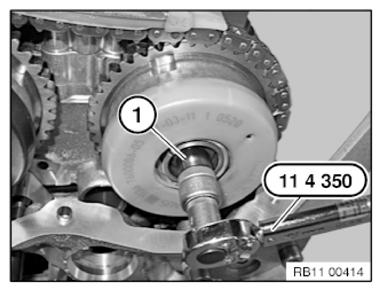

Fig 21: Installing Central Bolt Of Intake Camshaft Using Special Tool 11 4 350
G10043357Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190 .

Fig 22: Positioning Special Tools
G10043358Courtesy of BMW OF NORTH AMERICA, INC.

Turn engine at central bolt further until special tool 11 9 190 can be positioned in gear case cover.

The engine is now 150° before TDC firing position cylinder 1.

Fig 23: Turning Engine To 150° Crankshaft Position Before TDC Firing Position Of Cylinder 1
G10043359Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

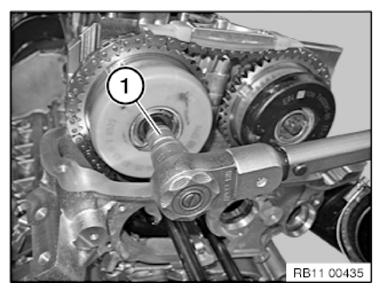

Fig 24: Tightening Exhaust Camshaft Central Bolt
G10043360Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

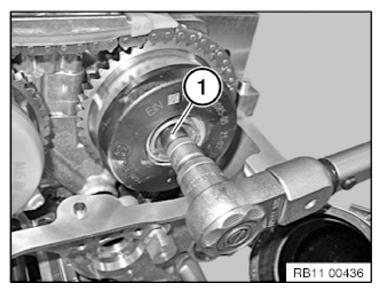

Fig 25: Tightening Intake Camshaft Central Bolt
G10043361Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°  .

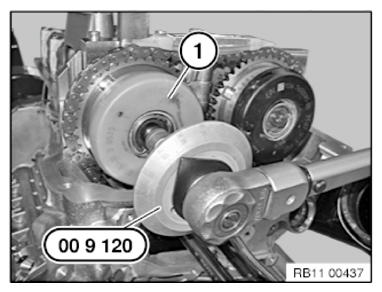

Fig 26: Tightening Central Bolt Of Exhaust Camshaft Using Special Tool 00 9 120
G10043362Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120 .

TORSION ANGLE ADJUSTMENT90°  .

Remove special tool 2 249 117 .

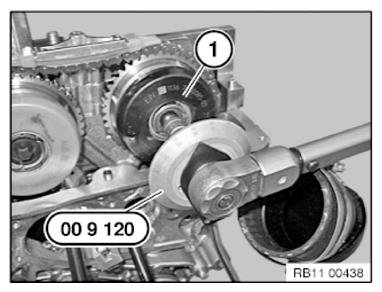

Fig 27: Tightening Central Bolt Of Exhaust Camshaft Using Special Tool 00 9 120
G10043363Courtesy of BMW OF NORTH AMERICA, INC.

Check TIMING  again.

Remove all special tools.
