11 34 560 Replacing all valve stem seals (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Risk of damage to sealing lip on valve stem seal.
Fit new valve stem seals only when all valves have been installed.

Necessary preliminary tasks:

Remove all VALVE SPRINGS .

Pull off valve stem seal (1) with special tool 11 1 480 .

Simultaneous turning and pulling will pull off the valve stem seal.

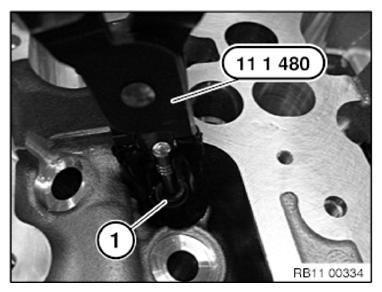

Fig 1: Removing Valve Stem Seal Using Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lubricate valve stem with oil and insert valve.

Installation sleeve 11 1 380 is included in the delivery specification for the valve stem seals.

Fit special tool 11 1 380 .

Coat new valve stem seal (1) with oil and install.

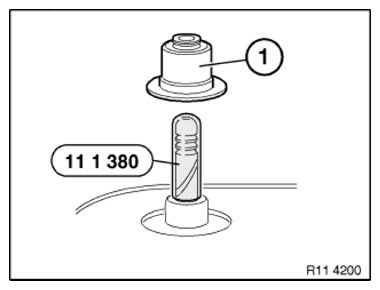

Fig 2: Identifying Valve Stem Seal And Special Tool 11 1 380

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For use on the S63TU engine, the special tool 11 6 380 must be remachined according to the sketch with a 6.2 mm drill bit dia. to a depth of A = approx. 45 mm.
This modification has already been taken into account for reordering.

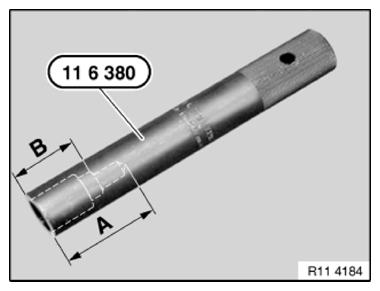

Fig 3: Identifying Special Tool 11 6 380 Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Manually press on valve stem seal as far as it will go with special tool 11 6 380 .

NOTE: Illustrations shows N63 engine.

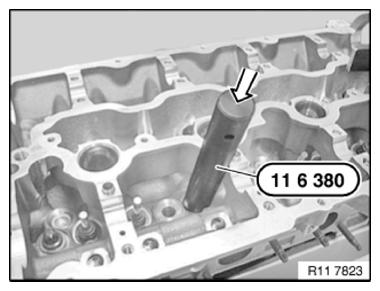

Fig 4: Pressing Valve Stem Seal Using Special Tool 11 6 380

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
