11 41 010 Removing and installing/replacing chain module for oil pump/vacuum pump (N55) - from 03.2012

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

REMOVE CYLINDER HEAD COVER .
Remove all SPARK PLUGS .
Removing oil sump . See REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N55, RWD) or REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (N55, AWD) .
Remove DRIVE BELT .
Remove TENSIONING DEVICE for drive belt.
Remove VIBRATION DAMPER .
Remove SEALING COVER for vacuum pump.
SEALING CAP for oil pump chain tensioner.
Remove CHAIN TENSIONER .
Remove TIMING CHAIN .

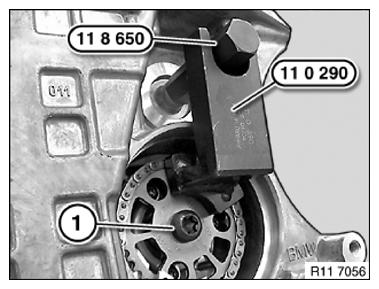

Screw in special tool 11 8 650 on screw connection of belt tensioner on crankcase.

Turn sprocket with central bolt at crankshaft into position until special tool 11 0 290 can be secured.

Simultaneously secure special tool 11 0 290 to sprocket and special tool 11 8 650 .

Release screw (1) for sprocket.

Tightening torque 11 66 2AZ .

Fig 1: Releasing Screw For Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before releasing the central bolt on the oil pump, the hydraulic chain tensioner must be drained.

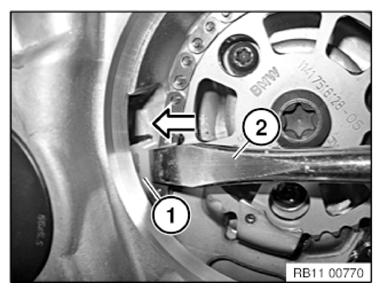

Carefully press tensioning rail (1) with a suitable screwdriver (2) in direction of arrow.

As the oil pressure in the chain tensioner can only be drained pulsating, the tensioning rail (1) must be pressed several times.

Fig 2: Pressing Tensioning Rail Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

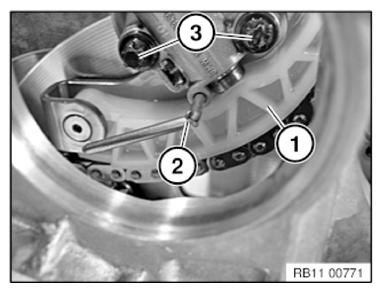

Press the tensioning rail (1) and hold down.

Fix chain tensioner piston in position with a suitable lock pin (2).

Release screws (3).

Tightening torque: 11 41 7AZ .

Fig 3: Securing Chain Tensioner Using Lock Pin

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Sprocket must be blocked in order to release central bolt (1).

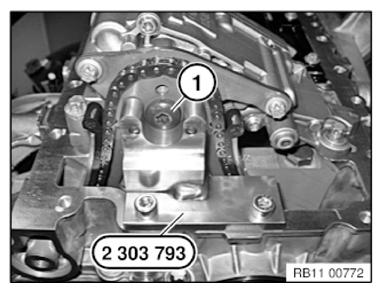

Secure special tool 2 303 793 to crankcase.

Release oil pump central bolt (1).

Tightening torque 11 41 5AZ .

Fig 4: Securing Special Tool 2 303 793 Onto Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

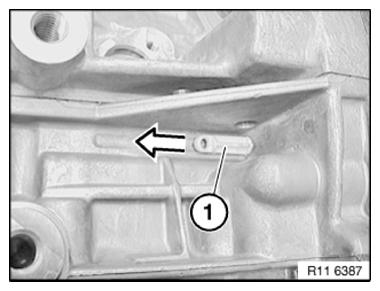

Remove fastener (1) in direction of arrow.

Fig 5: Removing Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

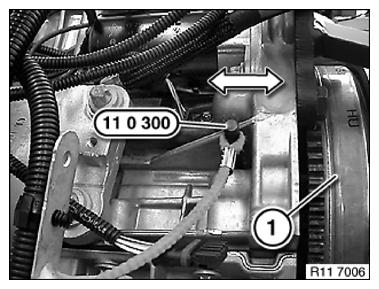

Position flywheel (1) with special tool 11 0 300 in TDC setting.

Fig 6: Positioning Flywheel With Special Tool 11 0 300

Courtesy of BMW OF NORTH AMERICA, INC.

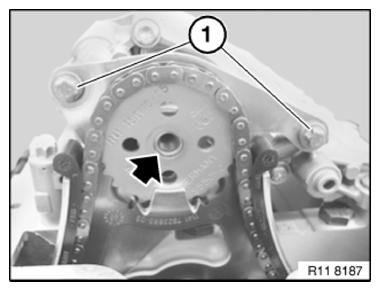

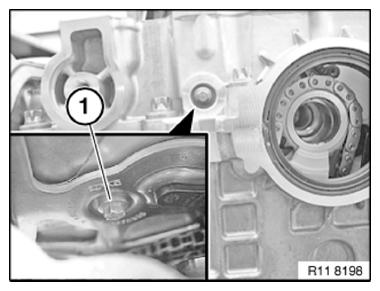

Release aluminum screws (1).

Remove oil pump drive gear from the drive shaft.

Fig 7: Locating Chain Module Aluminum Screws

Courtesy of BMW OF NORTH AMERICA, INC.

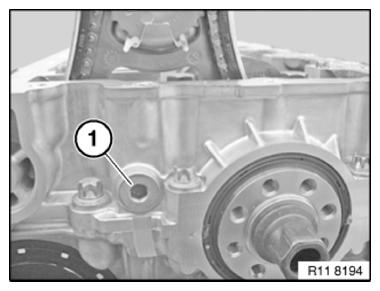

Open screw plug (1).

Tightening torque: 11 11 9AZ .

Installation note:

Replace sealing ring.

Fig 8: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

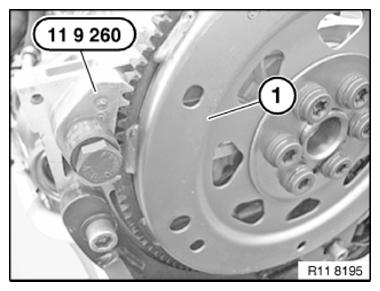

Lock flywheel (1) with special tool 11 9 260 .

Fig 9: Locking Flywheel Using Special Tool 11 9 260

Courtesy of BMW OF NORTH AMERICA, INC.

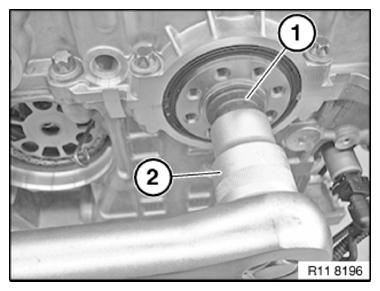

IMPORTANT: Do not remove special tools 11 0 300 and 11 4 280 to release central bolt (1).

Release central bolt (1).

Installation note:

Release central bolt (1) with 3/4 tool (2).

Breakaway torque approx. 500 Nm.

Fig 10: Removing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

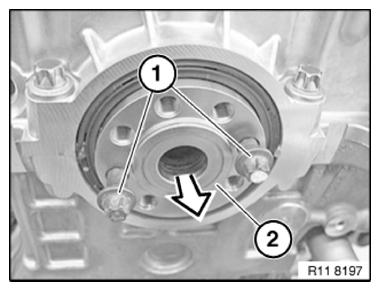

Screw in two screws (1) and remove hub (2) in direction of arrow.

Installation note:

Replace CRANKSHAFT SEAL at front.

Fig 11: Moving Hub On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

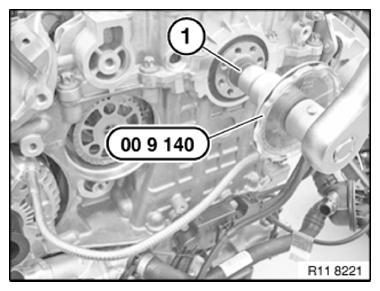

Release aluminum screw (1) with special tool 11 8 640 .

Fig 12: Identifying Aluminum Screw

Courtesy of BMW OF NORTH AMERICA, INC.

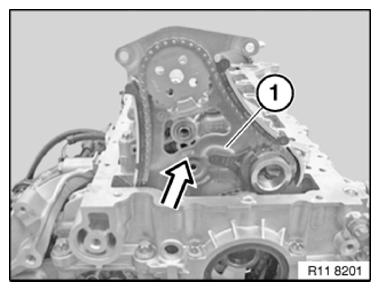

Remove chain module (1) in direction of arrow.

Fig 13: Removing Chain Module

Courtesy of BMW OF NORTH AMERICA, INC.

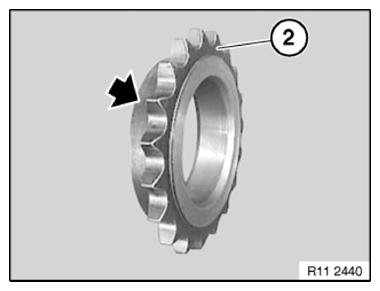

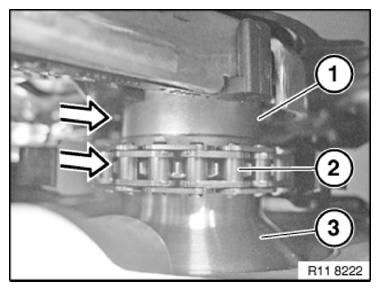

IMPORTANT: Note installation direction of sprocket (2).
Collar (see arrow in illustration) on sprocket (2) points to engine .
Incorrect assembly will result in engine damage .

Fig 14: Locating Collar On Camshaft Sprocket
