11 65 010 Removing and installing/replacing vacuum reservoir (N63O1)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both exhaust turbochargers. See 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63O1) and 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63O1) .
Remove both exhaust manifolds. See 18 40 010 REMOVING AND INSTALLING/RENEWING LEFT EXHAUST MANIFOLD (N63 B40/B44 O 1) and 18 40 020 REMOVING AND INSTALLING/RENEWING RIGHT EXHAUST MANIFOLD (N63 B40/B44 O 1) .
Remove HEAT SHIELD AT BOTTOM .

Release vacuum line (3).

Release screws (1).

Tightening torque: 11 65 10AZ .

Remove vacuum reservoir (2).

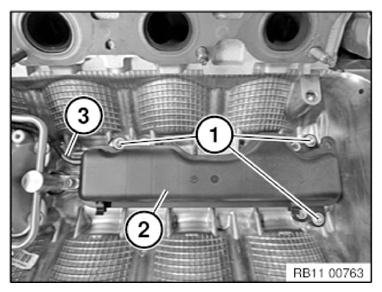

Fig 1: Identifying Vacuum Reservoir And Line, Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check vacuum connections.

Observe BMW diagnosis instructions.
