11 65 185 Removing and installing/renewing heat shield at bottom (N63O1)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both exhaust turbochargers. See 11 65 030 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, LEFT, CYLINDERS 5-8 (N63O1) and 11 65 025 REMOVING AND INSTALLING/REPLACING EXHAUST TURBOCHARGER, RIGHT, CYLINDERS 1-4 (N63O1) .
Remove both exhaust manifolds. See 18 40 010 REMOVING AND INSTALLING/RENEWING LEFT EXHAUST MANIFOLD (N63 B40/B44 O 1) and 18 40 020 REMOVING AND INSTALLING/RENEWING RIGHT EXHAUST MANIFOLD (N63 B40/B44 O 1) .
Remove ALTERNATOR .

Release vacuum line (1) from retaining clip (2).

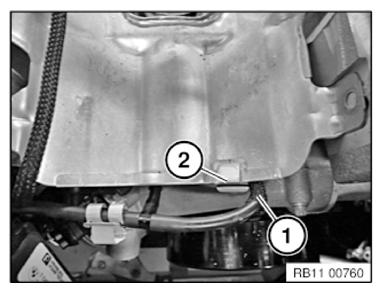

Fig 1: Identifying Vacuum Line And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 5AZ .

Remove heat shield (2) towards top.

Fig 2: Identifying Heat Shield With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 6AZ .

Remove heat shield (2).

Fig 3: Identifying Heat Shield With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
