11 12 112 Replacing both cylinder head gaskets (S63T 0)

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left CYLINDER HEAD
Remove right CYLINDER HEAD

Installation note:

Check spacer bushes (1) for damage and replace if applicable.

The cylinder head gasket (2) for cylinders 1-4 and cylinders 5-8 are identical.

Cylinder head gasket (2) must depending on its styling be correctly positioned on the timing chain case.

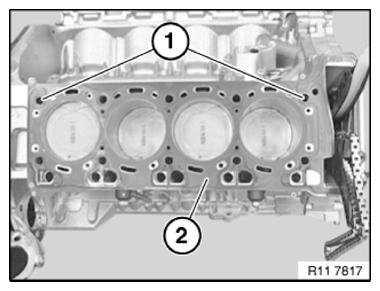

Fig 1: Identifying Cylinder Head Gasket And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Repair gasket (+REP) is 0.3 mm thicker.

Check CYLINDER HEAD for surface evenness.

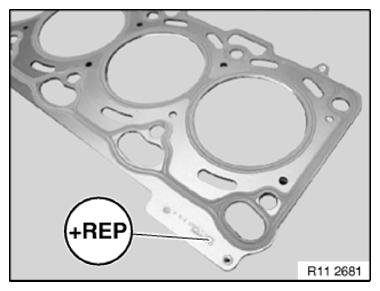

Fig 2: Identifying Cylinder Head Repair Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
