11 12 005 Removing and installing/sealing left cylinder head cover (N63O1)
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Disconnect NEGATIVE TERMINAL .
- Remove ACOUSTIC COVER
- Remove left INTERCOOLER .
- Remove INTAKE SILENCER HOUSING .
- Remove coolant valve for heater feed line.
- Disconnect FUEL DELIVERY LINE .
- Detach wiring harness for injectors and lay to one side.
- Remove IGNITION COILS , cylinders 5-8.
- Remove HIGH PRESSURE PUMP .
- Remove injectors . See 13 53 310 REMOVING AND INSTALLING OR REPLACING AN INJECTOR (N63 B40/B44 O 1) , cylinders 5-8.
- Remove VACUUM PUMP .
- Remove CATALYTIC CONVERTER for cylinders 1-4.
- Remove CATALYTIC CONVERTERS , cylinders 5-8.

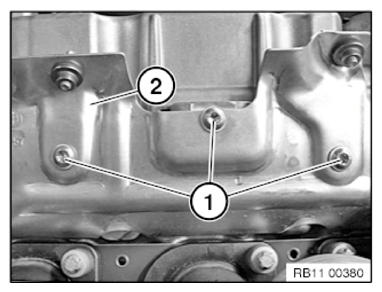

Release screws (1).
Remove heat shield (2).
Tightening torque: 11 65 4AZ . See N63O1 TURBOCHARGER AND CONTROL .

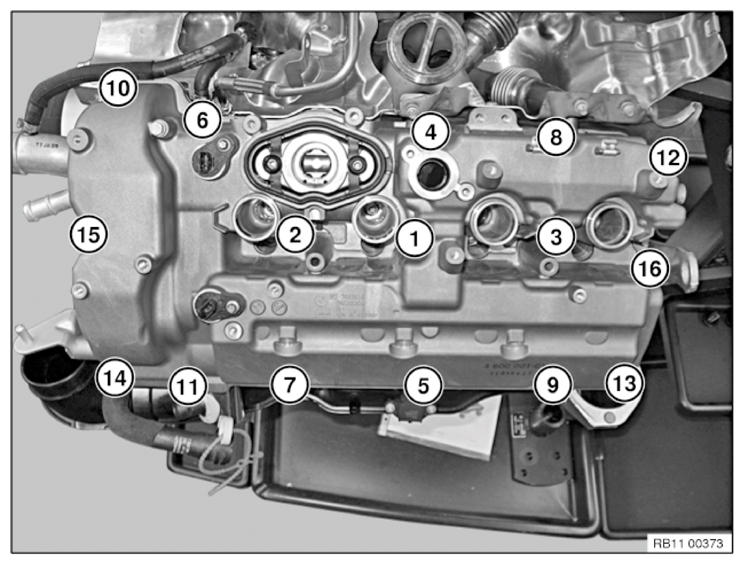

Release screw connections in the sequence (16 to 1).
Remove cylinder head cover.
Illustration S63T1.

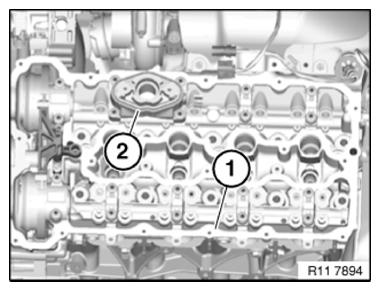

Clean sealing surface (1) with special tool 11 4 470 .
NOTE:
Illustrations shows N63 engine.
Installation note:

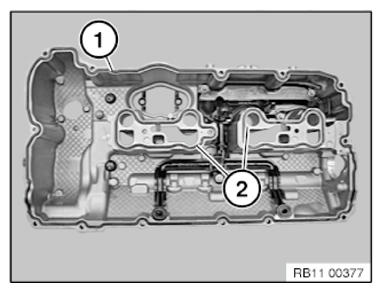

Renew profile seals (1 and 2) of cylinder head cover.
Installation note:
It is important to join screw (15 and 16) for exact positioning of the camshaft sensors.
Mount cylinder head covers.
Position screw (15 and 16).
Release screws again by a 90° turn.
Secure cylinder head cover in sequence (1 to 17) in two work steps.
Tightening torque 11 12 3AZ .
Assemble engine.
