67 13 001 Replacing drive for electrically operated left or right door mirror (M5)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS FOR REARVIEW MIRROR .

Release screws (1).

Remove drive for electrically operated door mirror (2) in direction of arrow from mirror housing (3).

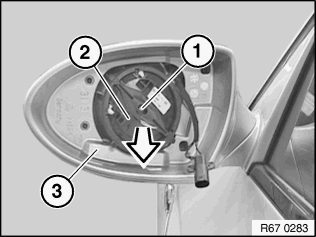

Fig 1: Identifying Drive For Electrically Operated Door Mirror, Mirror Housing, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure pin housing (2) is correctly seated in plug housing (3).

Fit drive for electrically operated door mirror (1) so that locators (4) slide in guides (5).

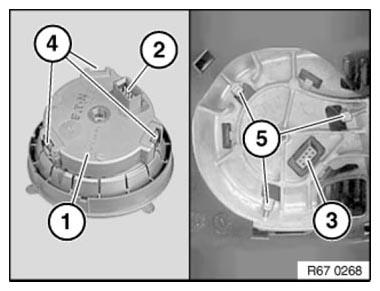

Fig 2: Identifying Electrically Operated Door Mirror, Pin Housing, Plug Housing And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
