51 16 026 Replacing mirror glass

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury!

Move mirror glass with hand carefully and slowly.

If mirror glass is damaged:

Wear protective goggles and cut-proof gloves.

Risk of injury by flaking-off glass splinters.

IMPORTANT:

Risk of damage!

Bring door mirror to room temperature to prevent catches from breaking off.

Press mirror glass (1) on side vehicle by hand to full extent.

NOTE:

Secure mirror glass (1) against falling out.

Unclip mirror glass (1) all around from outer side with special tool 00 9 317 .

Unlock and disconnect associated plug connections, remove mirror glass (1).

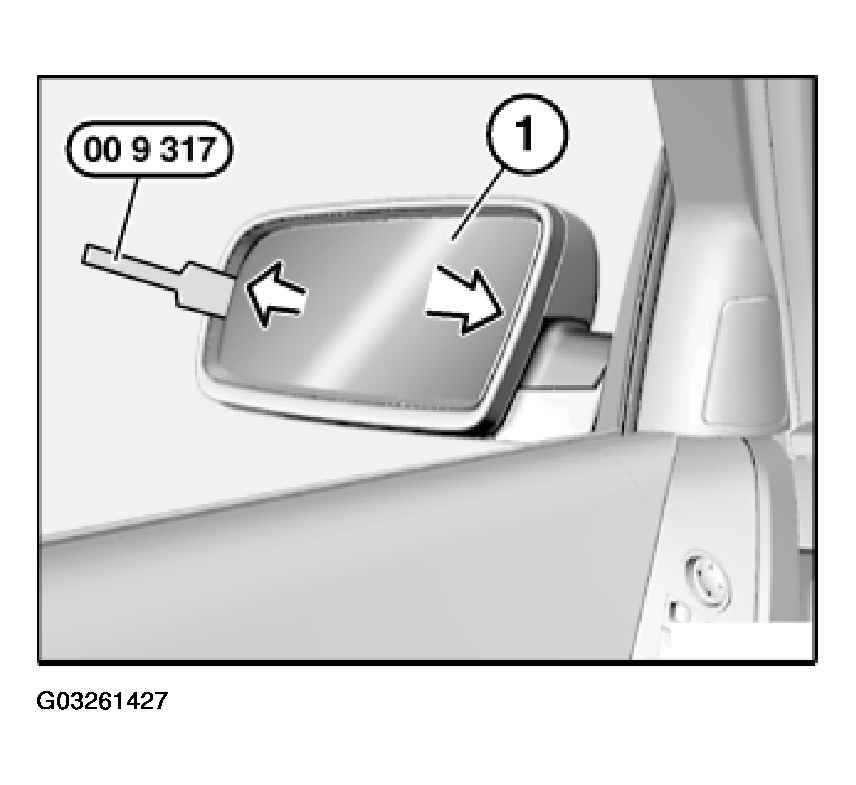

Fig 1: Removing Mirror Glass Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) must not be damaged.

Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.

Ensure correct locking.

Make sure mirror adjusting drive functions correctly.

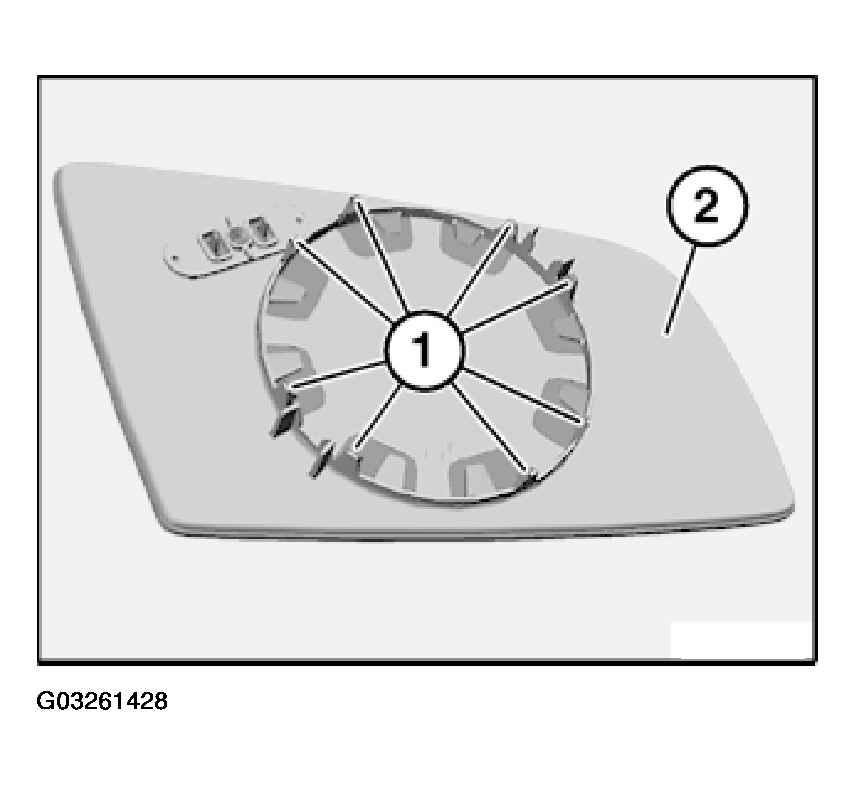

Fig 2: Installing Mirror Glass With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
