67 32 610 Replacing fan for backrest on front seat (comfort seat)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

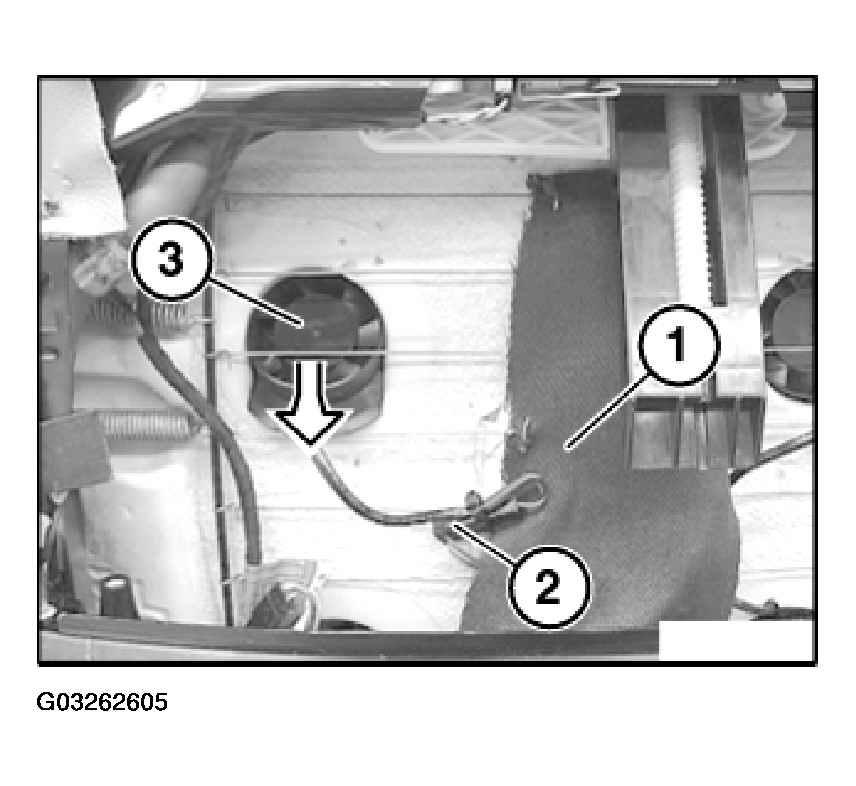

Lay felt (1) slightly to one side and disconnect plug connection (2). If necessary, cut through cable tie.
Installation:
Ensure correct cable routing.
If necessary, raise load-area net in working area.
Feed fan for backrest (3) in direction of arrow out of cushion section and remove.
