52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest (comfort)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip springs (1) on left and right.

Remove upper rear panel (3) upwards out of guide (2).

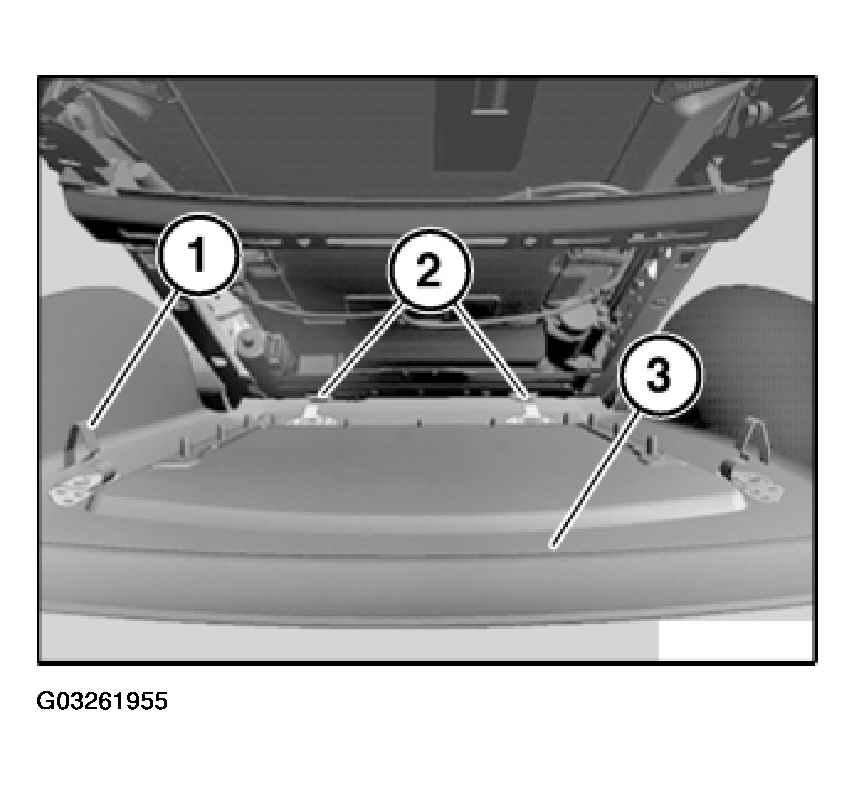

Fig 1: Removing Upper Rear Panel Upwards Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

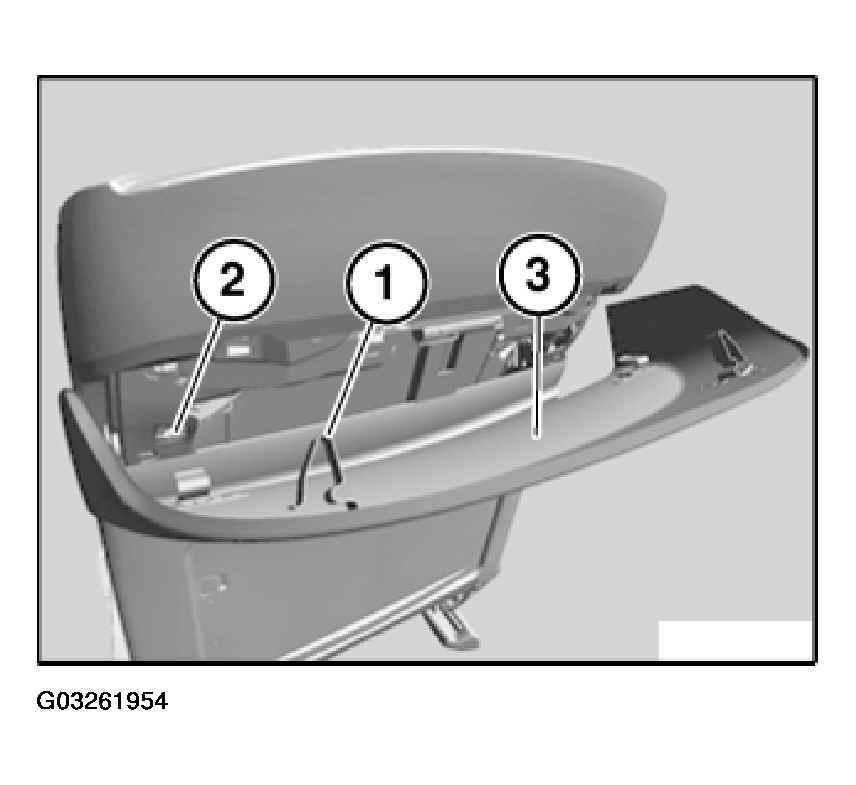

Fig 2: Removing Lower Rear Panel Upwards Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
