51 16 200 Removing and installing storage compartment

Necessary preliminary tasks:

• Remove TRIM FOR STORAGE COMPARTMENT .
• Remove REAR COMPARTMENT FRESH AIR GRILLE .
• If necessary, remove USB/AUX CONNECTING SOCKET

Version with rear console:

• Remove REAR CONSOLE

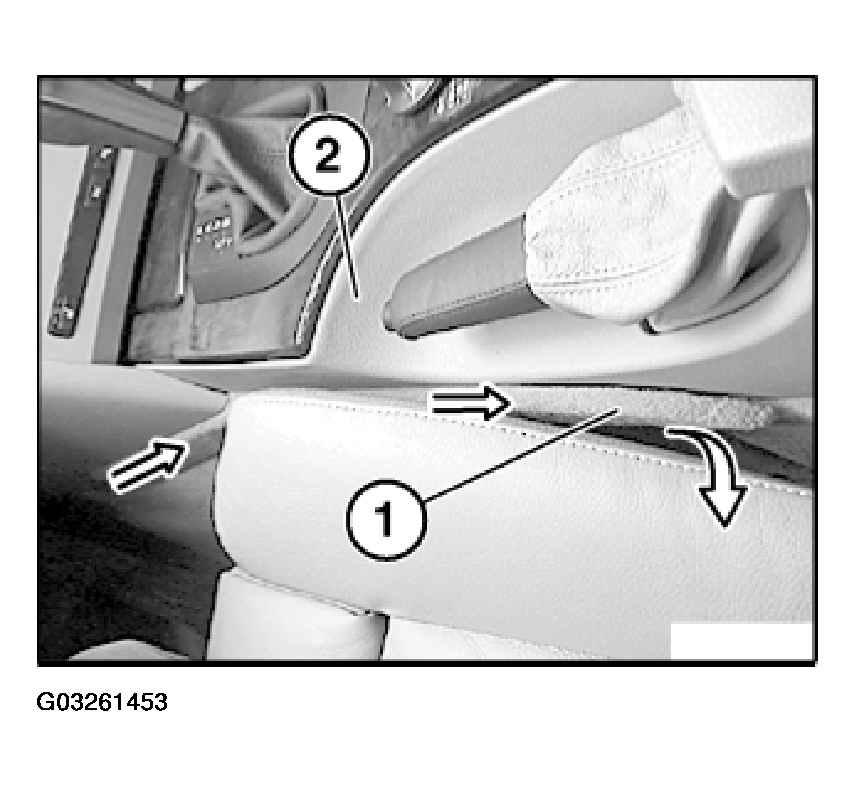

Lever out trims (1) on left/right at rear end and pull out in direction of arrow.

Fig 1: Removing Trims On Left/Right At Rear End

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

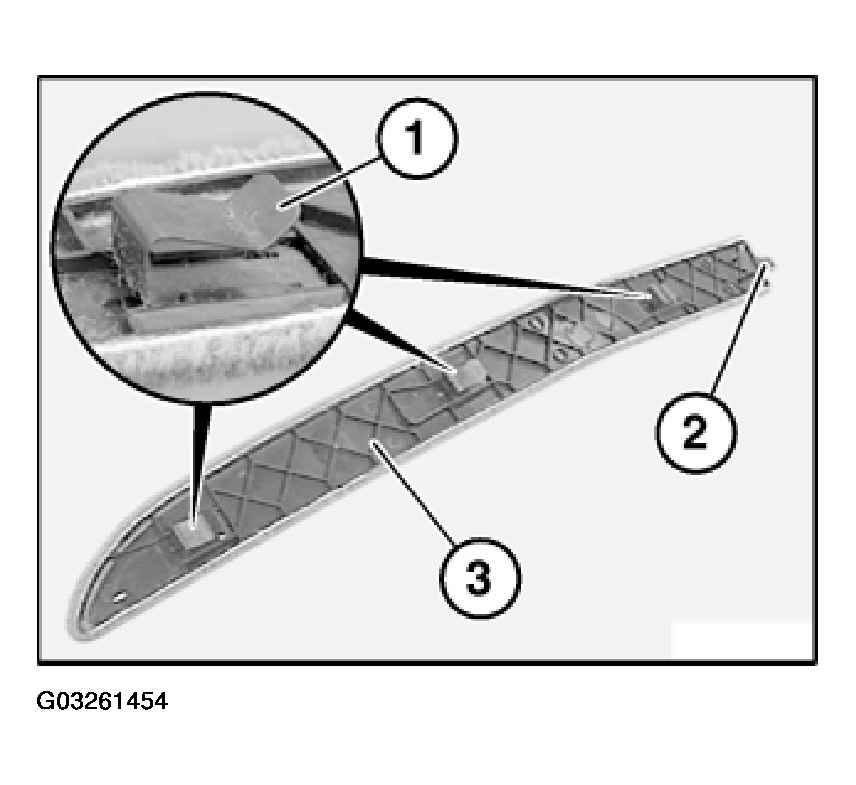

Retainers (1) and guide (2) on trim (3) must not be damaged or missing.

Fig 2: Identifying Retainers And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

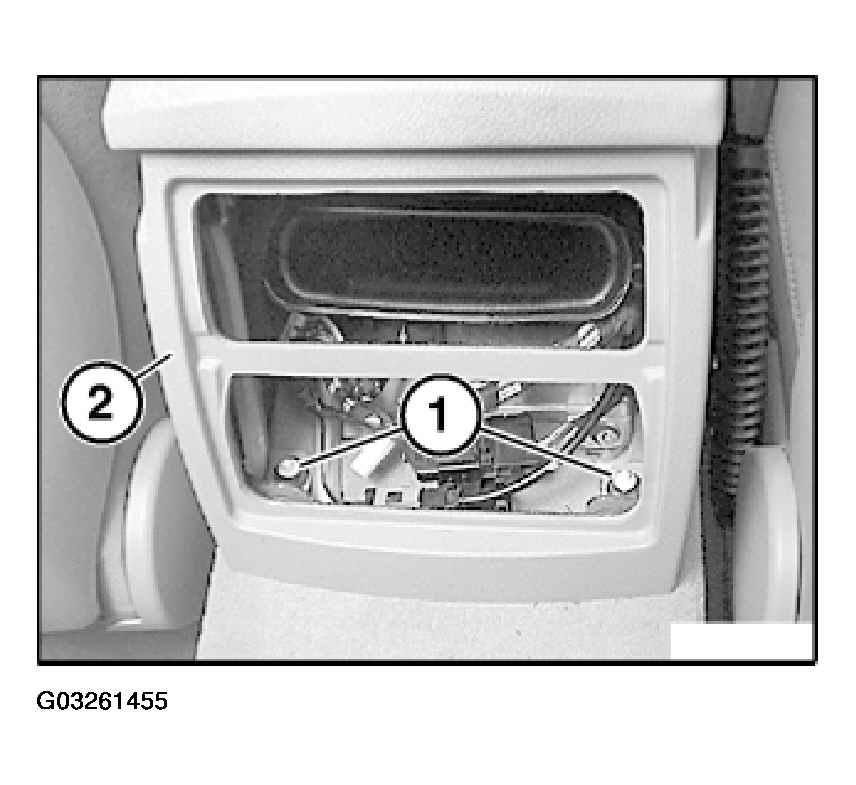

Release screws (1) on storage compartment (2).

If necessary, unlock plug connections.

Fig 3: Removing Screws On Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

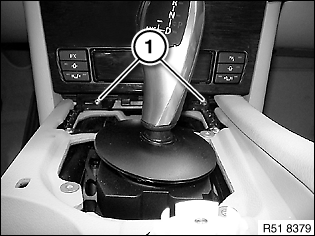

Version after 03/2007:

Release screws (1).

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

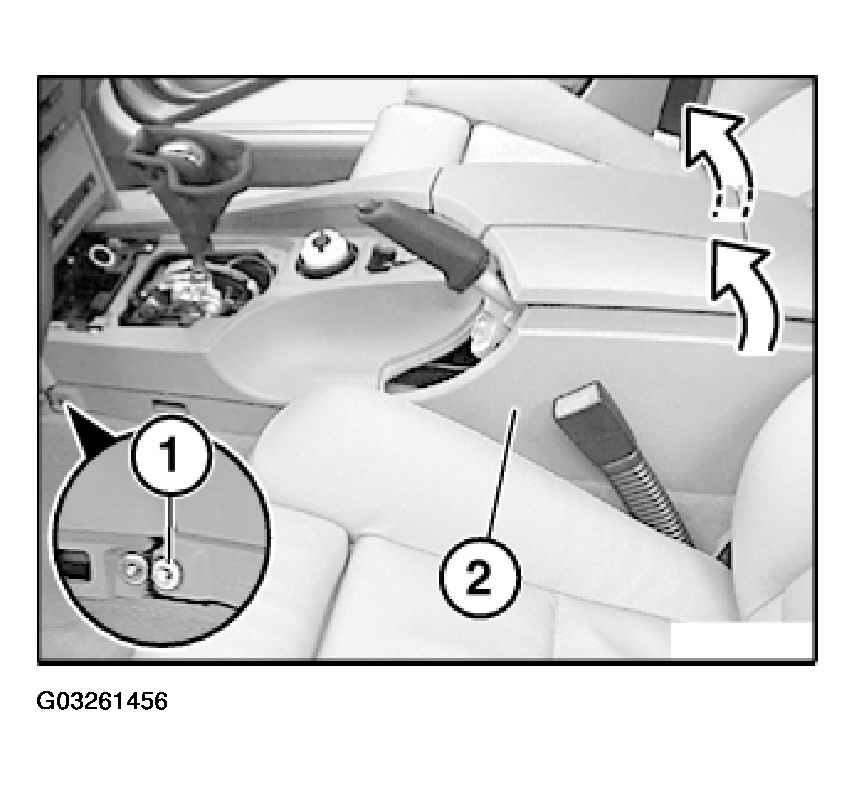

Remove gaiter for handbrake lever.

Release screw (1) on left/right.

Raise storage compartment (2) at rear and disconnect plug connections under storage compartment (2).

Feed out storage compartment (2) in direction of arrow over handbrake lever and remove towards rear.

Fig 5: Removing Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Build date up to 03/2007:

Installation:

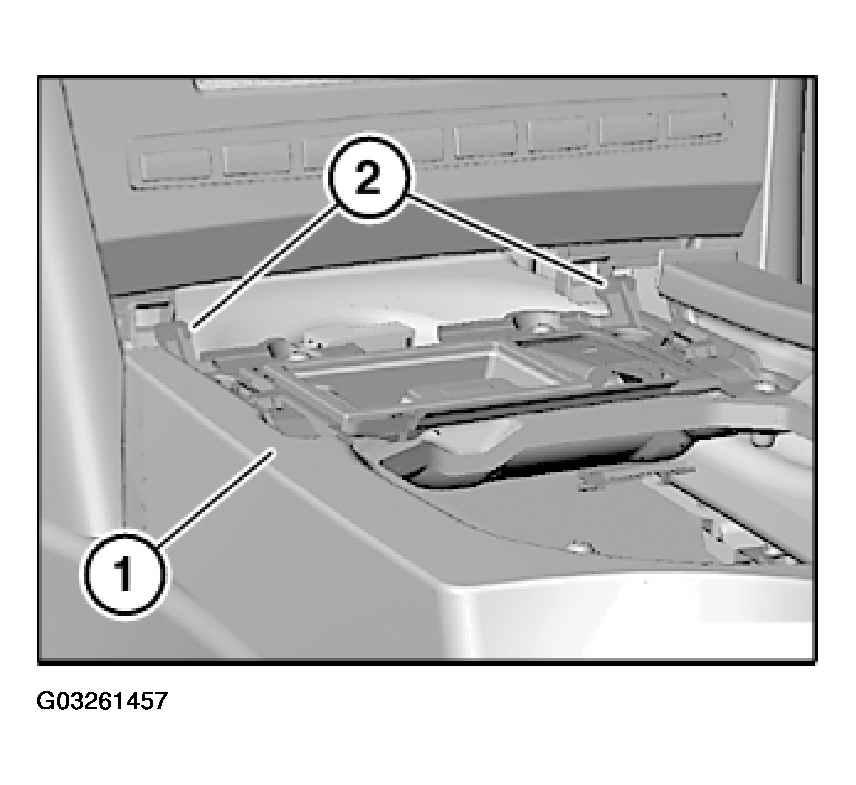

Do not damage guides (2) when feeding storage compartment (1) in.

Fig 6: Identifying Guides And Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
