51 13 035 Removing and installing / replacing grille on side panel on left or right (M5)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL ARCH COVER on left or right.

Compress clips (1) and slide grille (2) outwards slightly.

Compress clips (3) and remove grille (2) outwards.

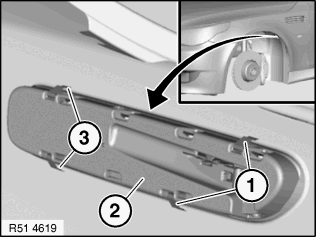

Fig 1: Identifying Grille And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert grille (1) straight in side panel.

Replacement:

If necessary, remove emblem (2).

Fig 2: Identifying Grille And Emblem

Courtesy of BMW OF NORTH AMERICA, INC.
