51 71 040 Removing and installing/replacing front left or right wheel arch cover

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Risk of mixing up

Make sure the various screws are fitted in the correct locations.

Necessary preliminary tasks:

If necessary, remove left/right FRONT WHEEL

Release screws (1) and (3).

Unscrew nuts (2).

Release screws (6).

If necessary, release screws (7).

If necessary, release expander rivets (4).

Carefully feed out front wheel arch cover (5) towards top.

Installation:

Make sure front wheel arch trim is correctly seated.

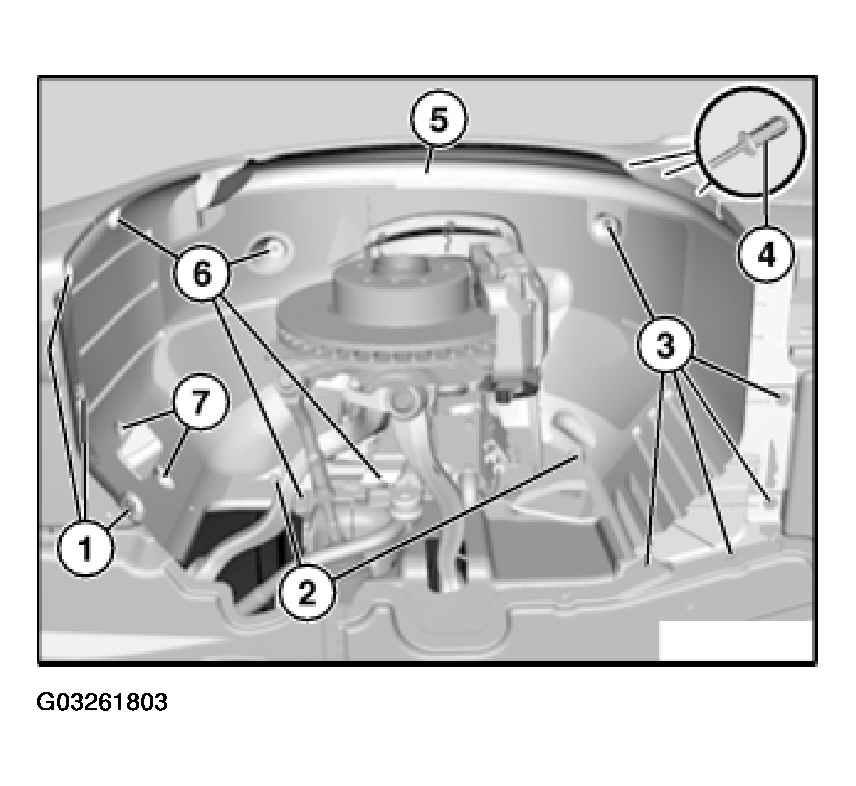

Fig 1: Removing Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Right side only:

If necessary, modify BOTTOM RIGHT WHEEL ARCH .
